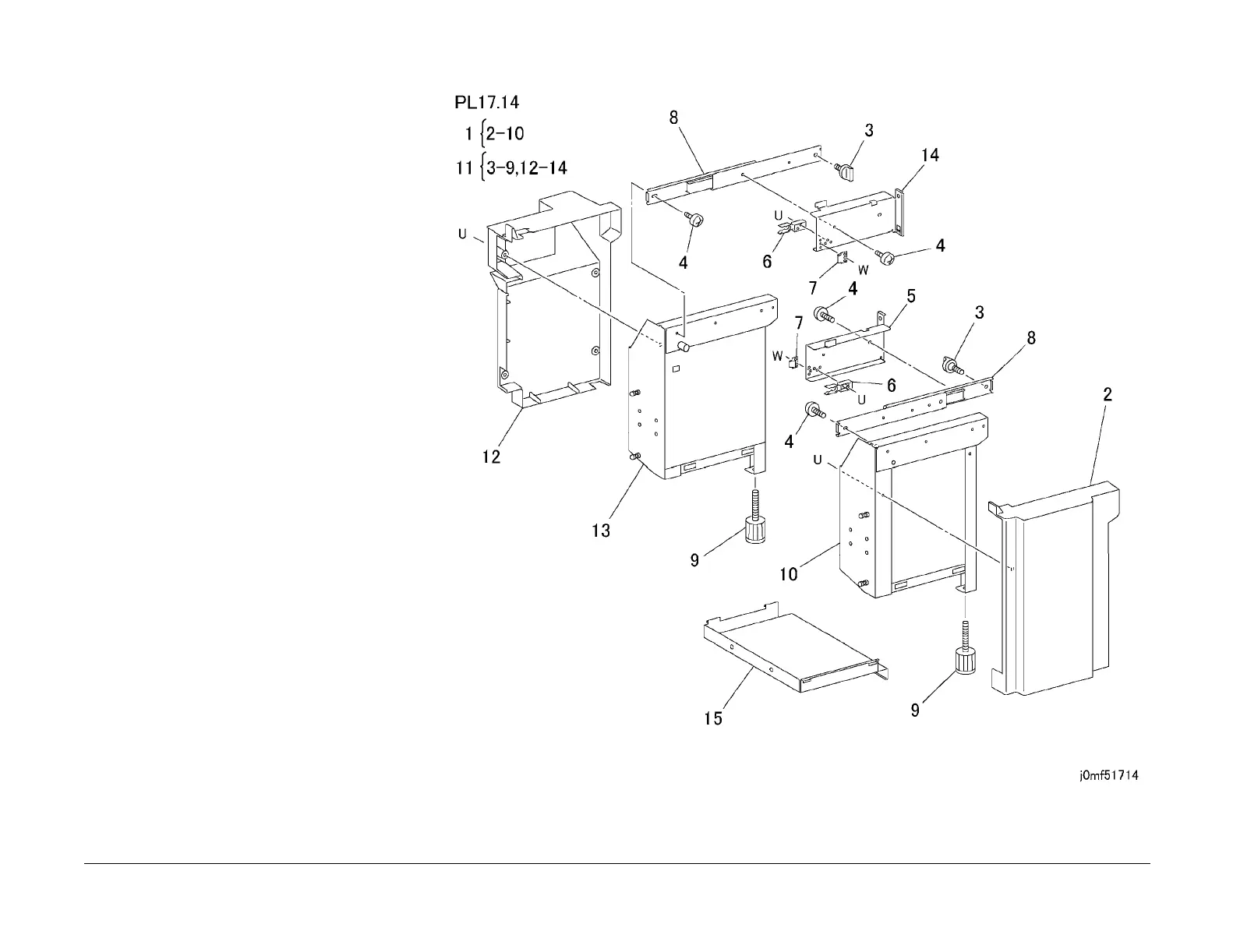

PL 17.14 Rack Assembly
Item Part Description
1 802K36660 Front Rack Assembly
2 – Front Cover (P/O PL 17.14 Item 1)
3 003K12090 Knob Screw
4 – Screw (P/O PL 17.14 Item 1,PL
17.14 Item 11)
5 – Bracket (P/O PL 17.14 Item 1,PL
17.14 Item 11)
6 – Stop (P/O PL 17.14 Item 1,PL
17.14 Item 11)
7 – Spring Plate (P/O PL 17.14 Item
1,PL 17.14 Item 11)
8 001E60050 Rail
9 017E94660 Foot
10 – Front Rack (P/O PL 17.14 Item 1)
11 802K36670 Rear Rack Assembly
12 – Rear Cover (P/O PL 17.14 Item 11)
13 – Rear Rack (P/O PL 17.14 Item 11)
14 – Bracket (P/O PL 17.14 Item 11)
15 015E77040 Bottom Plate
To Next Page
