09/03
4-115
DC 3535/2240/1632, WC M24
REP 12.9, REP 12.10
Repairs and Adjustments
Initial issue
REP 12.9 Belt
Parts List on PL 17.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Rear Cover (PL 17.5)
2. Remove the Cam Bracket (REP 12.18).
3. Remove the Belt (Figure 1).

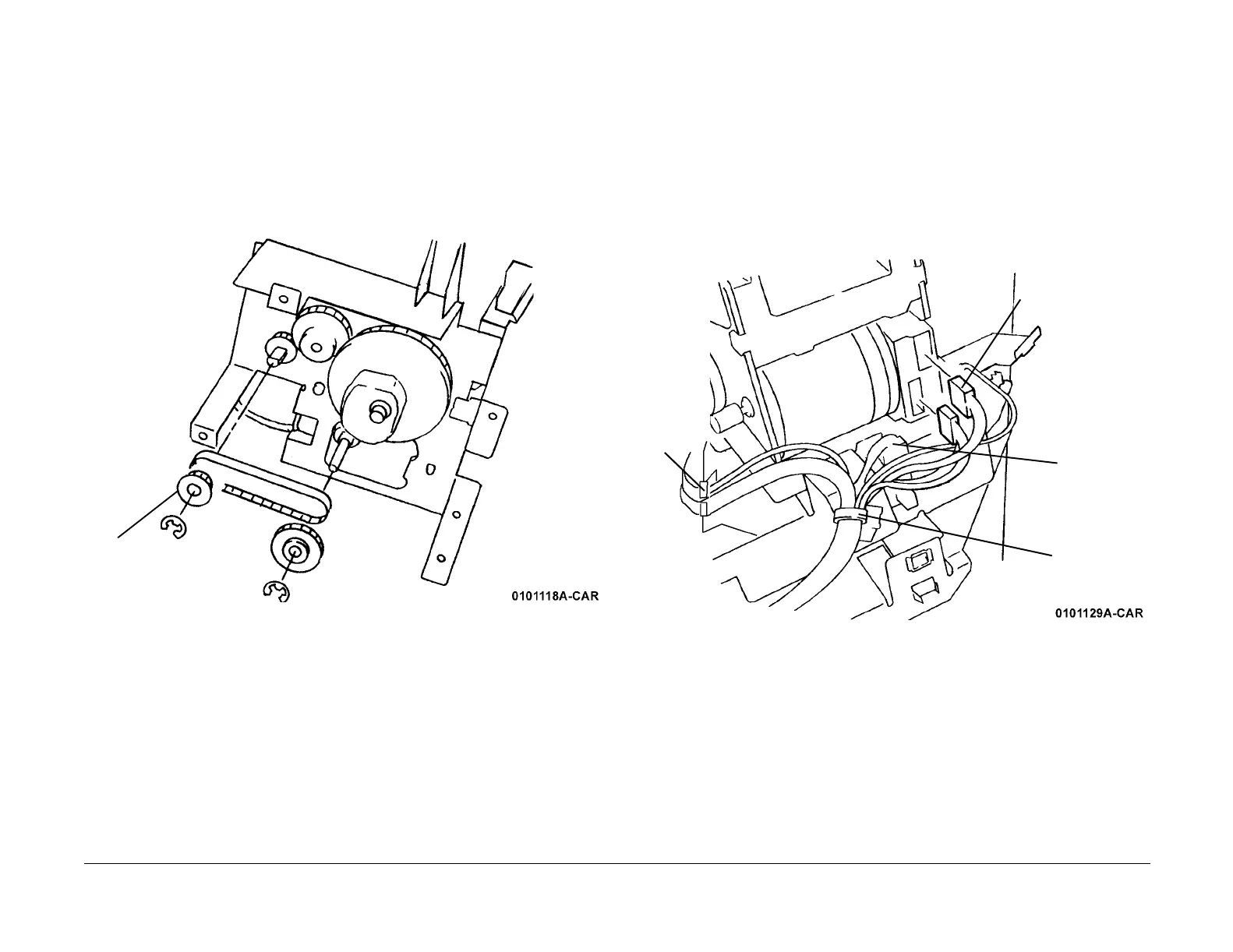

Figure 1 Removing the Belt
REP 12.10 Rail
Parts List on PL 17.9
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the following:
a. Front Cover (PL 17.5)
b. Rear Cover (PL 17.5)
2. Remove Harness from Stapler (Figure 1).
Figure 1 Removing Harness from Stapler
Remove
Clip, Pulley,
and Belt
1
Disconnect Stapler
Connectors (2)
2
Disconnect
Sensor
3
Disconnect
Harness Clip
from Frame
4
Disconnect
Harness
from Motor
and remove
Harness
from Guide
To Next Page
