Xerox DocuColor 2240 Service Manual

09/03
5-49
DC 3535/2240/1632, WC M24
PL 13.1
Parts List
Initial issue

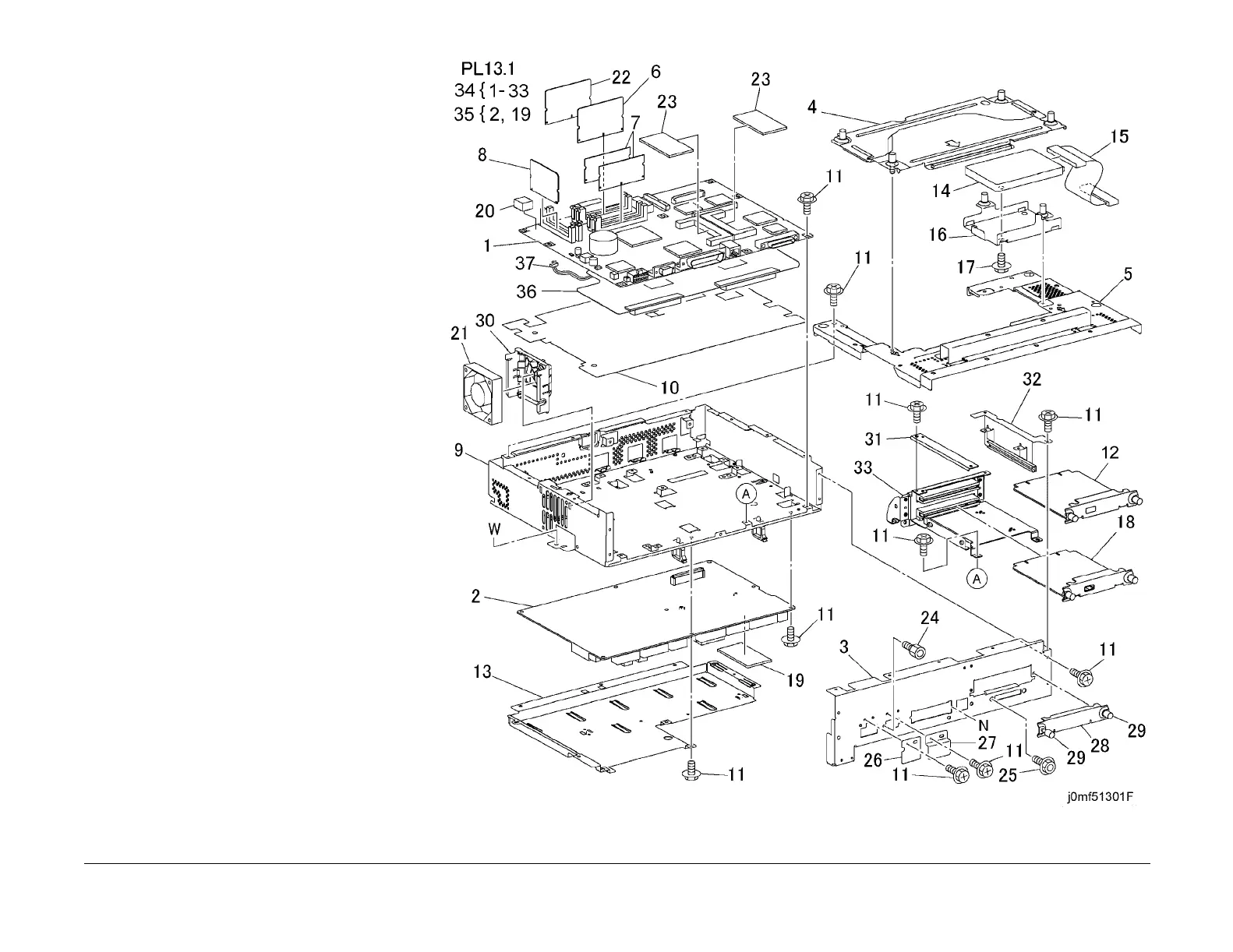

PL 13.1 ESS
Item Part Description
1 160K74231 ESS PWB (DC2240/1632/WC24)
(REP 1.12)
– 160K90570 ESS PWB (DC3535) (REP 1.12)
2 160K99070 MCU PWB (WC24) (REP 1.2)
– – MCU PWB (P/O PL 13.1 Item 35)
(DC2240/1632) (REP 1.2)
– 160K91963 MCU PWB (DC3535) (REP 1.2)
3 – Rear Panel (Not Spared)
4 – DIMM Cover (Not Spared)
5 – ESS Top Cover (Not Spared)
6 537K67710 MF ESS ROM (PCL1) (WC24)
– 537K67720 MF ESS ROM (PCL2) (WC24)
– 537K64436 PS-2 ROM (DC2240/1632) (W/Tag
P6) (REP 1.14)
7 133K22400 SDRAM 256MB (DC3535/WC24)
8 160K82224 ESS NVM PWB (REP 1.13)
9 – ESS Chassis (Not Spared)
10 – Seal (Not Spared)
11 – Screw (Not Spared)
12 160K82460 Fax Interface (I/F) PWB (WC24)
13 – Cover (Not Spared)
14 121K27751 HDD (DC2240/1632/WC24) (ADJ
9.8)
– 121K30550 HDD (DC3535) (ADJ 9.8)
15 962K08641 HDD Harness
(DC2240/1632/WC24)
– 962K14080 HDD Harness (DC3535)
16 – Bracket (Not Spared)
17 – Screw (Not Spared)
18 160K88080 Token Ring PWB
(DC2240/1632/WC24)
19 160K76651 MCU NVM PWB (REP 1.15)
20 537K61180 MAC ROM
21 127K32920 ESS Fan
22 537K64426 PS-1 ROM (DC2240/1632) (W/Tag
P6) (REP 1.14)
– 537K62671 PS-1 ROM (Optional) (DC3535)
(REP 1.14)
– 537K64252 PS-1 ROM (DC3535) (REP 1.14)
23 133K21200 SDRAM 128MB
24 – Screw (Not Spared)
25 – Screw (Not Spared)
26 – Blind Panel (Not Spared)
27 – Blind Panel (Not Spared)
28 – Option Panel (Not Spared)
29 – Screw (Not Spared)
30 – Fan Guard (Not Spared)
31 – Support Bracket (Not Spared)
32 – Side Support (Not Spared)
33 101K37940 PCI Riser PWB (WC24)
34 – ESS Chassis (Not Spared)
35 160K91716 MCU PWB Assembly
(DC2240/1632) (REP 1.2)
36 160K89980 VSEL PWB (DC3535)
37 962K10230 VSEL Harness (DC3535)
