09/03
4-66
DC 3535/2240/1632, WC M24
REP 7.15, REP 7.16
Initial issue
Repairs and Adjustments
REP 7.15 Tray 4 (3TM)
Parts List on PL 15.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Pull out Tray 4.
2. Lift end of tray to disengage lock on rail (not visible) and remove tray.
REP 7.16 Tray 2 Feeder (3TM)
Parts List on PL 15.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Pull out Tray 2.
2. Open the Left Cover (PL 15.10) and remove the Left Lower Cover (REP 14.12).
3. Remove the Tray 2 Feeder (Figure 1).

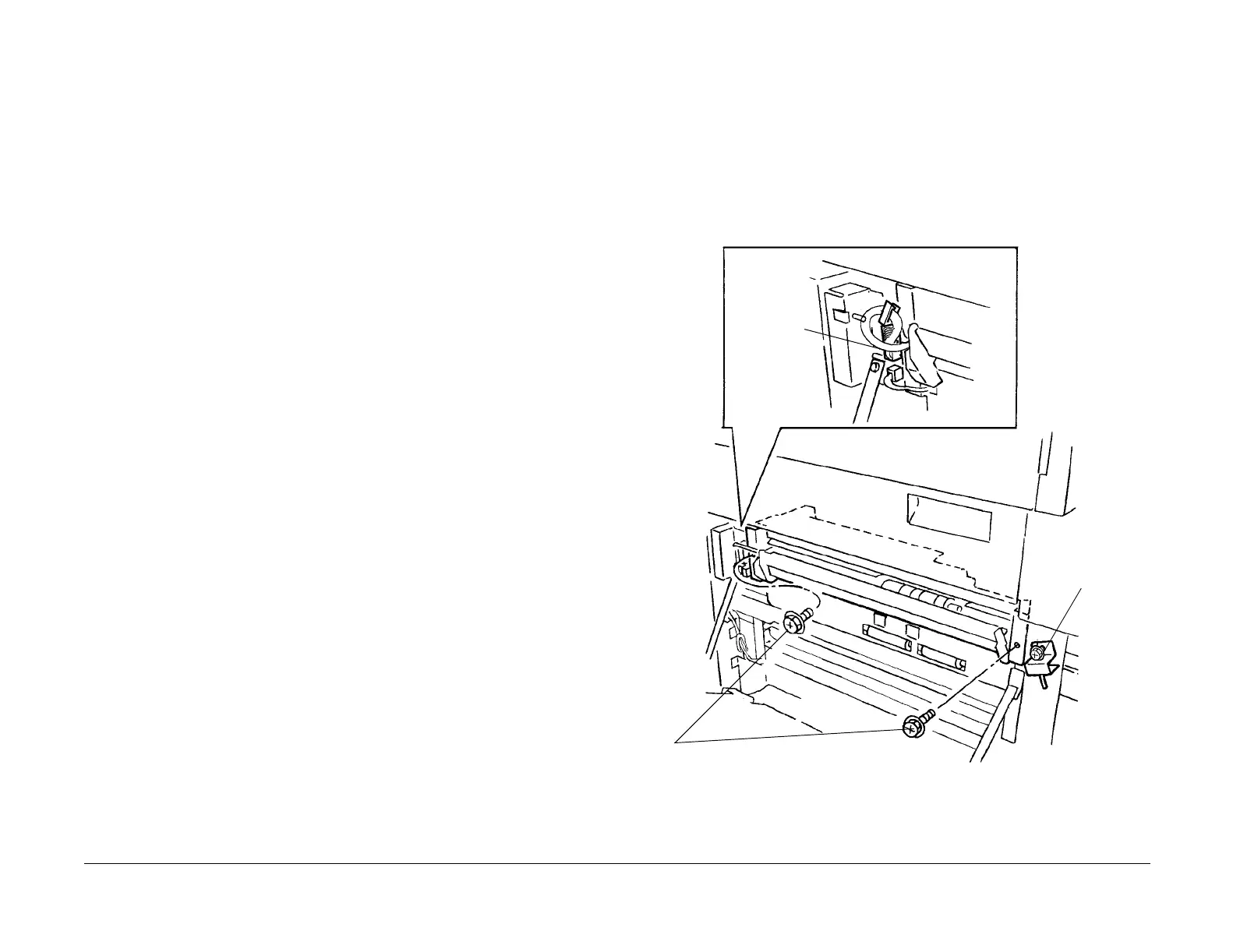

Figure 1 Removing the Tray 2 Feeder
1
Loosen Screw
and move the
Bracket
2
Release the
Wire Harness
from the Clamp
and discon-
nect the P/J
3
Remove Screws (2) and
the Feeder
To Next Page
