09/03
5-43
DC 3535/2240/1632, WC M24
PL 10.2
Parts List
Initial issue

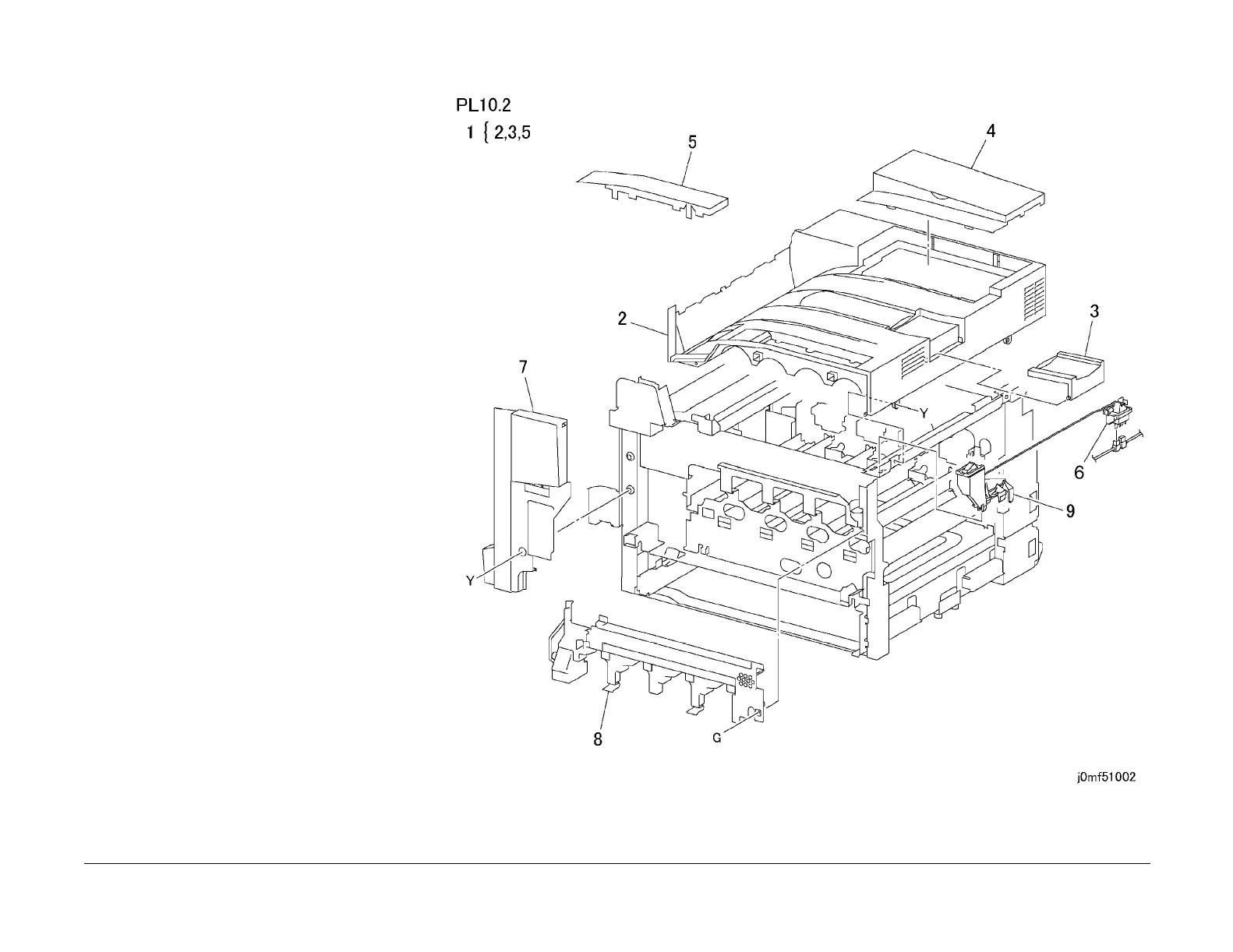

PL 10.2 Top Covers and Inner Covers
Item Part Description
1 802K29611 Top Cover Assembly
(DC2240/1632) (REP 14.1)
– 802K49801 Top Cover Assembly (DC3535)
(REP 14.1)
– 802K49800 Top Cover Assembly (WC24) (REP
14.1)
2 – Top Cover (P/O PL 10.2 Item 1)
3 – Stop (P/O PL 10.2 Item 1)
4 802E12400 Connector Cover
5 – Panel (P/O PL 10.2 Item 1)
6 110K11211 Main Power Switch
7 802E12430 Fuser Cover (REP 14.8)
8 802K46070 Dispenser Cover (REP 9.6)
9 012K94260 Link
To Next Page
