09/03
5-34
DC 3535/2240/1632, WC M24
PL 6.2
Initial issue
Parts List

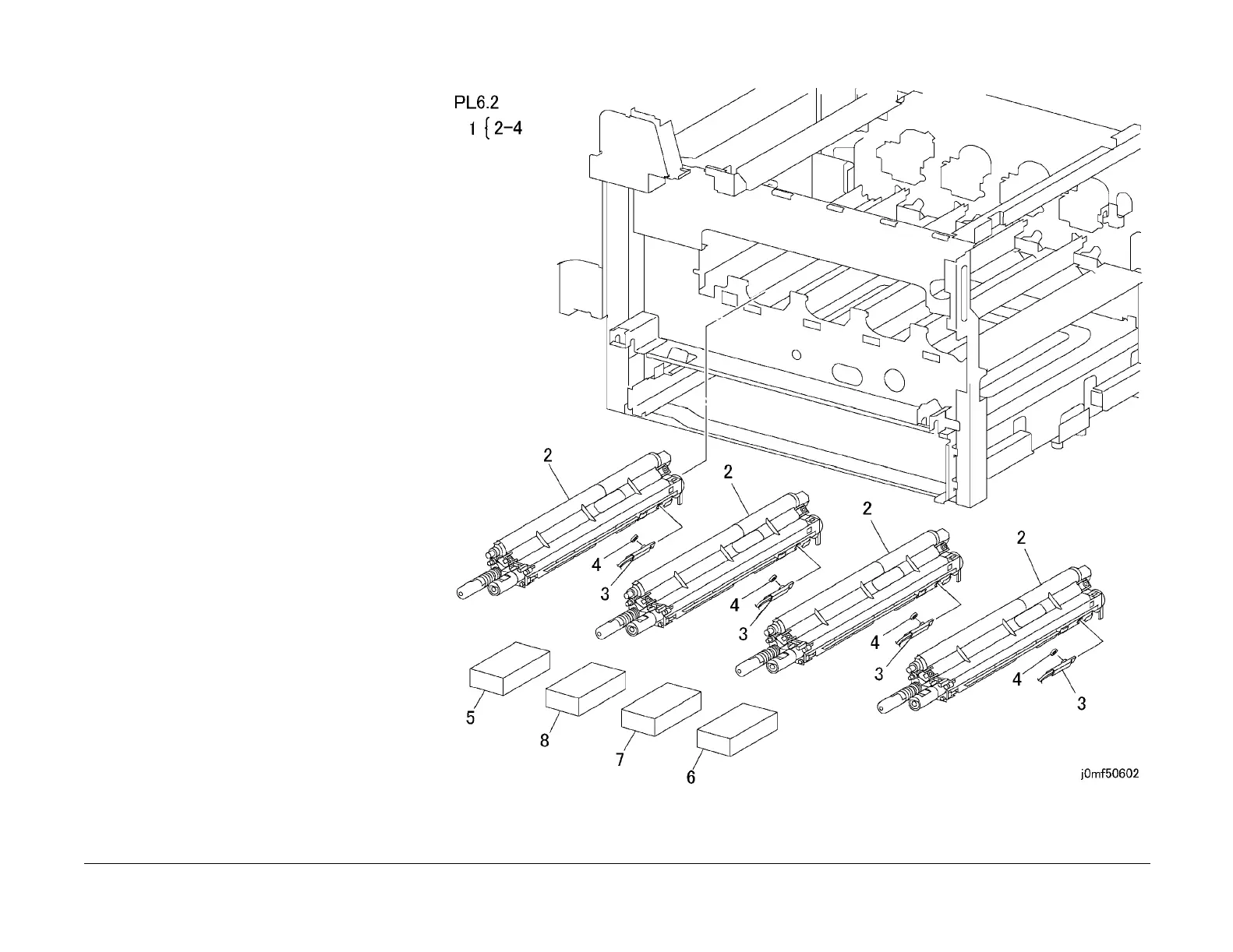

PL 6.2 Developer Unit: 2 of 2
Item Part Description
1 802K28891 Developer Housing (Y, M, K, C)
(REP 9.9,ADJ 9.1)
2 – Developer Housing (P/O PL 6.2
Item 1)
3 130K63000 ATC Sensor (Y, M, K, C) (REP
9.26,ADJ 9.1)
4 035E65010 Seal
5 604K07520 Developer (K) (REP 9.10,ADJ 9.1)
6 604K07490 Developer (Y) (REP 9.10,ADJ 9.1)
7 604K07500 Developer (M) (REP 9.10,ADJ 9.1)
8 604K07510 Developer (C) (REP 9.10,ADJ 9.1)
