09/03
4-42
DC 3535/2240/1632, WC M24
REP 6.2
Initial issue
Repairs and Adjustments
REP 6.2 Platen Glass
Parts List on PL 18.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open DADF.
2. Remove Platen Glass (Figure 1).

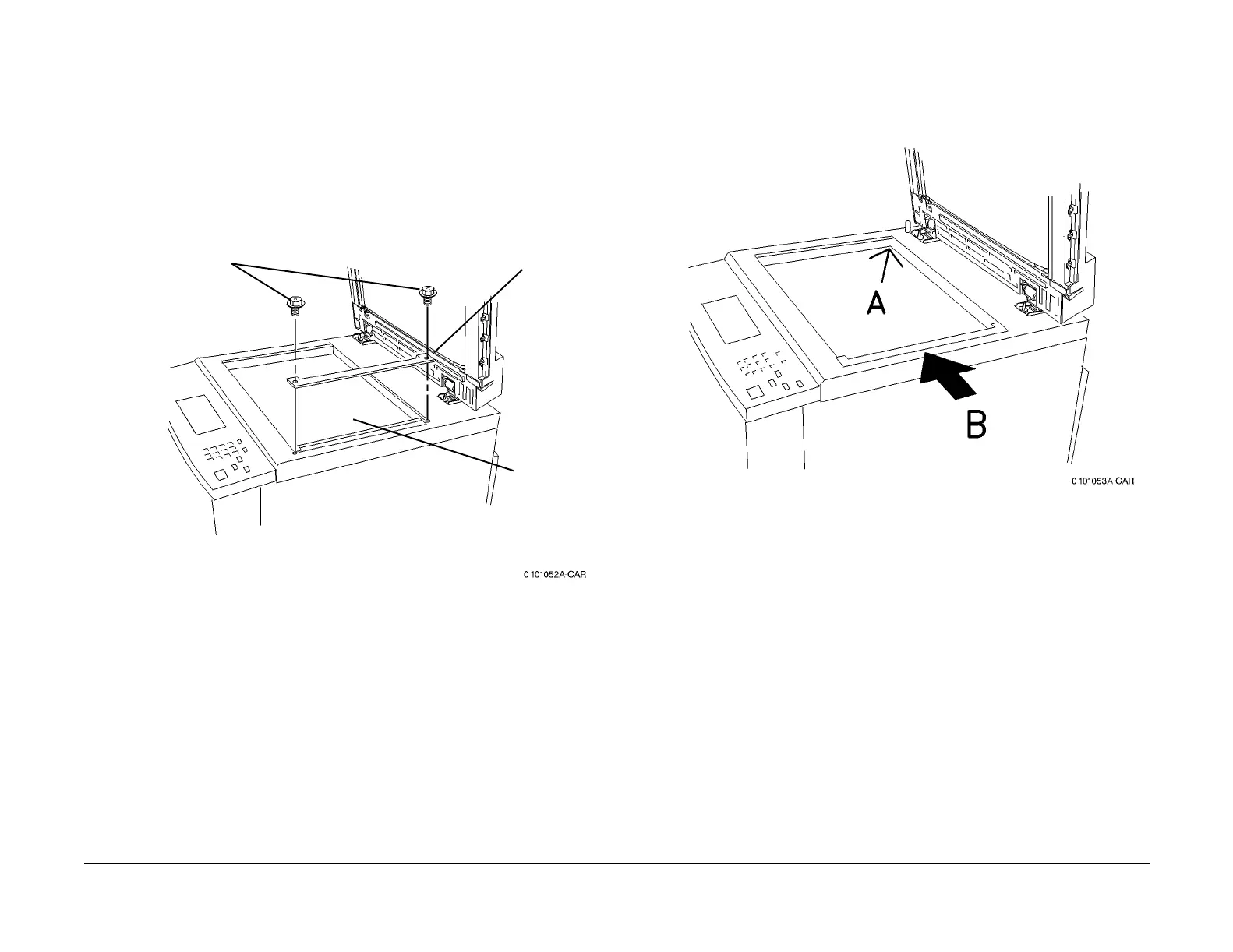

Figure 1 Removing Platen Glass
Replacement
Press Platen Glass in direction of arrow A; Press Right Side Plate in direction of arrow B (Fig-
ure 2).
Figure 2 Positioning Platen Glass
1
Remove
screws (2)
2
Remove
Guide
3
Remove
Platen
Glass
To Next Page
