09/03
4-105
DC 3535/2240/1632, WC M24
REP 12.3
Repairs and Adjustments
Initial issue
REP 12.3 Entrance Sensor and Top Tray Full Sensor
Parts List on PL 17.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the H Transport Assembly (REP 12.1).
2. Remove the Entrance Upper Cover (REP 12.17).
3. Remove the Cover (Figure 1).

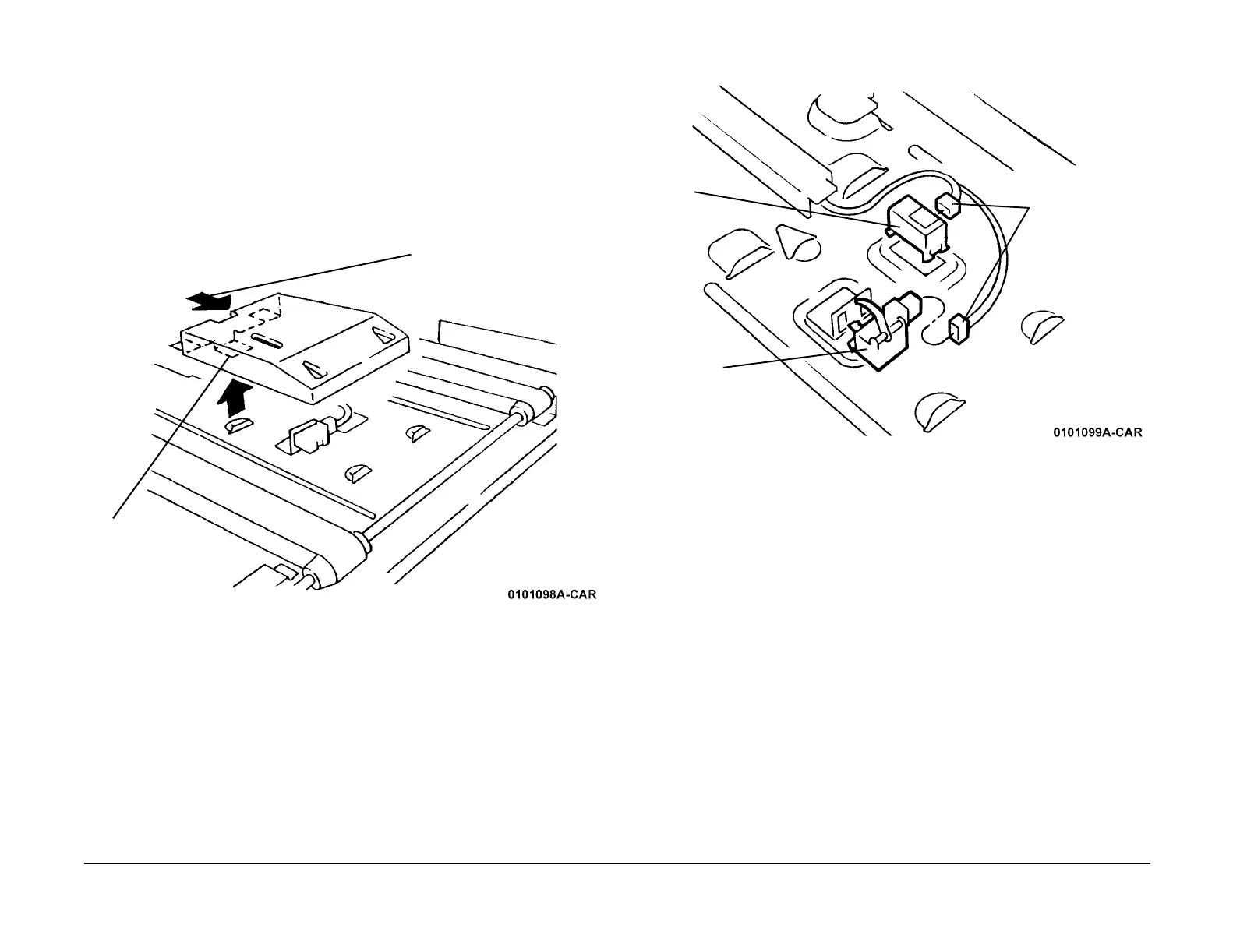

Figure 1 Removing the Cover
4. Remove the H Transport Entrance Sensor or Top Tray Full Sensor (Figure 2).
Figure 2 Removing Entrance Sensor and Top Tray Full Sensor
1
Push up on the
release tab
2
Move the Cover as
indicated to remove it
Entrance
Sensor
Top Tray Full
Sensor
Disconnect
and Remove
Sensors
To Next Page
