9-924 Waste Toner Cartridge Full
The Waste Toner Cartridge is full.
Initial Actions
Replace the Waste Toner Cartridge. Check the Full Toner Sensor for contaminants.
Procedure
If the problem persists, go to the 9-358 RAP.
9-925 Waste Toner Cartridge Not Set
The Waste Toner Cartridge was not installed correctly
Initial Actions
Ensure that the Waste Toner Cartridge is installed correctly.
Procedure
There is +5VDC from P/J535-A3 on the I/F PWB to GND.
YN
There is +5VDC from FS135 on the Waste Toner Cartridge Interlock Switch to GND.
YN
Go to Figure 1. Check the wire from P/J511 on the +5VDC LVPS to FS135 on the
Waste Toner Cartridge Interlock Switch.
There is +5VDC from FS134 on the Waste Toner Cartridge Interlock Switch to GND.
YN
Replace the Waste Toner Cartridge Interlock Switch (PL 4.1).
Go to Figure 1. Check the wire between P/J511 on the +5VDC LVPS and FS134 on the
Waste Toner Cartridge Interlock Switch and the I/F PWB P/J535-A3 for an open circuit or
poor contact.
Check the connector P410 between the I/F PWB and the MCU PWB. If no problems are
found, replace the MCU PWB. (PL 13.1).
If the problem persists, replace the I/F PWB. (PL 9.1).

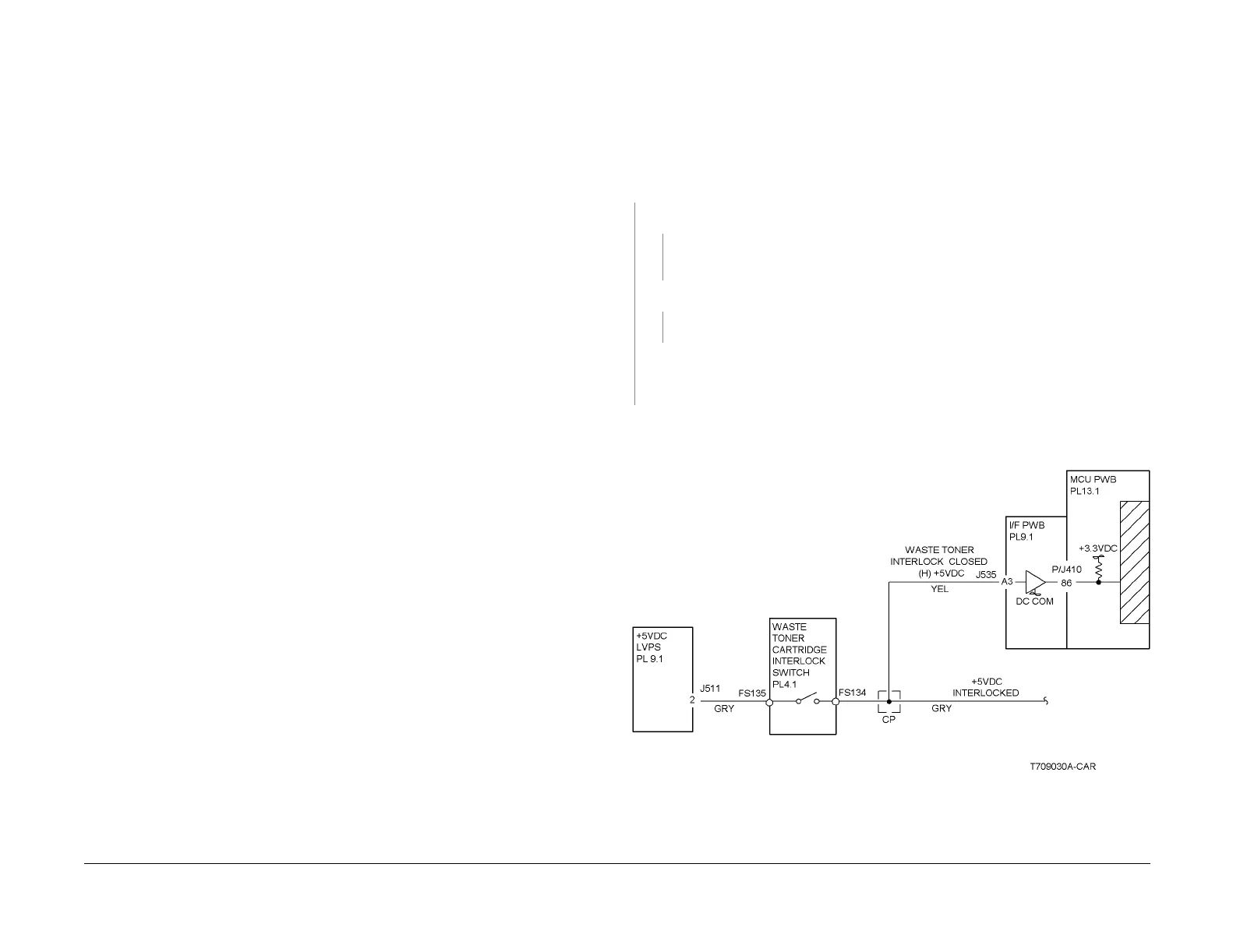

Figure 1 9-925 RAP Circuit Diagram
