Xerox DocuColor 2240 Service Manual

09/03
5-105
DC 3535/2240/1632, WC M24
PL 20.8
Parts List
Initial issue

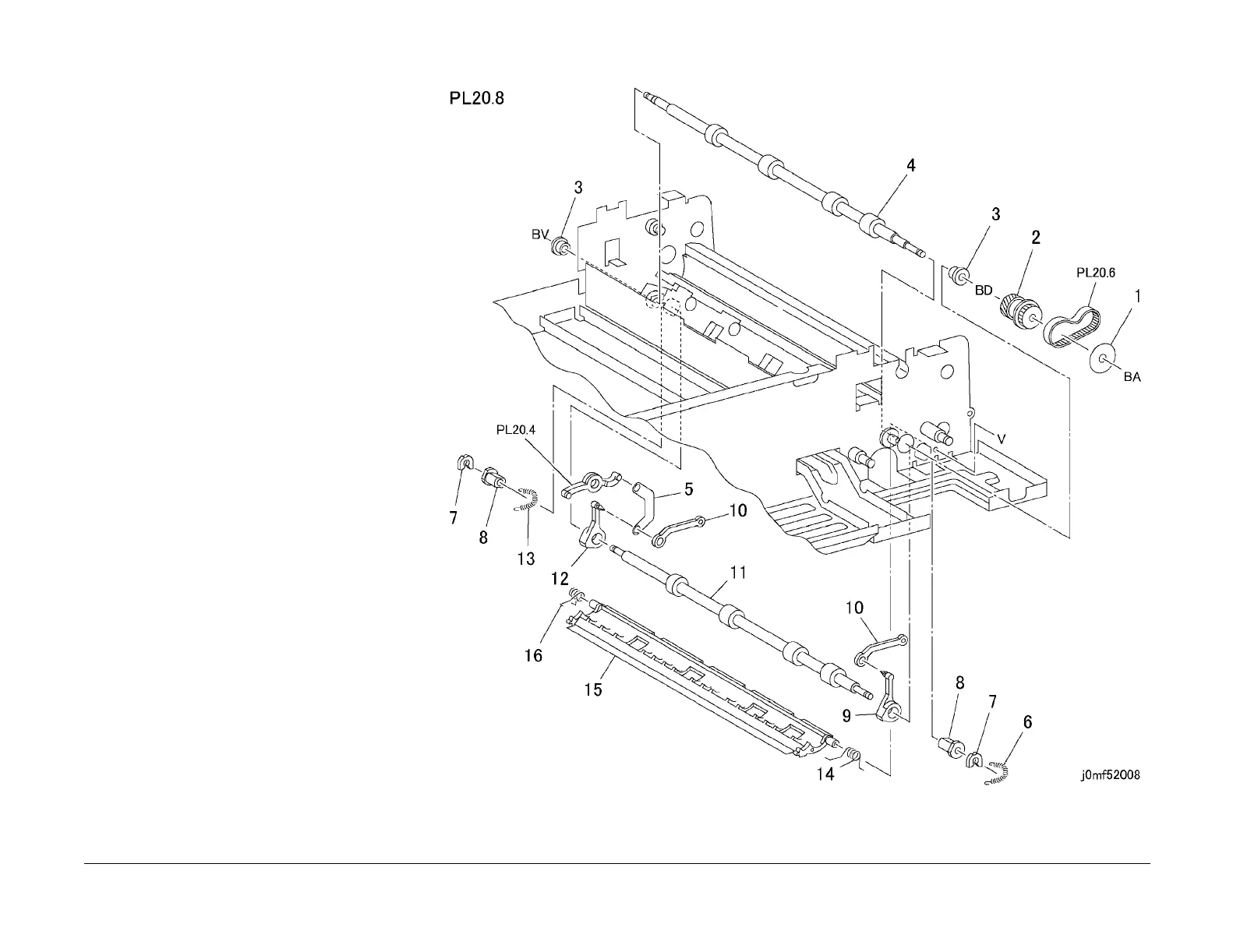

PL 20.8 Registration Roll
Item Part Description
1 – Spacer (Not Spared)
2 007K81120 Gear Pulley
3 – Bearing (Not Spared)
4 059K19750 Registration Roll
5 012E09760 Link
6 809E04210 Rear Spring
7 005E80250 Clip
8 013E94561 Bearing
9 008E90941 Rear Cam
10 012E91960 Link
11 022K38040 Registration Pinch Roll (REP 5.15)
12 008E90931 Front Cam
13 809E04220 Front Spring
14 009E28570 Spring
15 050K46690 Gate
16 009E28560 Spring
