REP 7.3 Tray 1 Feeder
Parts List on PL 2.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Pull out Tray 1 to paper loading position.
2. Open the Left Lower Cover.
3. Remove Tray 1 Feeder (Figure 1).

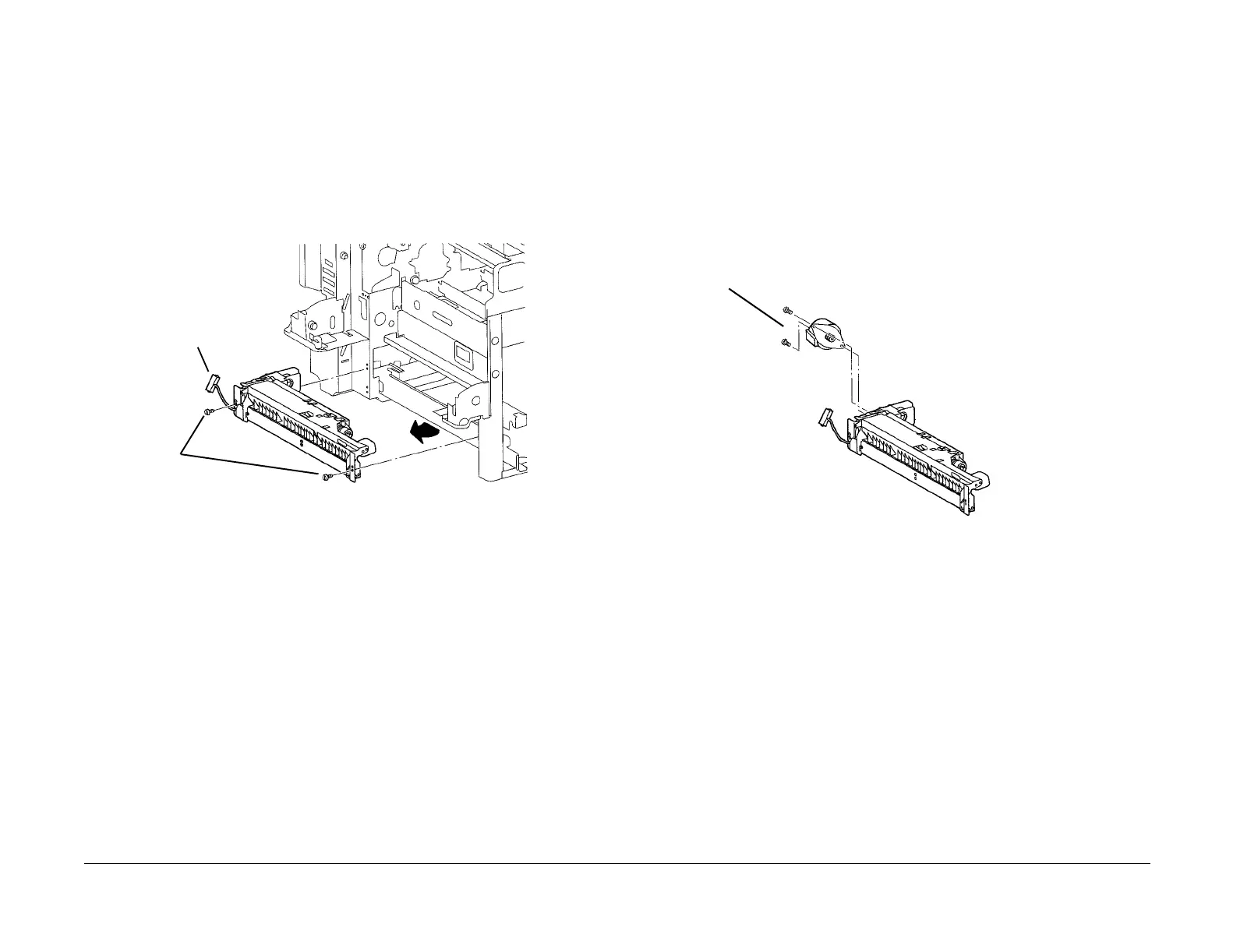

Figure 1 Removing Tray 1 Feeder
REP 7.4 Tray 1 Feed/Lift Motor
Parts List on PL 2.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Pull out Tray 1 to paper loading position.
2. Open Left Lower Cover.
3. Remove Tray 1 Feeder (REP 7.3).
4. Remove Tray 1 Feed Motor (Figure 1).
Figure 1 Removing Tray 1 Feed Motor
1
Disconnect
Harness
2
Remove
Screws (2)
3
Remove
Feeder
Remove Screws
(2) and motor
