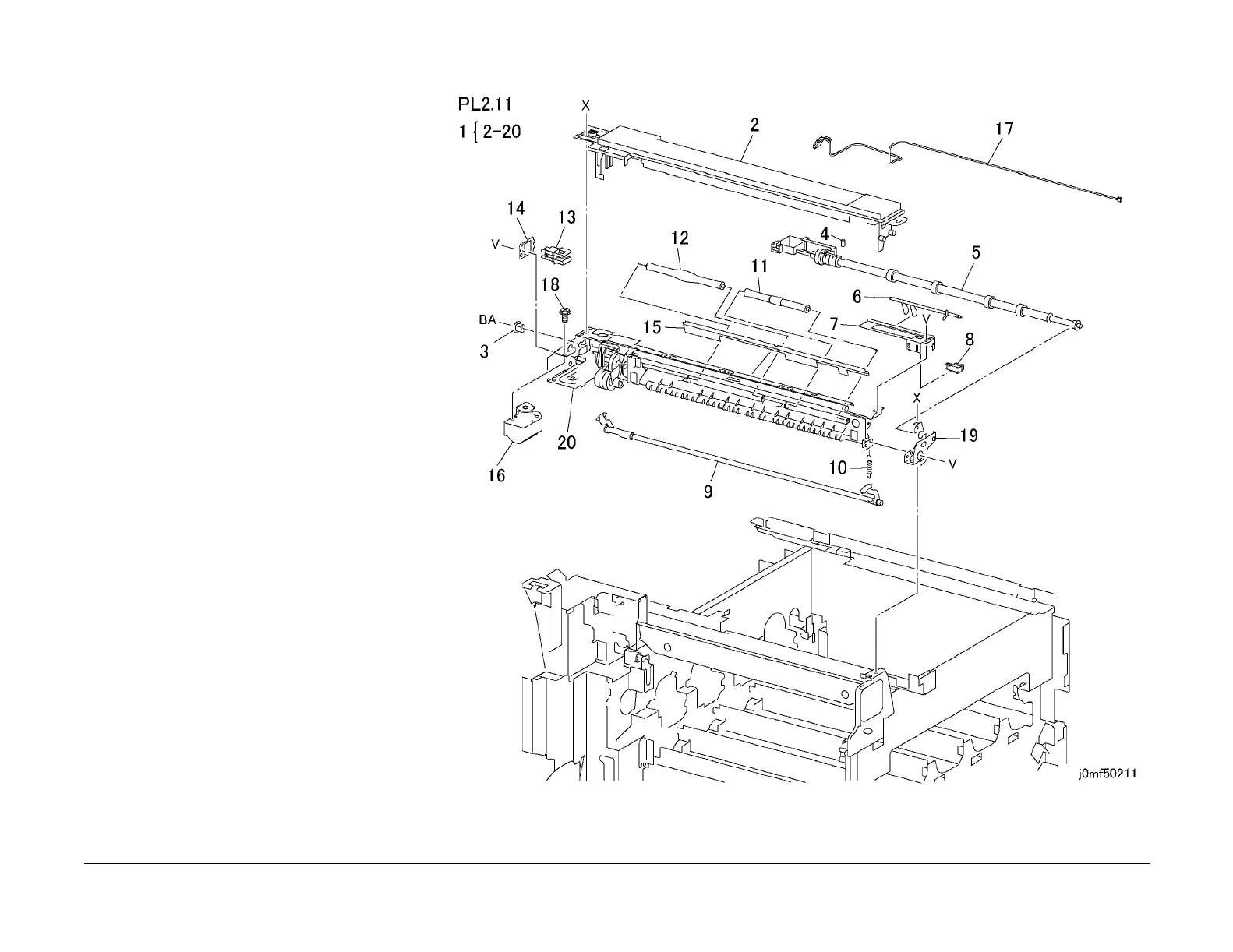

PL 2.11 Exit Transport Assembly
Item Part Description
1 059K29560 Exit Transport Assembly (REP 8.7)
2 – Exit Transport Cover (Part of Item
1)
3 – Bearing (Part of Item 1)
4 – Pin (Part of Item 1)
5 – Exit Roll (Part of Item 1)
6 120E18160 Actuator
7 – Bracket (Part of Item 1)
8 130E82190 Full Paper Stack Sensor
9 – Latch (Part of Item 1)
10 – Spring (Part of Item 1)
11 – Pinch Roll (Part of Item 1)
12 – Pinch Roll (Part of Item 1)
13 – LH Cover Interlock Switch (Part of
Item 1)
14 – Bracket (Part of Item 1)
15 – Static Eliminator (Part of Item 1)
16 – Offset Motor (Part of Item 1)
17 – Wire Harness (Part of Item 1)
18 – Screw (Part of Item 1)
19 – Front Bracket (Part of Item 1)
20 – Frame (Part of Item 1)
