DC 3535/2240/1632, WC M24
PL 20.1
Initial issue
Parts List

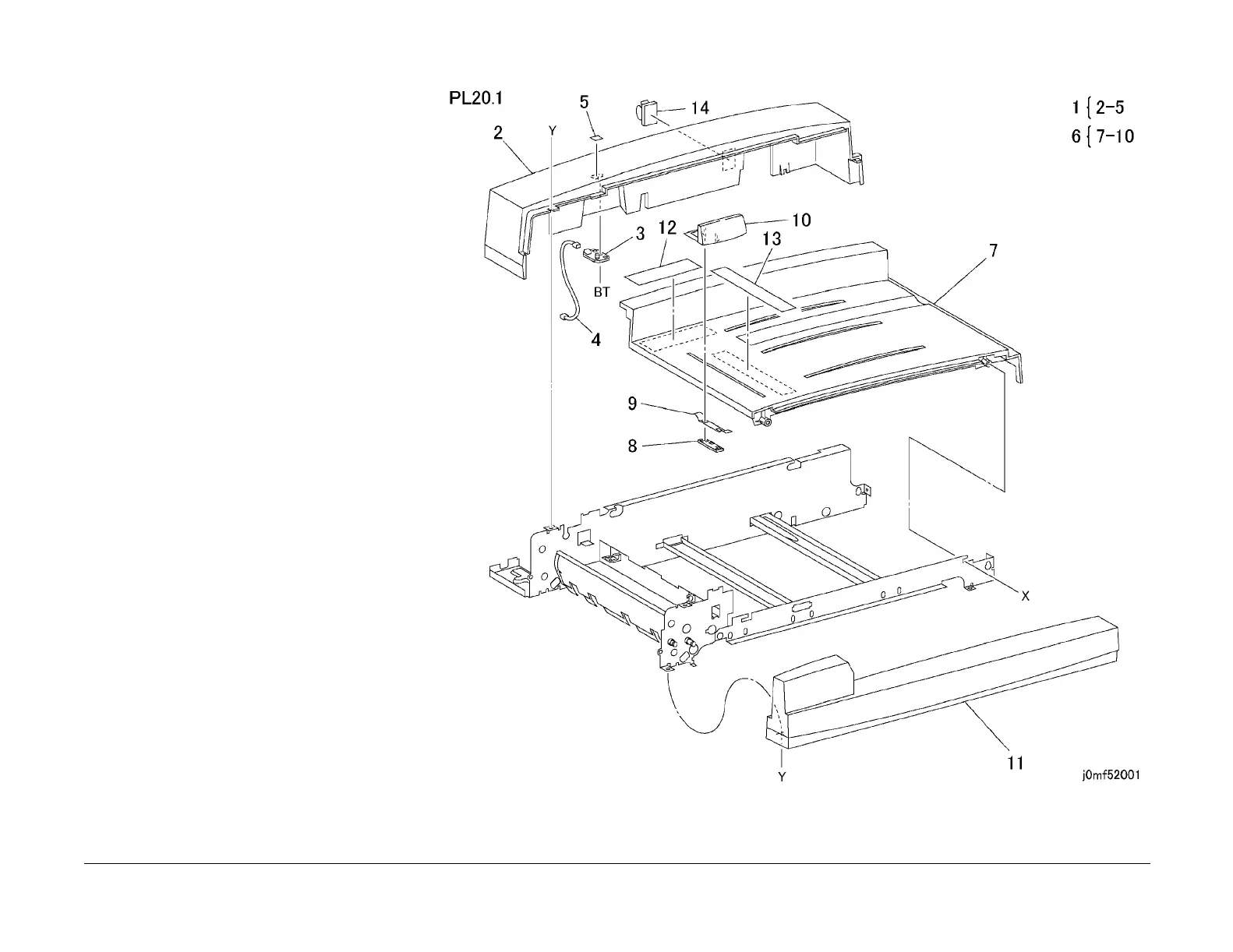

PL 20.1 Front/Rear Cover, Entrance
Tray
Item Part Description
1 048K76181 Rear Cover Assembly (REP 5.18)
2 – Rear Cover (P/O PL 20.1 Item 1)
3 140K60480 LED PWB
4 – Wire Harness (P/O PL 20.1 Item 1)
5 891E65180 Label (Display)
6 050K36410 Entrance Tray Assembly
7 – Entrance Tray (P/O PL 20.1 Item 6)
8 – Plate (P/O PL 20.1 Item 6)
9 009E26870 Spring Plate
10 032K93800 Document Guide (DC2240/1632)
– 032K96590 Document Guide (DC3535)
11 048E64201 Front Cover
12 892E89310 Label (Instruction)
13 891E65210 Size Label (DC2240/1632)
– 892E89340 Size Label (DC3535)
14 – Clamp (Not Spared)
To Next Page
