DC 3535/2240/1632, WC M24
PL 9.2
Parts List
Initial issue

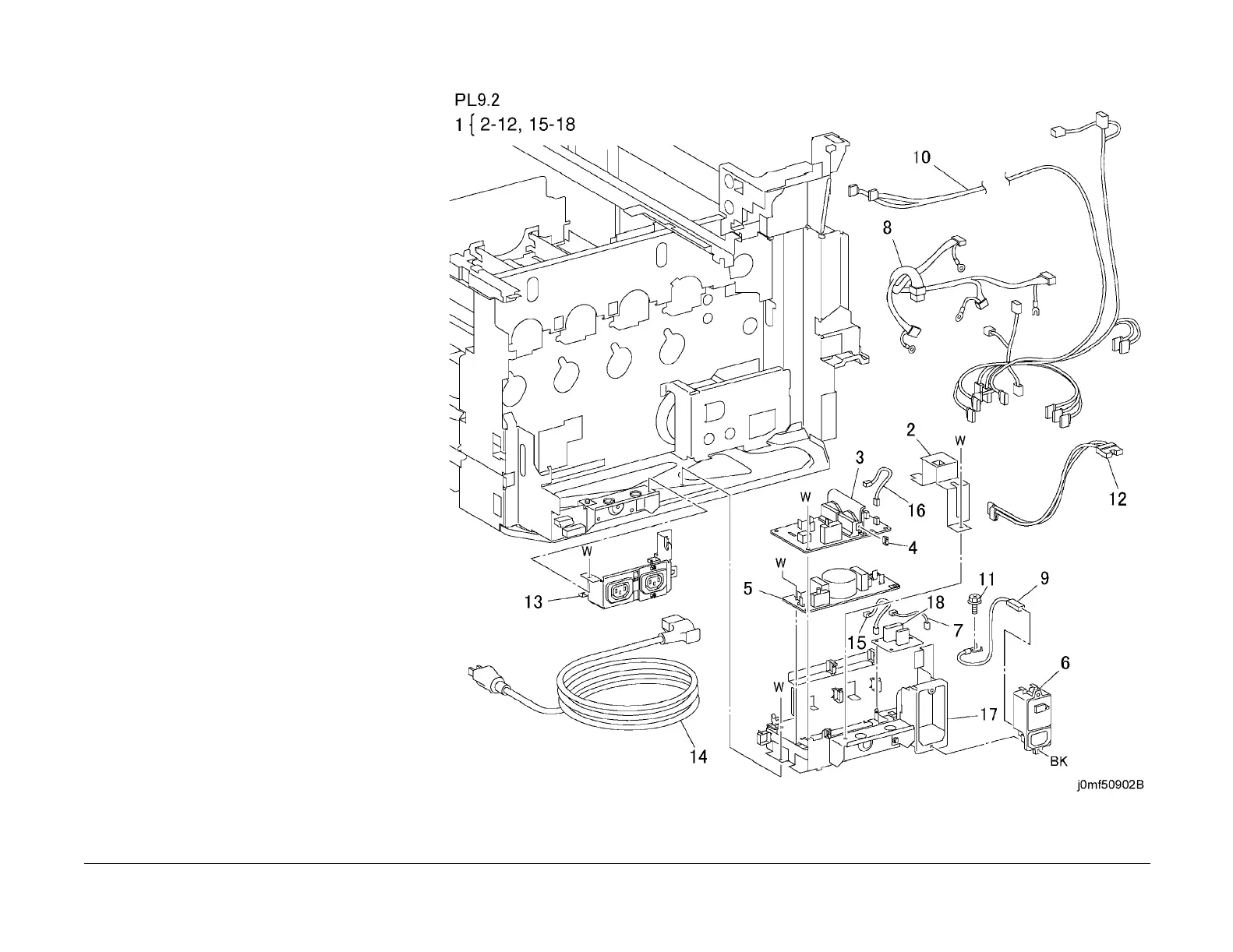

PL 9.2 Electrical Components: 2 of 3
Item Part Description
1 101K38982 AC Power Chassis Assembly
(220V) (DC2240/1632/WC24)
– 101K38812 AC Power Chassis Assembly
(110V) (DC2240/1632/WC24)
– 101K39401 AC Power Chassis Assembly
(220V) (DC3535)
– 101K38821 AC Power Chassis Assembly
(110V) (DC3535)
2 – Bracket (P/O PL 9.2 Item 1)
3 160K84821 AC Drive PWB (220V) (REP 1.11)
– 160K76771 AC Drive PWB (110V) (REP 1.11)
4 – Clamp (P/O PL 9.2 Item 1)
5 160K84802 Noise Filter PWB (220V)
– 160K76761 Noise Filter PWB (110V)
6 908W01200 GFI Breaker
7 962K08821 Wire Harness
(DC2240/1632/WC24)
– 962K09380 Wire Harness (DC3535)
8 – Wire Harness (P/O PL 9.2 Item 1)
9 – Wire Harness (P/O PL 9.2 Item 1)
10 – Wire Harness (P/O PL 9.2 Item 1)
11 – Screw (P/O PL 9.2 Item 1)
12 – Wire Harness (P/O PL 9.2 Item 1)
13 074K94321 Outlet Panel (DC2240/1632/WC24)
– 074K94280 Outlet Panel (DC3535)
14 117K31400 Power Cord (110V)
– 117E94370 Power Cord (220V)
– 152S05108 Power Cord (250V, 10A) Europe
15 162K69330 Wire Harness
16 – Wire Harness (P/O PL 9.2 Item 1)
17 – AC Power Chassis (P/O PL 9.2
Item 1)
18 160K77203 Delay PWB
