09/03
2-209
DC 3535/2240/1632, WC M24
9-910, 9-911
Status Indicator RAPs
Initial issue
9-910 Drum (Y) Type Mismatch
Drum Type Mismatch
Initial Actions
Ensure that the correct drum type is installed. Ensure that NVM loc. 751 -168 is set correctly
(80 for XC, XE, DMO).
Procedure
Enter dC330 [009-151], (Drum (Y) Data). The display is H.
YN
Go to Figure 1. Check the wires and connectors. If the check is OK, replace the Yellow
Drum Cartridge (refer to Section 6, Machine Consumables).
Replace the MCU PWB (PL 13.1).

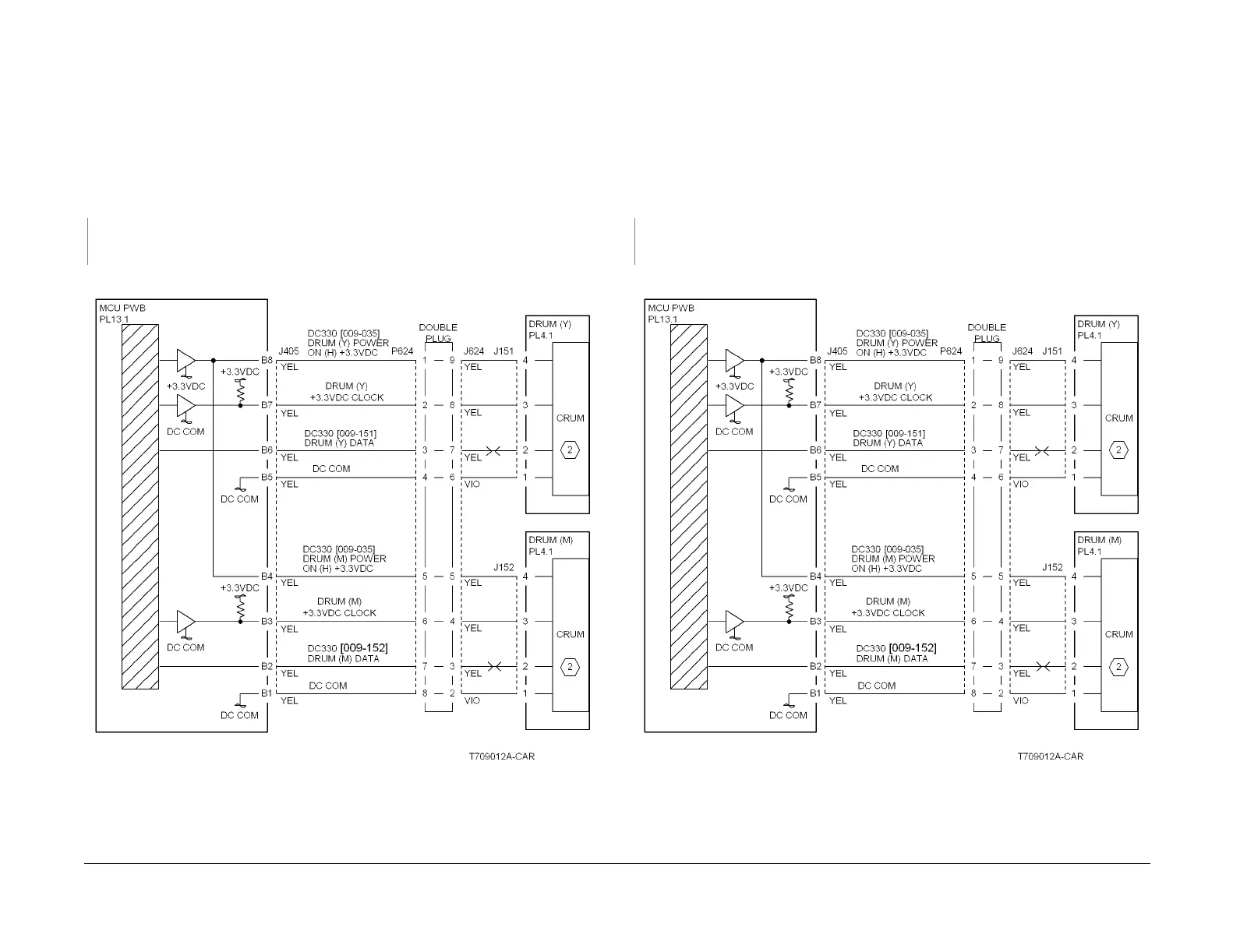

Figure 1 9-910 Rap Circuit Diagram - Yellow Drum Communication
9-911 Drum (M) Type Mismatch
Drum Type Mismatch
Initial Actions
Ensure that the correct drum type is installed. Ensure that NVM loc. 751 -168 is set correctly
(80 for XC, XE, DMO).
Procedure
Enter dC330 [009-152] (Drum (M) Data). The display is H.
YN
Go to Figure 1. Check the wires and connectors. If the check is OK, replace the Magenta
Drum Cartridge (refer to Section 6, Machine Consumables).
Replace the MCU PWB (PL 13.1).
Figure 1 9-911 Rap Circuit Diagram - Magenta Drum Communication
