Xerox DocuColor 2240

09/03
2-210
DC 3535/2240/1632, WC M24
9-912, 9-913
Initial issue
Status Indicator RAPs
9-912 Drum (C) Type Mismatch
Drum Type Mismatch
Initial Actions
Ensure that the correct drum type is installed. Ensure that NVM loc. 751 -168 is set correctly
(80 for XC, XE, DMO).
Procedure
Enter dC330 [009-153] (Drum (C) Data). The display is H.
YN
Check the wires and connectors. If the check is OK, replace the Cyan Drum Cartridge
(refer to Section 6, Machine Consumables).
Replace the MCU PWB. (PL 13.1).

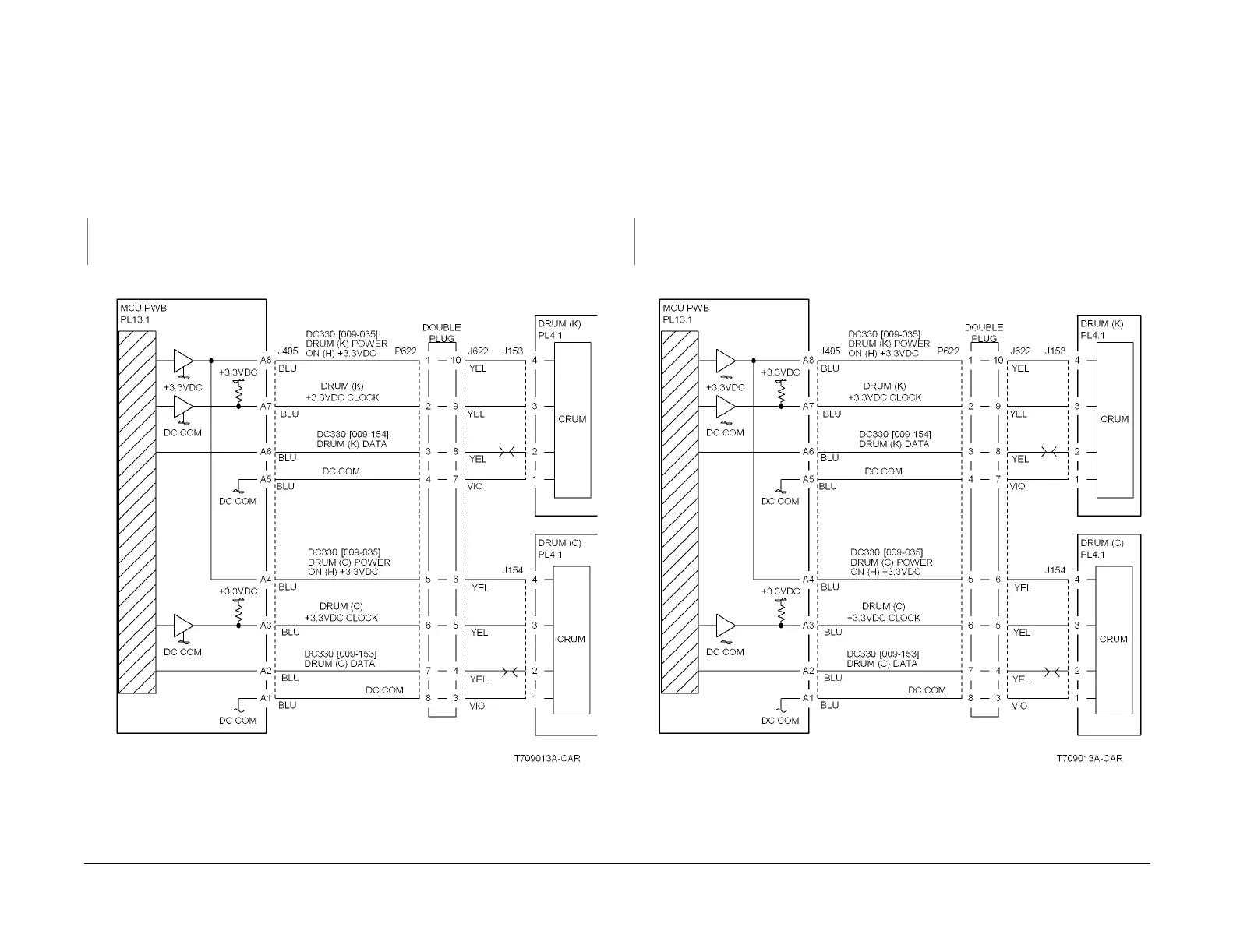

Figure 1 9-912 Rap Circuit Diagram - Cyan Drum Communication
9-913 Drum (K) Type Mismatch
Drum Type Mismatch
Initial Actions
Ensure that the correct drum type is installed. Ensure that NVM loc. 751 -168 is set correctly
(80 for XC, XE, DMO).
Procedure
Enter dC330 [009-154] (Drum (K) Data). The display is H.
YN
Check the wires and connectors. If the check is OK, replace the Black Drum Cartridge
(refer to Section 6, Machine Consumables).
Replace the MCU PWB. (PL 13.1).
Figure 1 9-913 Rap Circuit Diagram - Black Drum Communication
