09/03
5-46
DC 3535/2240/1632, WC M24
PL 11.2
Initial issue
Parts List

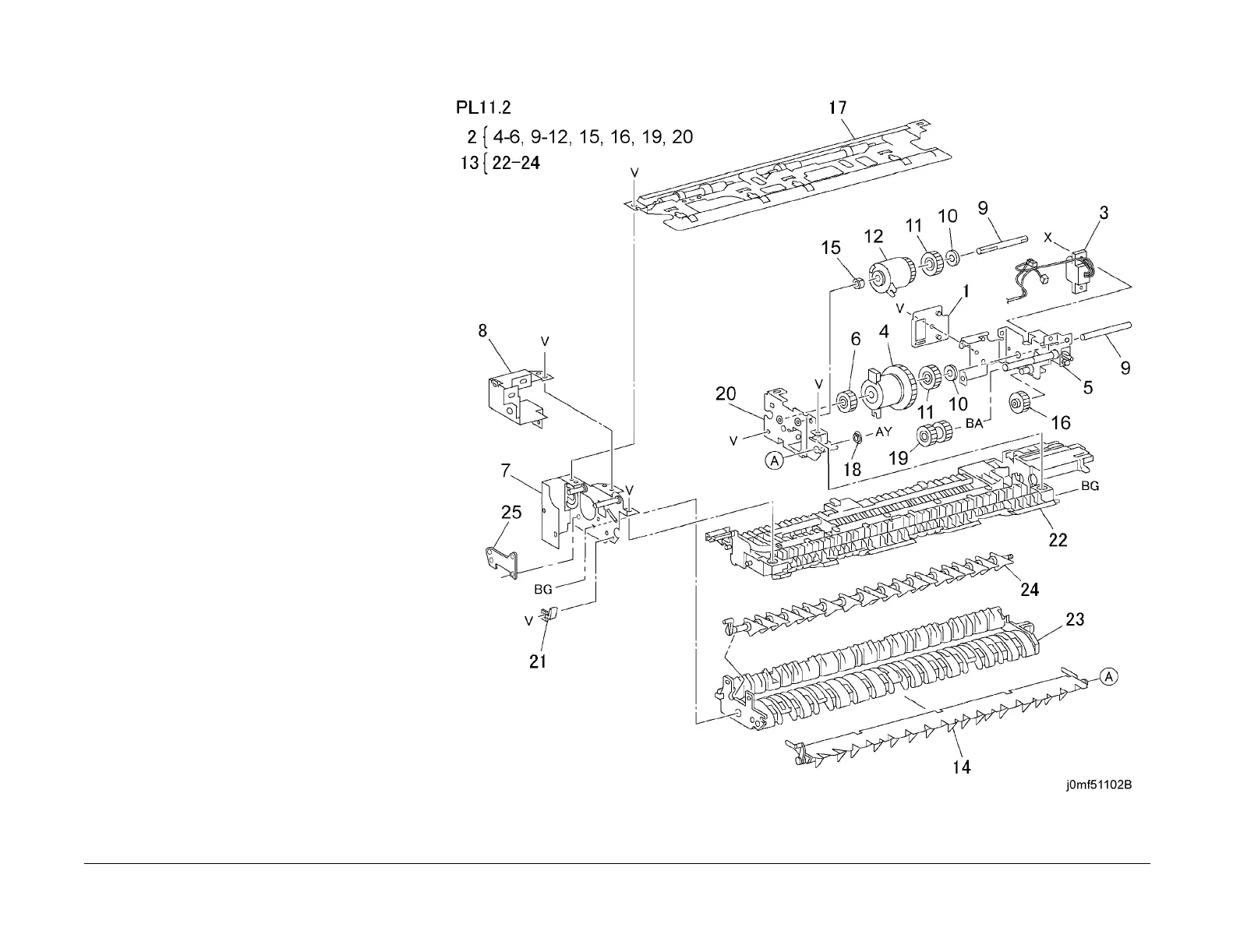

PL 11.2 Inverter Transport: 2 of 2
Item Part Description
1 Cover (Not Spared)
2 015K45802 Clutch Assembly
3 Wire Harness (Not Spared)
4 121K22870 Reverse Clutch
5 011E10711 Interlock Actuator
6 Gear (23T) (P/O PL 11.2 Item 2)
7 Bracket (Not Spared)
8 Bracket (Not Spared)
9 Shaft (P/O PL 11.2 Item 2)
10 Bearing (P/O PL 11.2 Item 2)
11 Gear (23T) (P/O PL 11.2 Item 2)
12 121K22860 Forward Clutch
13 054K17241 Inverter Chute Assembly
14 Exit Gate (Not Spared)
15 Spacer (P/O PL 11.2 Item 2)
16 Gear (P/O PL 11.2 Item 2)
17 Tie Plate (Not Spared)
18 Bearing (Not Spared)
19 Gear (P/O PL 11.2 Item 2)
20 Bracket (P/O PL 11.2 Item 2)
21 Holder (Not Spared)
22 Upper Chute (P/O PL 11.2 Item 13)
23 Lower Chute (P/O PL 11.2 Item 13)
24 Duplex Gate (P/O PL 11.2 Item 13)
25 830E97760 Gate Plate
