09/03
4-63
DC 3535/2240/1632, WC M24
REP 7.12
Repairs and Adjustments
Initial issue
REP 7.12 Tray 4 Feeder (TTM)
Parts List on PL 16.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Tray 2.
2. Pull out the Tray 3/4.
3. Remove the Stud Bracket (Figure 1).

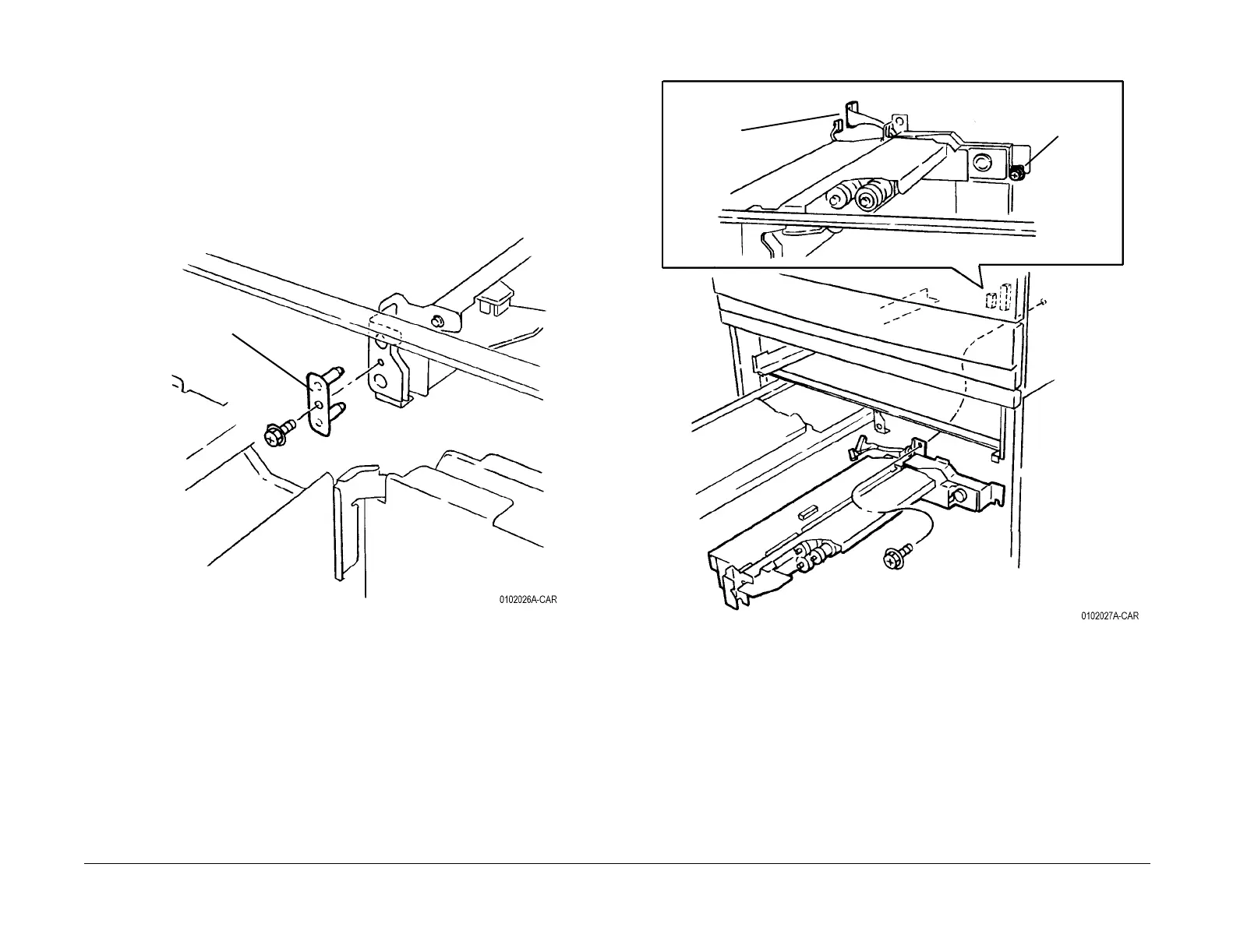

Figure 1 Removing Stud Bracket
4. Remove the Tray 4 Feeder Assembly (Figure 2).
Figure 2 Removing the Tray 4 Feeder Assembly
Remove Screw
and Bracket
1
Disconnect
P/J
2
Loosen
Screw
3
Remove Screw and
Feeder Assembly
To Next Page
