Xerox DocuColor 2240 Service Manual

09/03
4-64
DC 3535/2240/1632, WC M24
REP 7.12
Initial issue
Repairs and Adjustments

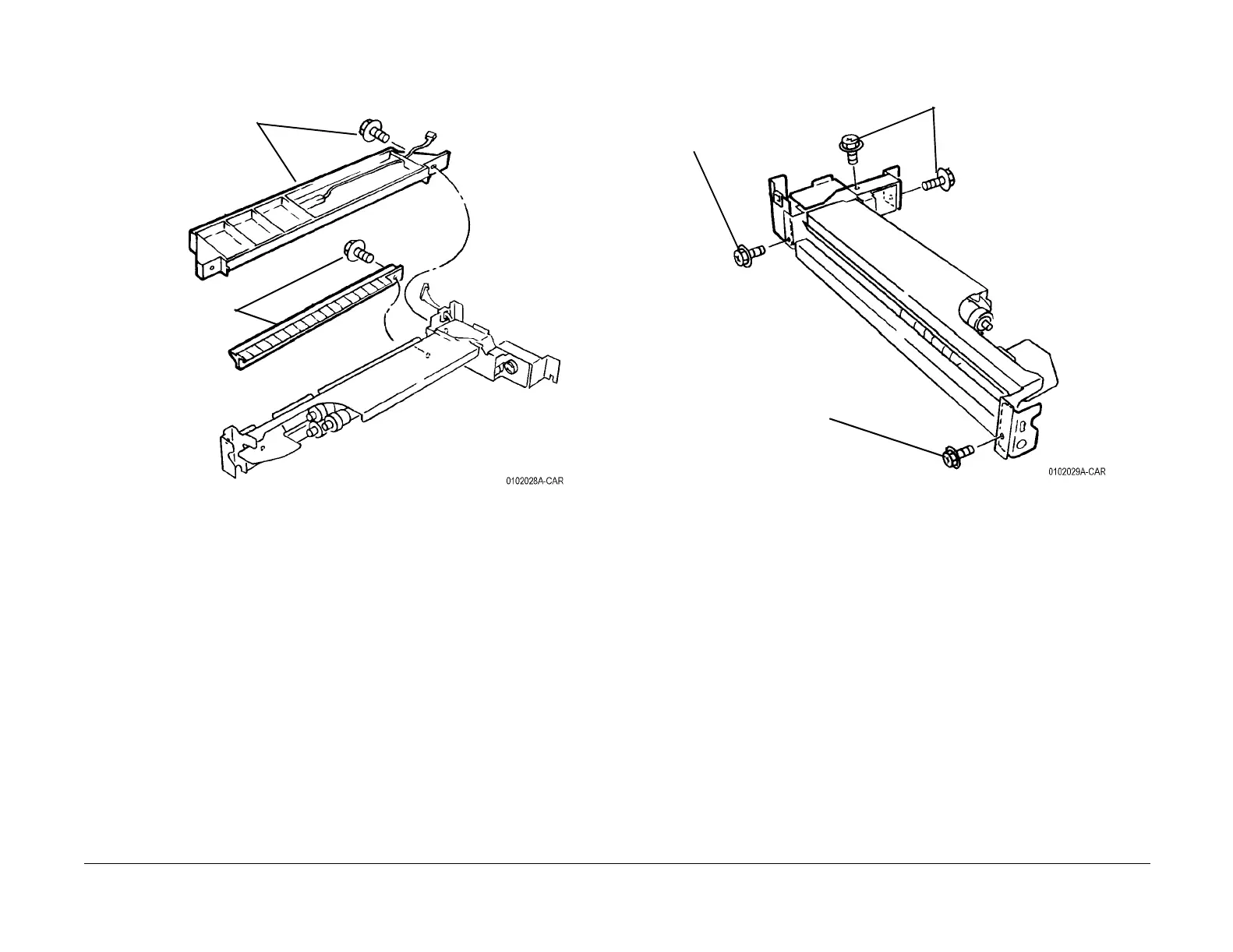

5. Remove the Tray 4 Feeder Guides (Figure 3).
Figure 3 Removing the Guides
6. Remove Brackets from Tray 4 Feeder Assembly (Figure 4).
Figure 4 Removing the Brackets
1
Remove Screws (2)
and Upper Guide
2
Remove Screws (2)
and Lower Guide
1
Remove
Screws (2)
and Bracket
2
Remove Screw
and Bracket
3
Remove Screw
and Bracket
