09/03
4-17
DC 3535/2240/1632, WC M24
REP 1.17, REP 1.18
Repairs and Adjustments
Initial issue

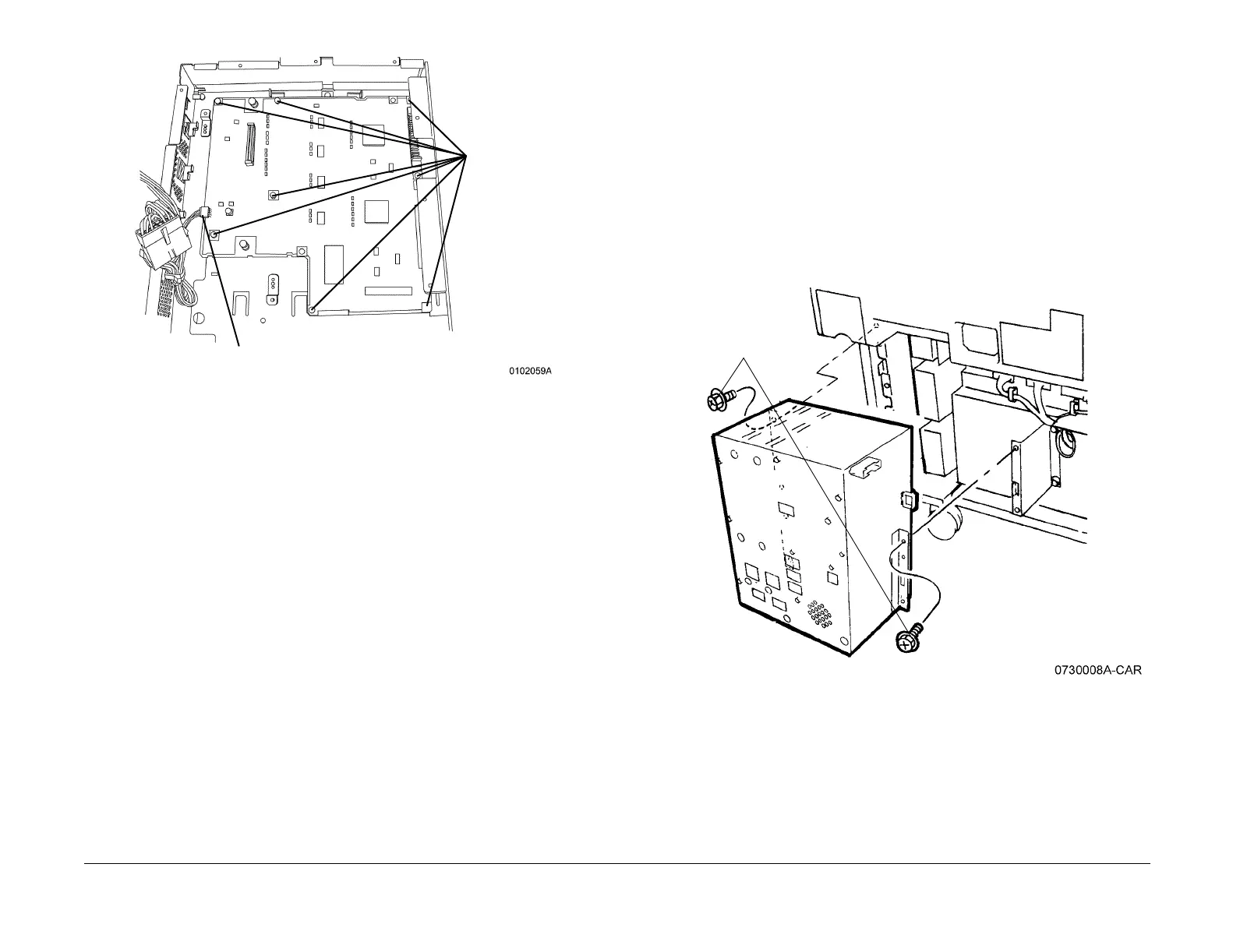

Figure 4 Removing the VSEL PWB
REP 1.18 Fax Module
Parts List on PL 9.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
CAUTION
PWBs can be damaged by electrostatic discharge. Observe all ESD procedures.
1. Remove the Rear Cover (Tray Module) (REP 14.9).
2. Remove the Fax Module (Figure 1).
Figure 1 Fax removal
1
Disconnect P/J390
2
Remove
screws (8)
1
Remove
screws (2)
2
Lift Fax Module of
from hooks
To Next Page
