Repairs and Adjustments
REP 9.3 Waste Toner Cartridge Cover
Parts List on PL 4.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Waste Toner Cartridge Cover (Figure 1).
a. Open Waste Toner Cartridge Cover.
b. Remove Screw.
c. Remove Waste Toner Cartridge Cover.
Figure 1 Removing Waste Toner Cartridge Cover
REP 9.4 Waste Toner Cartridge
Parts List on PL 4.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Waste Toner Cartridge (Figure 1).
a. Open Waste Toner Cartridge Cover.
b. Release Lever and move half way down.
c. Pull out to remove Waste Toner Cartridge.

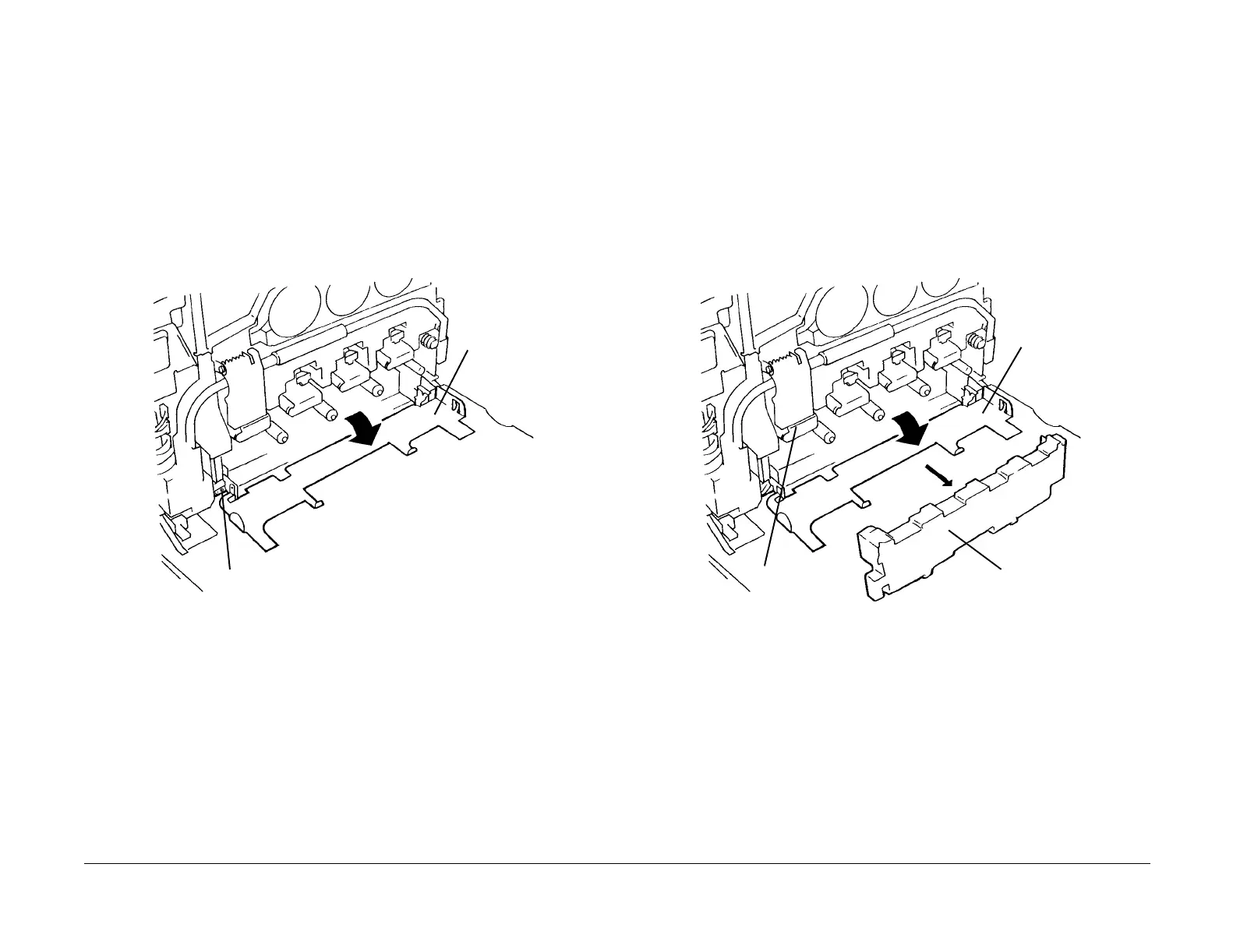

Figure 1 Removing Waste Toner Cartridge
Waste Toner
Cartridge
Cover
Screw
Waste
Cartridge
Waste Toner
Cartridge
Cover
Lever
