09/03
5-88
DC 3535/2240/1632, WC M24
PL 17.12
Initial issue
Parts List

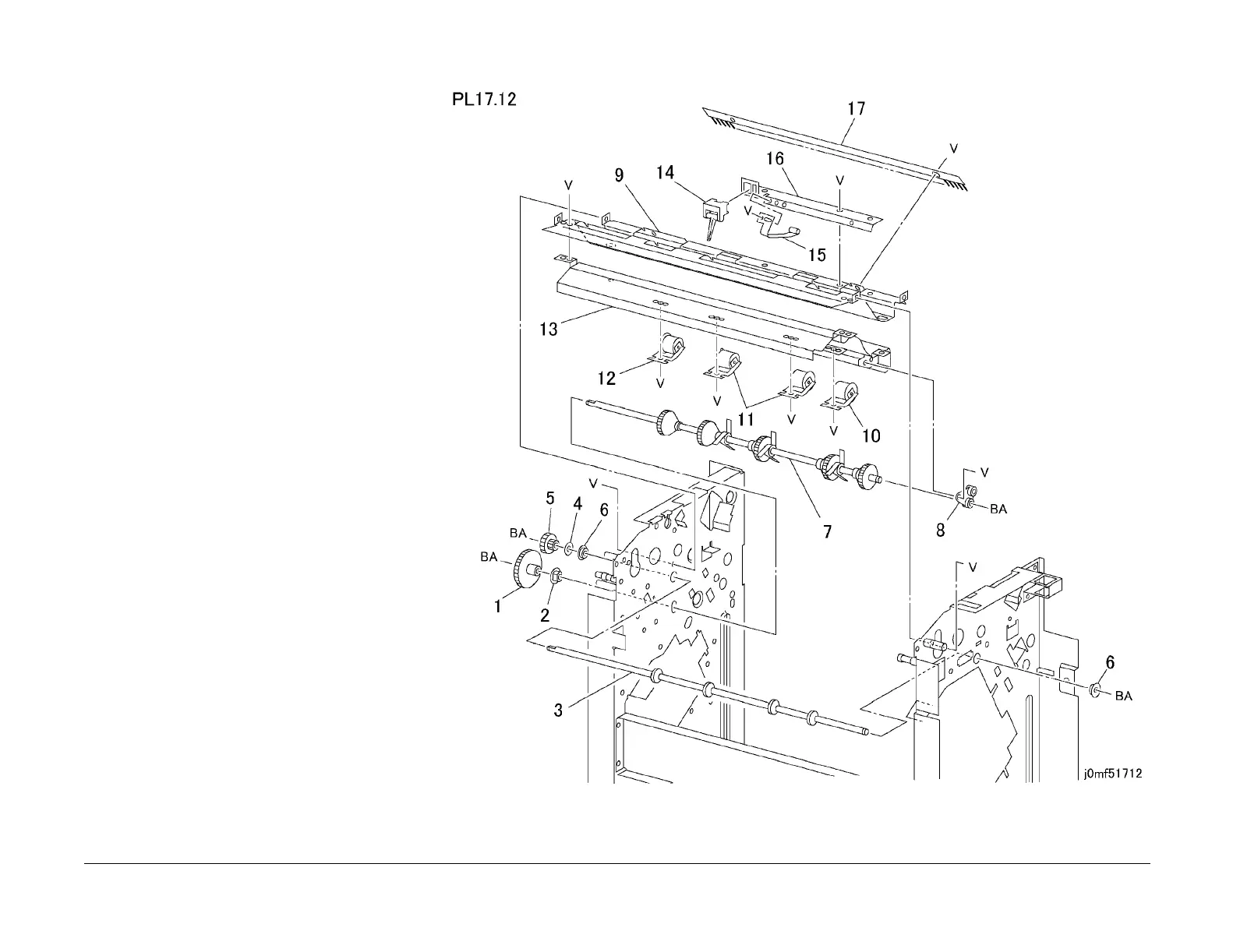

PL 17.12 Exit Assembly
Item Part Description
1 007E72080 Gear (48Z)
2 – Bearing (Not Spared)
3 006K21720 Exit Shaft
4 – Collar (Not Spared)
5 007E72070 Gear (32Z/18T)
6 – Bearing (Not Spared)
7 006K21970 Paddle Gear Shaft (REP 12.15)
8 013E20250 Paddle Bearing
9 – Lower Exit Chute (Not Spared)
10 022K65880 Pinch Roll
11 – Pinch Roll (Not Spared)
12 – Pinch Roll (Not Spared)
13 – Upper Exit Chute (Not Spared)
14 130K94740 Compiler Entrance Sensor
15 – Spring Plate (Not Spared)
16 – Bracket (Not Spared)
17 105E11320 Static Eliminator
To Next Page
