Parts List

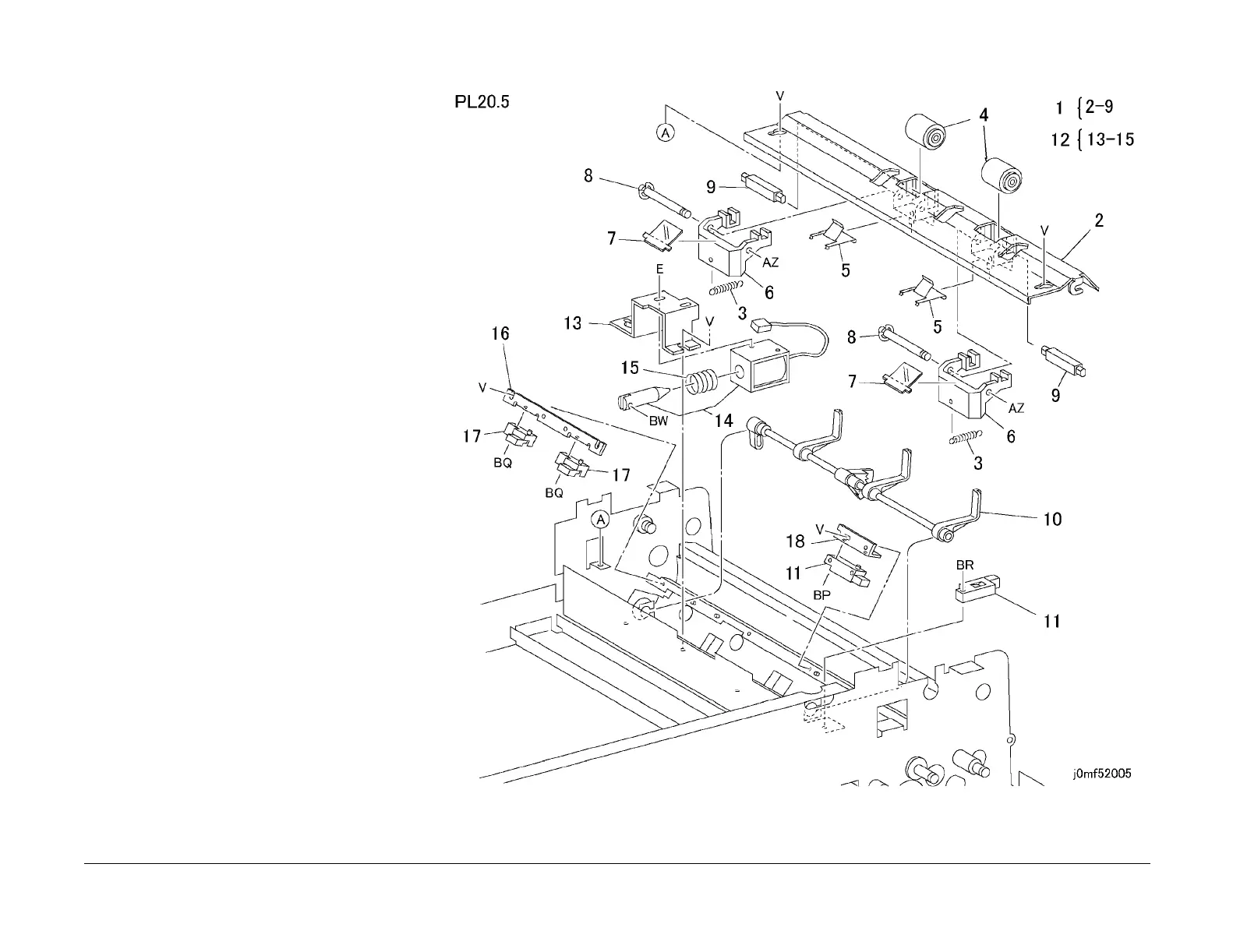

PL 20.5 Document Feed Chute
(Lower)
Item Part Description
1 054K18780 Lower Chute Assembly (REP 5.8)
2 – Lower Chute (P/O PL 20.5 Item 1)
3 – Spring (P/O PL 20.5 Item 1)
4 059K19720 Retard Roll (REP 5.9)
5 – Spring Plate (P/O PL 20.5 Item 1)
6 – Arm (P/O PL 20.5 Item 1)
7 055K19260 Guard
8 – Arm Shaft (P/O PL 20.5 Item 1)
9 – Retard Shaft (P/O PL 20.5 Item 1)
10 – Set Gate (Not Spared)
11 130K60600 Document Sensor, Registration
Sensor (REP 5.11)
12 121K22690 Set Gate Solenoid Assembly (REP
5.10)
13 – Bracket (P/O PL 20.5 Item 12)
14 – Set Gate Solenoid (P/O PL 20.5
Item 12)
15 – Spring (P/O PL 20.5 Item 12)
16 – Bracket (Not Spared)
17 130E80890 Size Sensor 1 (Rear), Size Sensor
2 (Front) (REP 5.12)
18 – Bracket (Not Spared)
