09/03
5-59
DC 3535/2240/1632, WC M24
PL 15.10
Parts List
Initial issue

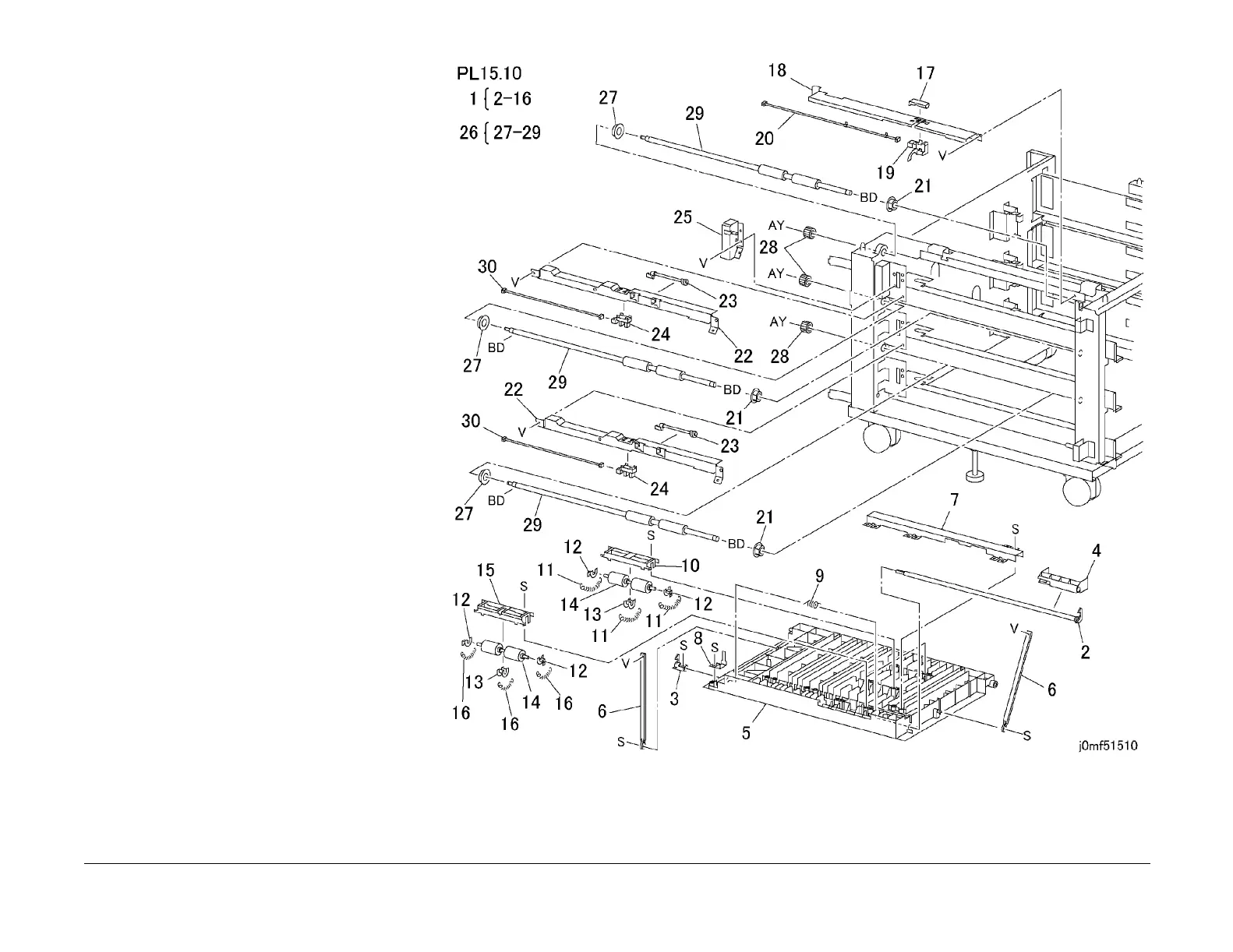

PL 15.10 Left Cover Assembly
Item Part Description
1 802K25721 Left Cover Assembly (REP 14.11)
2 003E53700 Shaft
3 003E53710 Hook
4 011E10800 Handle
5 – Left Cover (P/O PL 15.10 Item 1)
6 – Support (P/O PL 15.10 Item 1)
7 – Cover (P/O PL 15.10 Item 1)
8 – Actuator (P/O PL 15.10 Item 1)
9 809E28970 Spring
10 – Bearing (P/O PL 15.10 Item 1)
11 809E28960 Spring
12 – Bearing (P/O PL 15.10 Item 1)
13 – Bearing (P/O PL 15.10 Item 1)
14 – Roll (P/O PL 15.10 Item 1)
15 – Bracket (P/O PL 15.10 Item 1)
16 809E28980 Spring
17 – Cover (Not Spared)
18 – Chute (Not Spared)
19 130K61510 Takeaway Sensor
20 162K62810 Wire Harness
21 – Bearing (Not Spared)
22 – Chute (Not Spared)
23 120E18820 Actuator
24 130E81600 Feedout Sensor (Tray 3/4)
25 015K49470 Interlock Switch
26 059K18900 Takeaway Roll Assembly
27 – Bearing (P/O PL 15.10 Item 26)
28 – Gear (P/O PL 15.10 Item 26)
29 – Takeaway Roll (P/O PL 15.10 Item
26)
30 – Wire Harness (Not Spared)
To Next Page
