Xerox DocuColor 2240 Service Manual

09/03
6-131
DC 3535/2240/1632, WC M24
Space Requirements
General Procedures and Information
Initial issue
Space Requirements

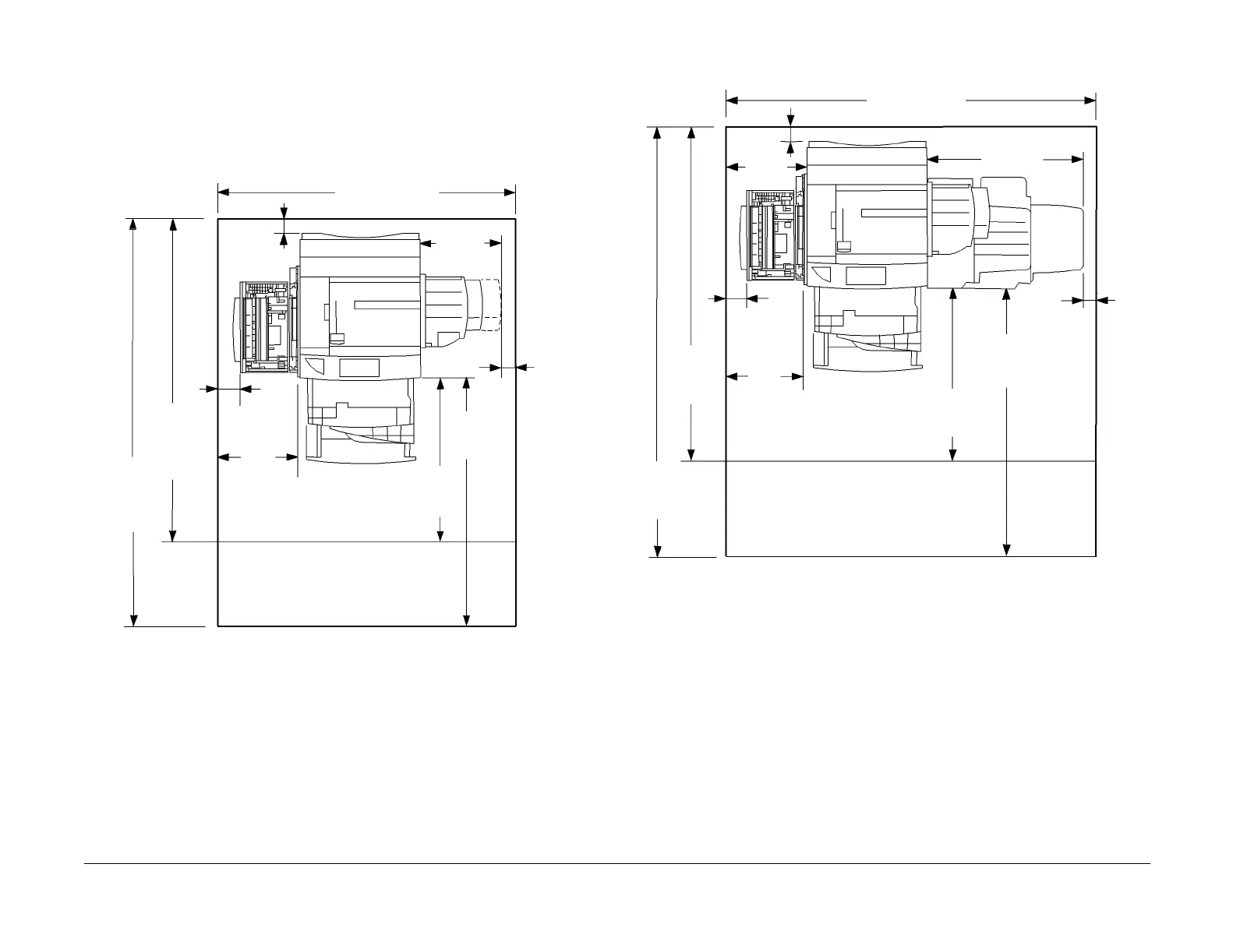

Installation space requirements are shown in Figure 1 (DC 1632/2240 w/out Finisher), Figure 2
(DC 1632/2240 w/Finisher), Figure 3, (DC 3535 w/out Finisher), and Figure 4, (DC 3535 w/
Finisher),
Figure 1 Space Requirement - DC2240/1632 w/out Finisher
Figure 2 Space Requirement - DC2240/1632 w/Finisher
50 mm
2 in.
254 mm
10 in.
100 mm
3.9 in.
1585 mm
62.4 in.
1067 mm
42 in.
508 mm
20 in.
2540 mm
100 in.
(hallway)
452 mm
17.8 in.
1651mm
65 in.
1956 mm.
77 in.
(typical)
typical installation space
hallway installation space
2032 mm
80 in.
899 mm
35.4 in.
100 mm
3.9 in.
254 mm
10 in.
381mm
15 in.
2540 mm
100 in.
(hallway)
50 mm
2 in.
1067 mm
42 in.
1651 mm
65 in.
1956 mm
77 in.
(typical)
typical installation space
hallway installation space
