09/03
5-77
DC 3535/2240/1632, WC M24
PL 17.1
Parts List
Initial issue

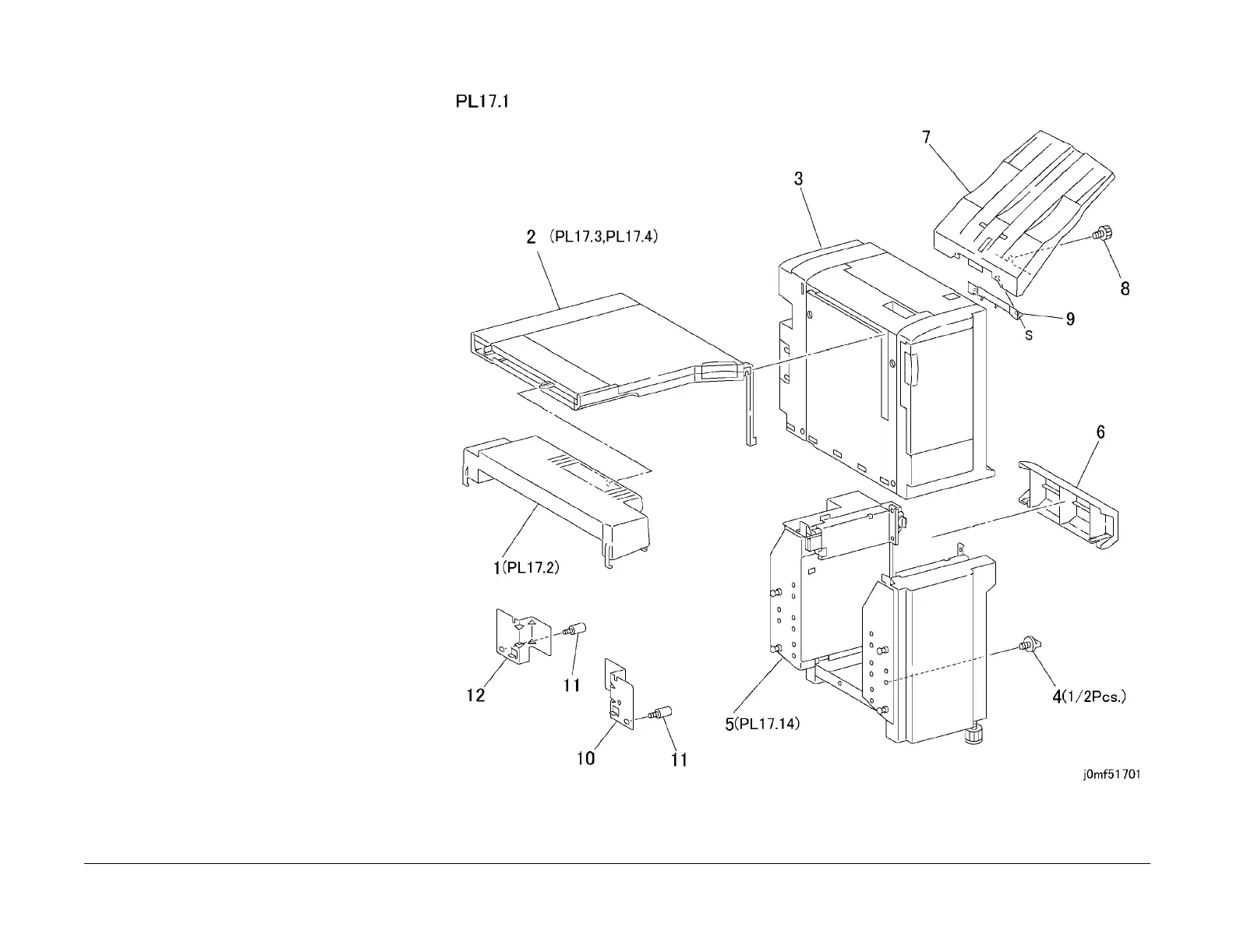

PL 17.1 Finisher
Item Part Description
1 802K49900 Gate Assembly
2 801K03600 H-Transport Assembly (REP 12.1)
3 – Stapler Finisher (Not Spared)
4 003K12090 Thumbscrew
5 – Rack Assembly (Not Spared) (REP
12.19)
6 – Right Cover (Not Spared)
7 050E19480 Stacker Tray (REP 12.20)
8 026E93560 Screw
9 – Bracket (Not Spared)
10 – Front Bracket (Not Spared)
11 – Stud Screw (Not Spared)
12 – Rear Bracket (Not Spared)
