Xerox DocuColor 2240

09/03
5-65
DC 3535/2240/1632, WC M24
PL 16.5
Parts List
Initial issue

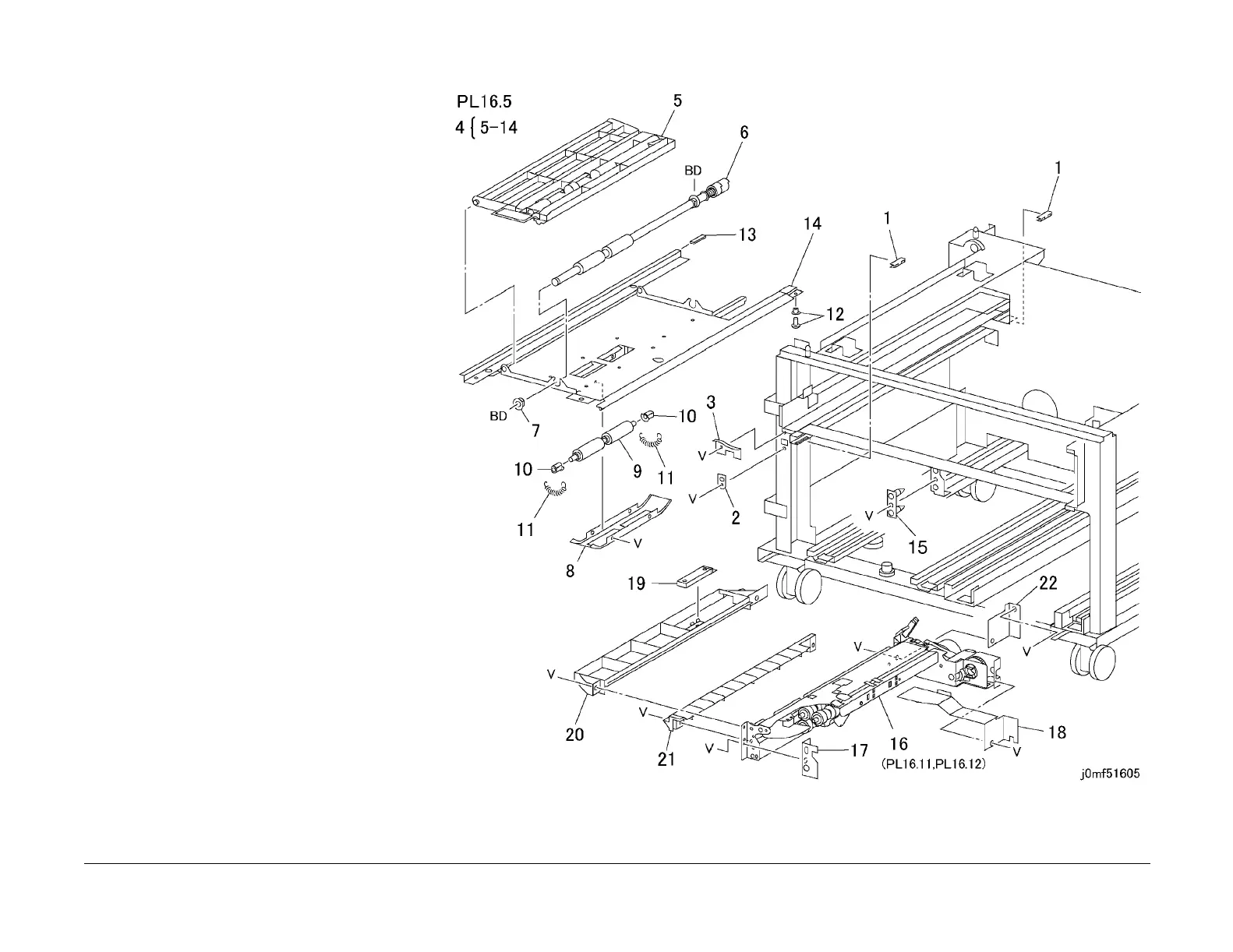

PL 16.5 Paper Feeder: 1 of 2
Item Part Description
1 – Spacer (Not Spared)
2 – Guide (Not Spared)
3 – Stop (Not Spared)
4 059K21790 Tray 4 Transport Assembly
5 – Upper Chute (P/O PL 16.5 Item 4)
6 – Takeaway Roll (P/O PL 16.5 Item 4)
7 – Bearing (P/O PL 16.5 Item 4)
8 – Cover (P/O PL 16.5 Item 4)
9 – Pinch Roll (P/O PL 16.5 Item 4)
10 – Bearing (P/O PL 16.5 Item 4)
11 – Spring (P/O PL 16.5 Item 4)
12 – Spacer (P/O PL 16.5 Item 4)
13 – Spacer (P/O PL 16.5 Item 4)
14 – Lower Chute (P/O PL 16.5 Item 4)
15 – Bracket (Not Spared)
16 059K18283 Tray 4 Feeder
17 – Bracket (Not Spared)
18 – Bracket (Not Spared)
19 130E82650 Tray 4 Feedout Sensor
20 054E18540 Upper Chute
21 054E18530 Lower Chute
22 – Bracket (Not Spared)
