09/03
5-17
DC 3535/2240/1632, WC M24
PL 2.8
Parts List
Initial issue

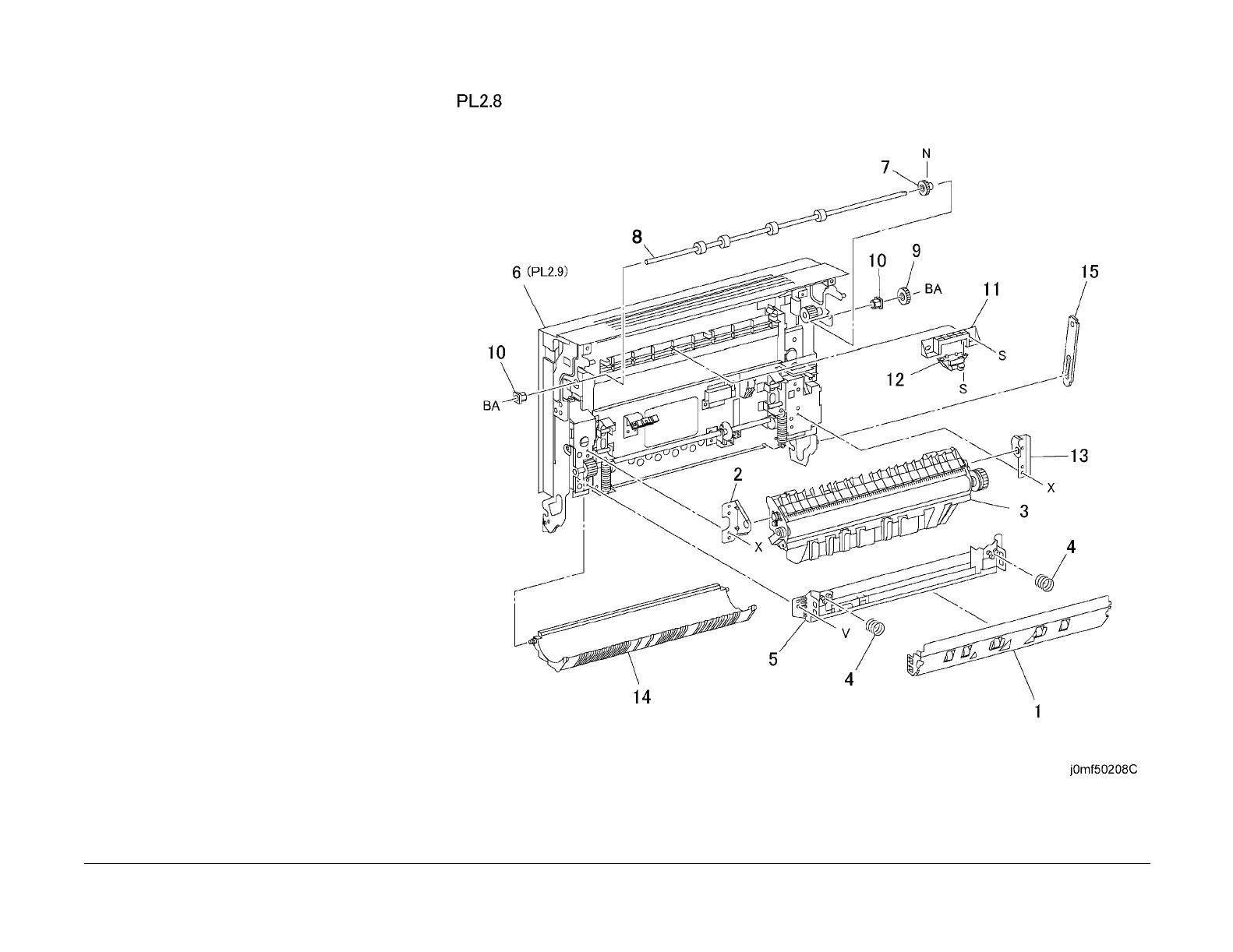

PL 2.8 Left Cover Assembly: 1 of 2
Item Part Description
1 054K22410 Registration Chute
2 – Holder (Not Spared)
3 604K07070 2nd BTR (REP 9.24)
4 809E26070 Spring
5 015K48381 Support
6 – Left Cover (Not Spared)
7 007E62630 Gear (22T)
8 059K15612 Exit Roll
9 007E75201 Gear
10 – Bearing (Not Spared)
11 – Holder (Not Spared)
12 110K10651 Fuser Exit Switch
13 – Holder (Not Spared)
14 054K16130 Duplex Chute (REP 8.2)
15 – Stop (Not Spared)
