ADJ 6.1 Full/Half Rate Carriage
Purpose
Establish Full Rate and Half Rate Carriage position.
Check
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
NOTE: The Half Rate Carriage is checked, and adjusted if required by repositioning a pulley.
Then the Full Rate Carriage is checked, and adjusted if required by repositioning the carriage
on the cable.
1. Remove Platen Glass (REP 6.2).
2. Remove Alignment Tools (2) from Storage (Figure 1).

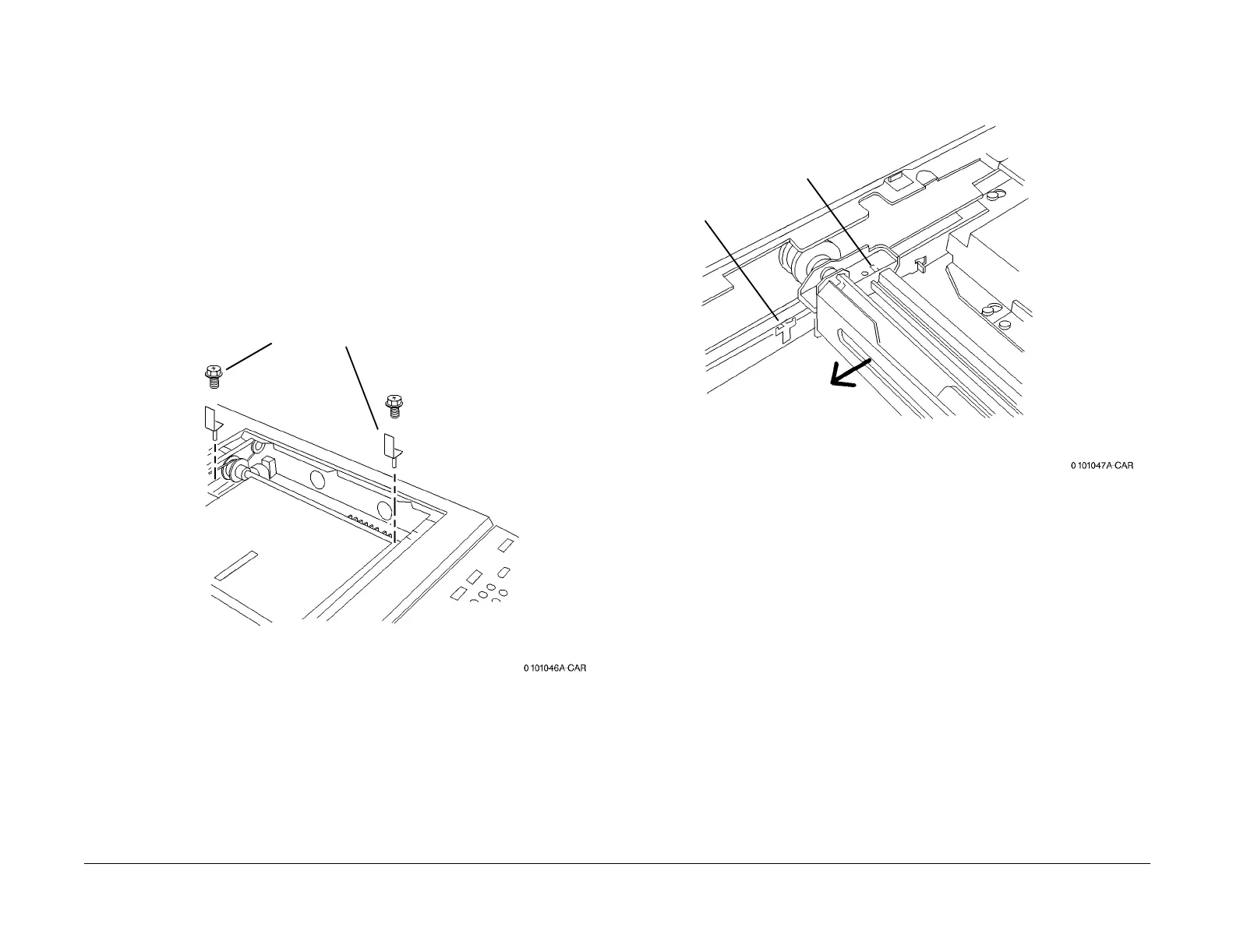

Figure 1 Removing Tools
3. Align Half Rate Carriage with Rail Hole (Figure 2).
a. Manually move Full Rate Carriage away from home position approximately 105 mm
while observing Rail Tool Hole to align with Carriage Tool Hole in Half Rate Carriage.
Figure 2 Aligning Half Rate Carriage with Rail Hole
Remove Screws
(2) and Tools (2)
Rail Hole for
Alignment Tool
Carriage Hole
for Alignment
Tool
Front of Scanner
To Next Page
