Repairs and Adjustments
4. Install Alignment Tool in front end of Half Rate Carriage (Figure 3).

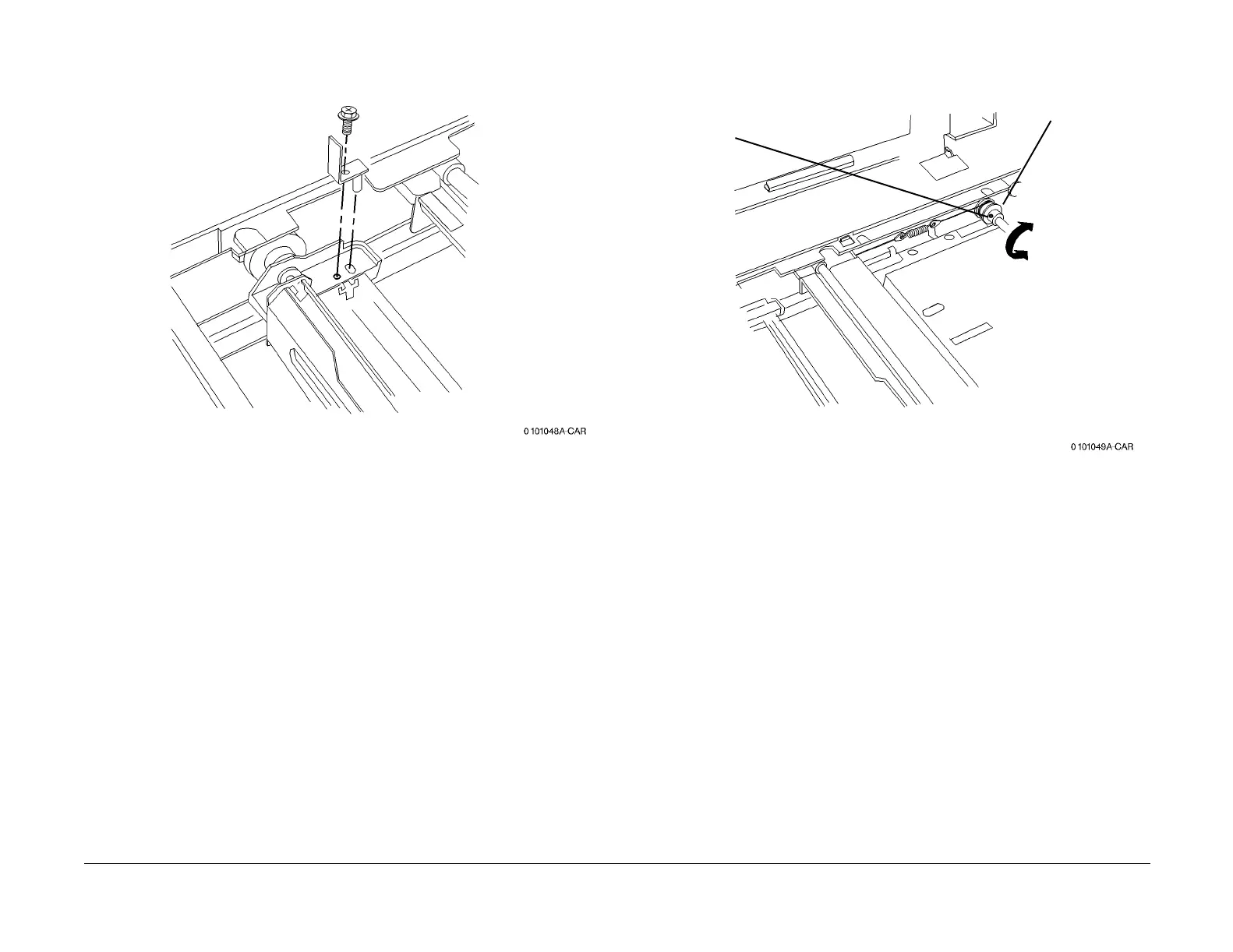

Figure 3 Installing Alignment Tool in Front End of Half Rate Carriage
5. Check that tool will install in other end of carriage.
If the tool installs, go to step 6.
If tool does not install, loosen the set screws (2) and turn the pulley to align the tool holes
with each other (Figure 4).
Figure 4 Loosening the Set Screws
1
Loosen set screws (2)
2
Rotate Pulley
