09/03
4-69
DC 3535/2240/1632, WC M24
REP 8.1
Repairs and Adjustments
Initial issue
REP 8.1 Left Cover Assembly
Parts List on PL 2.9
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 14.2).
2. Remove Rear Left Upper Cover (REP 14.5).
3. Remove Rear Left Middle Cover (REP 14.4).
4. Close Left Cover Assembly.
5. Remove Tray 5 (REP 7.1).
6. Remove Fuser Cover (REP 14.8).
7. Disconnect connectors (3) (Figure 1).

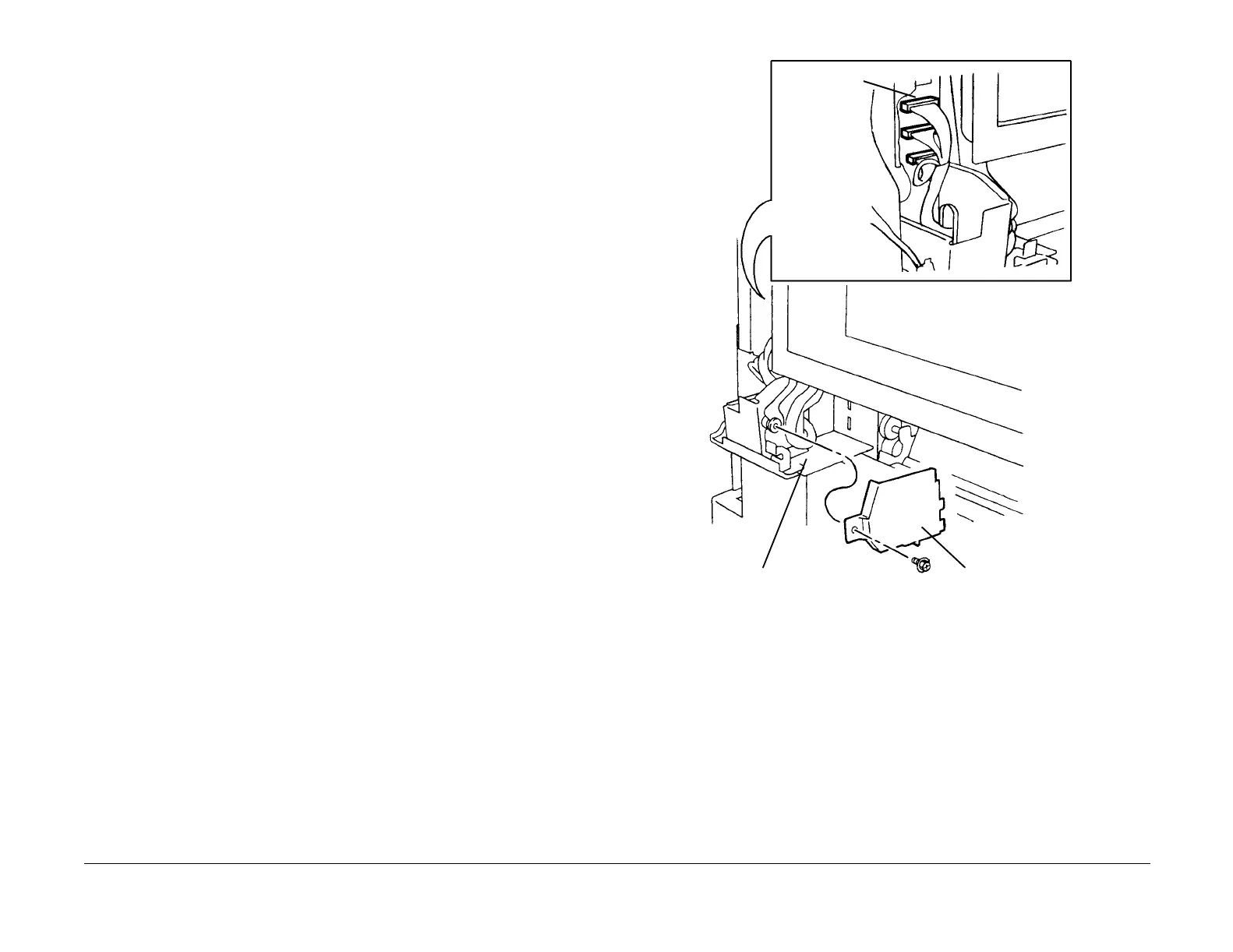

Figure 1 Disconnecting Electrical Connectors (3)
1
Disconnect (3)
2
Remove Screw
and Cover
3
Move Harnesses
into this space
To Next Page
