09/03
4-70
DC 3535/2240/1632, WC M24
REP 8.1
Initial issue
Repairs and Adjustments
8. Remove Left Cover Assembly (Figure 2).

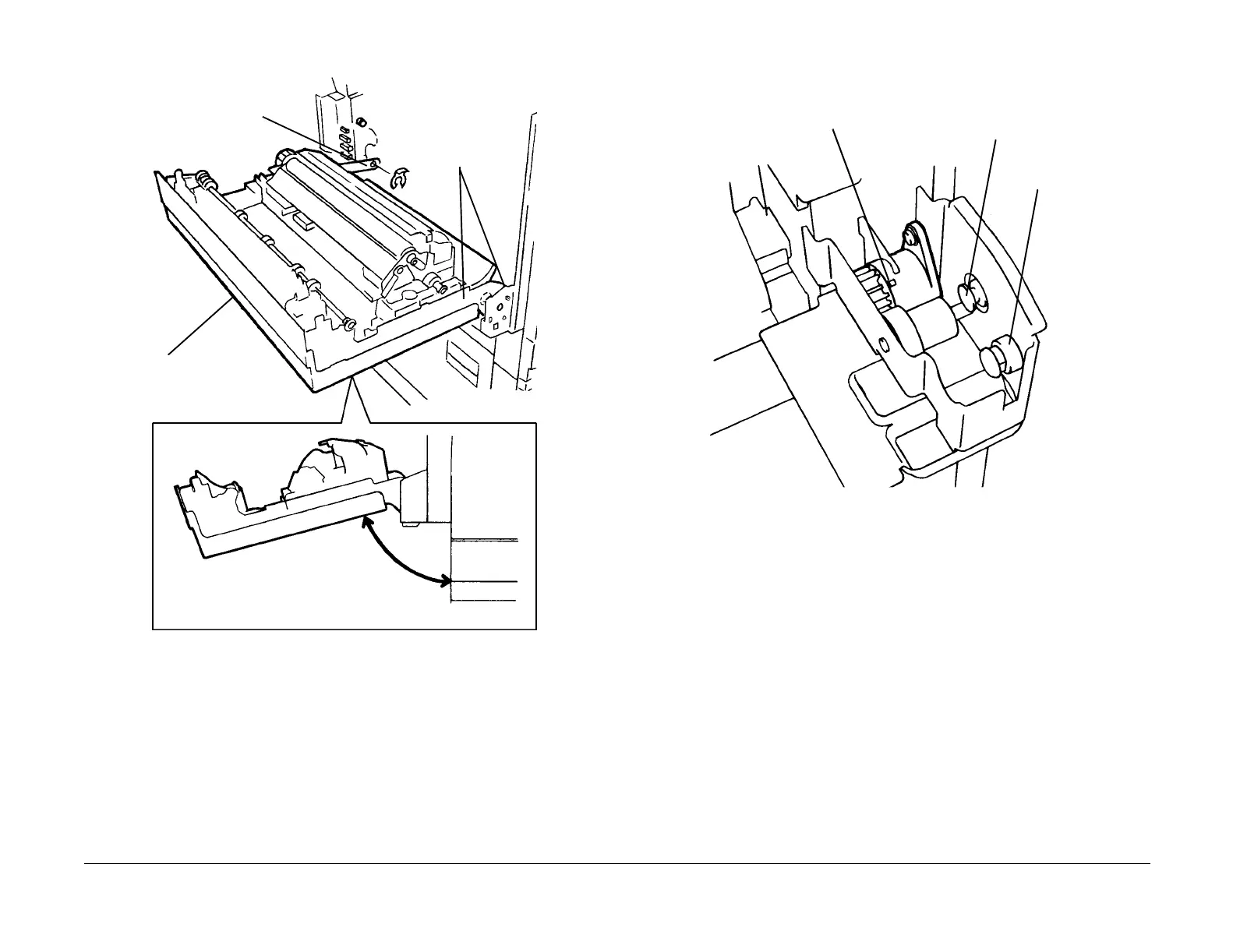

Figure 2 Removing Left Cover Assembly
Replacement
Install Left Cover Assembly on hinge pins, manually align marks on Motion Damper, then tip up
transport to engage Motion Damper gears and connect stop arm on Stop Pin (Figure 3).
CAUTION
Before closing Left Cover Assembly to connect harness, hold up black plastic Duplex Baffle
while closing transport.
Figure 3 Aligning Marks on Motion Damper
1
Remove Clip and
disconnect Stop
2
Support Left Cover
Assembly while per-
form steps 3 and
3
Remove
Screw and
lift up Stop
Arm
4
Lower Left Cover Assembly and then
lift to disengage hinges and remove it
Hinge
Pin
Marks on
Motion
Damper
Stop Pin
To Next Page
