Xerox DocuColor 2240 Service Manual

09/03
5-78
DC 3535/2240/1632, WC M24
PL 17.2
Initial issue
Parts List

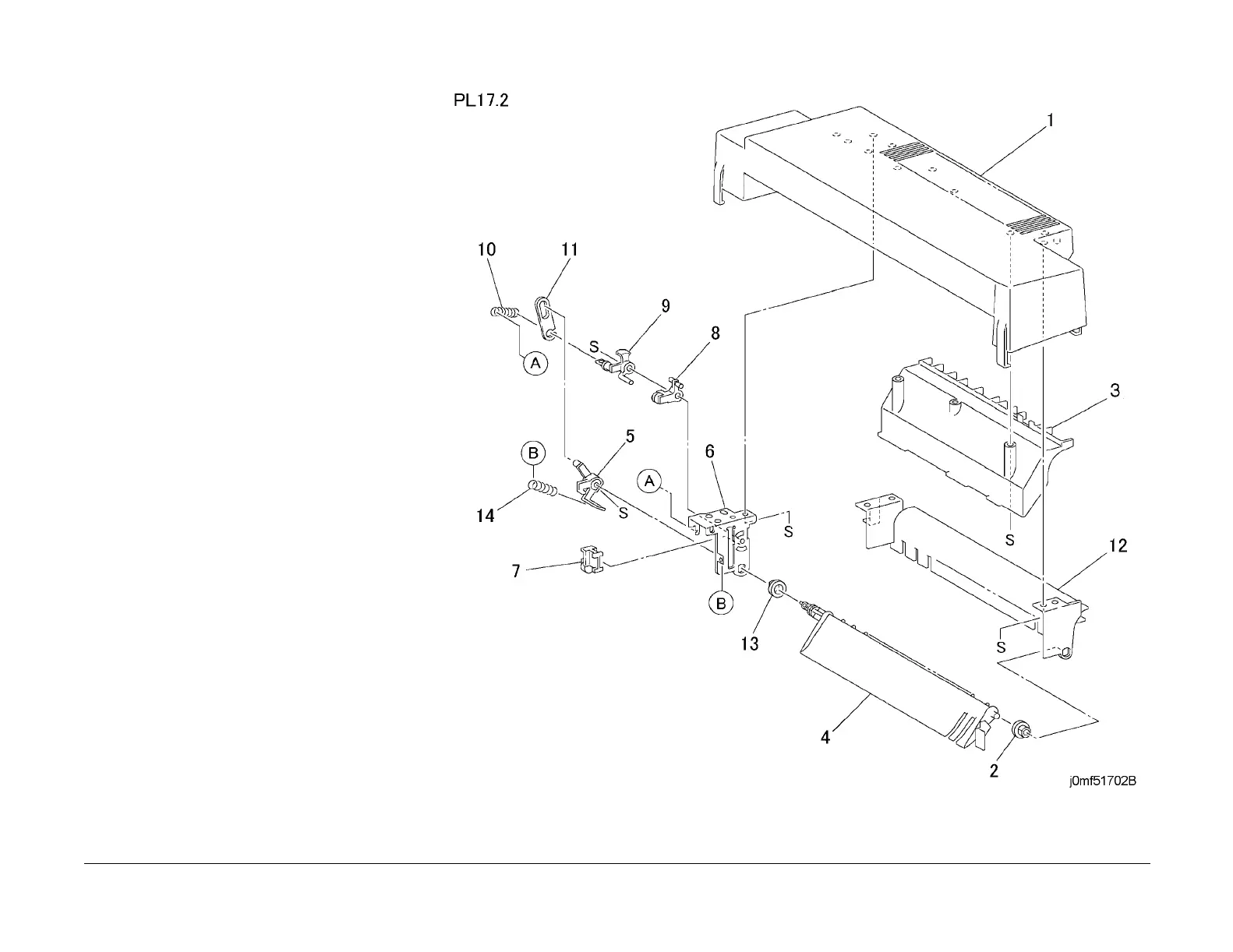

PL 17.2 Gate Assembly
Item Part Description
1 – Gate Cover (Not Spared)
2 – Bearing (Not Spared)
3 – Chute (Not Spared)
4 – In Gate (Not Spared)
5 – In Gate Lever (Not Spared)
6 – Gate Bracket (Not Spared)
7 – Link Assembly (Not Spared)
8 – Lever Assembly (Not Spared)
9 – Lever (Not Spared)
10 – Spring (Not Spared)
11 – Gate Link (Not Spared)
12 – Exit Chute (Not Spared)
13 – Bearing (Not Spared)
14 – Spring (Not Spared)
