Parts List

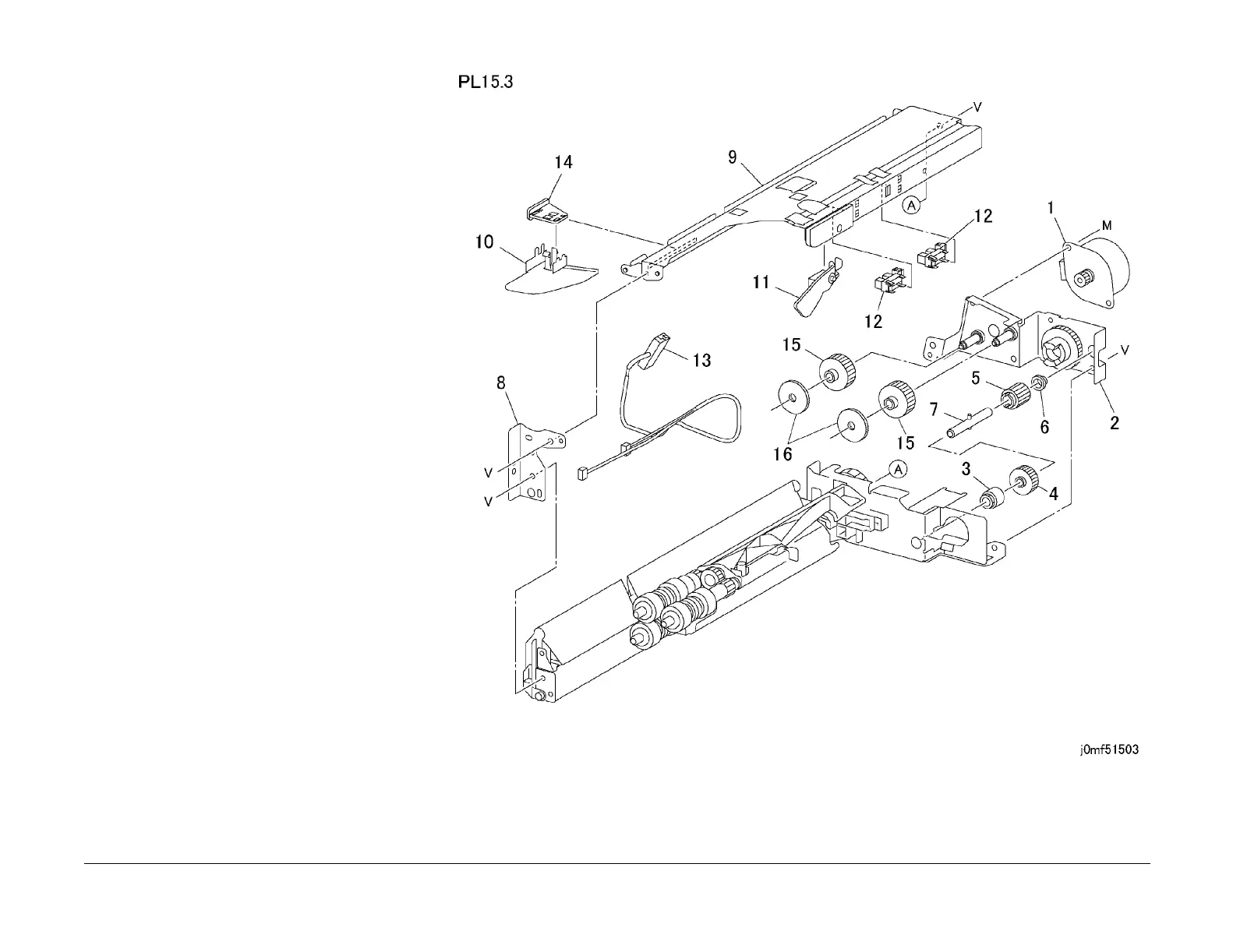

PL 15.3 Tray 2 Feeder: 1 of 2
Item Part Description
1 127K23230 Tray 2 Feed/Lift Motor (REP 7.4)
2 – Bracket (Not Spared)
3 005K83081 One-way Clutch
4 007K85730 One-way Gear
5 – Gear (13T) (Not Spared)
6 – Bearing (Not Spared)
7 – Shaft (Not Spared)
8 – Front Frame (Not Spared)
9 – Upper Frame (Not Spared)
10 – Front Chute (Not Spared)
11 120E18141 Actuator
12 130E82190 Tray 2 Level / No Paper Sensor
13 – Wire Harness (Not Spared)
14 – Support (Not Spared)
15 – Gear (15T) (Not Spared)
16 – Washer (Not Spared)
To Next Page
