09/03
4-3
DC 3535/2240/1632, WC M24
REP 1.1
Repairs and Adjustments
Initial issue
REP 1.1 LVPS Bracket
Parts List on PL 9.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
CAUTION
PWBs can be damaged by an electrostatic discharge. Observe all ESD procedures to avoid
component damage.
1. Remove Rear Cover (REP 14.2).
2. Remove the High Voltage Power Supply Chassis (REP 1.6).
3. Release 6 harness clips.
4. Remove the LVPS Bracket (Figure 1).
a. Disconnect harness connectors (4).
b. Loosen Lower screws (2).
c. Remove the upper screws (2) and remove the LVPS Bracket.

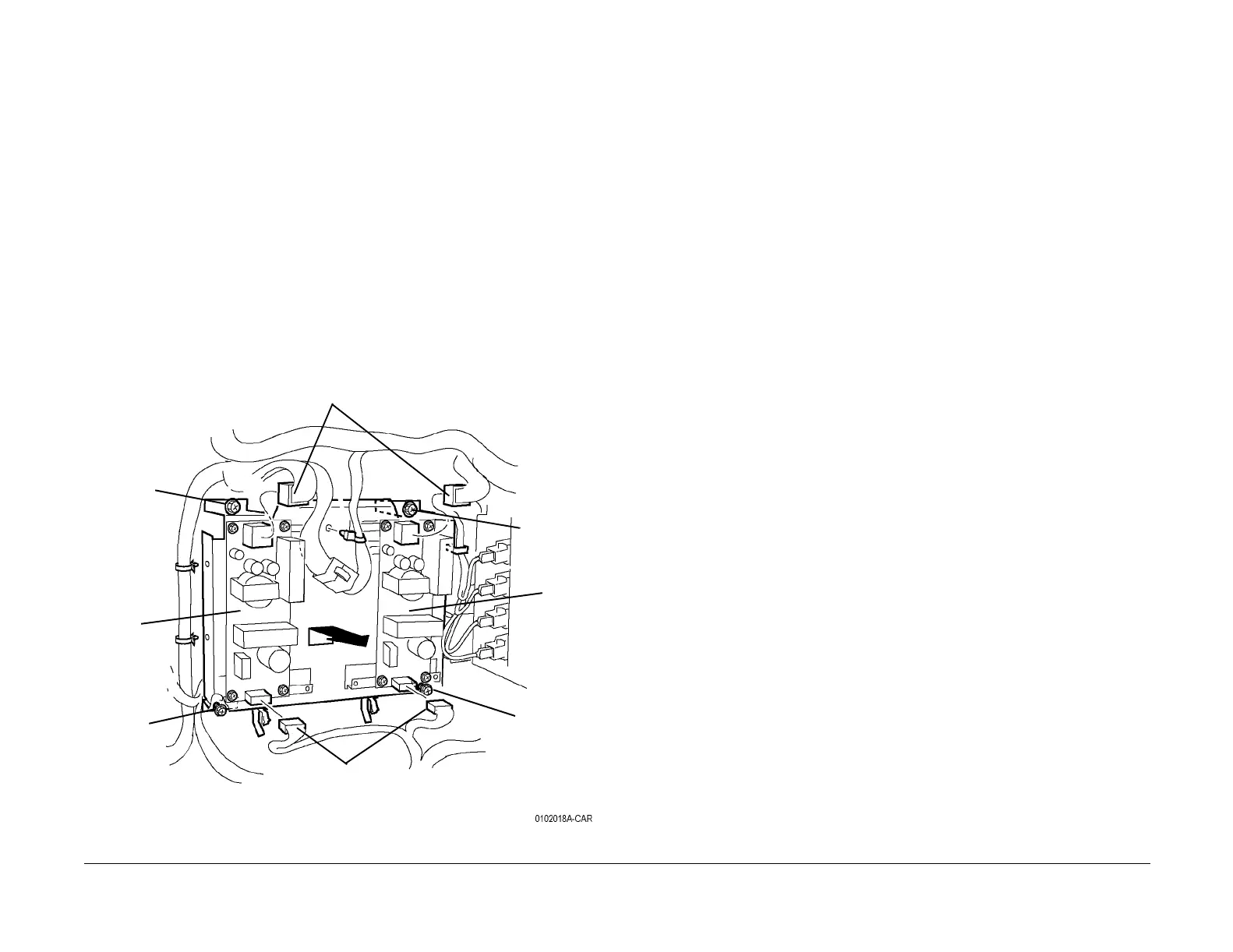

Figure 1 Removing the LVPS Bracket
Upper
Screw
Upper
Screw
Lower
Screw
Lower
Screw
3.3 VDC
LVPS
5 VDC
LVPS
Harness connectors
Harness connectors
To Next Page
