09/03
5-24
DC 3535/2240/1632, WC M24
PL 3.1
Initial issue
Parts List

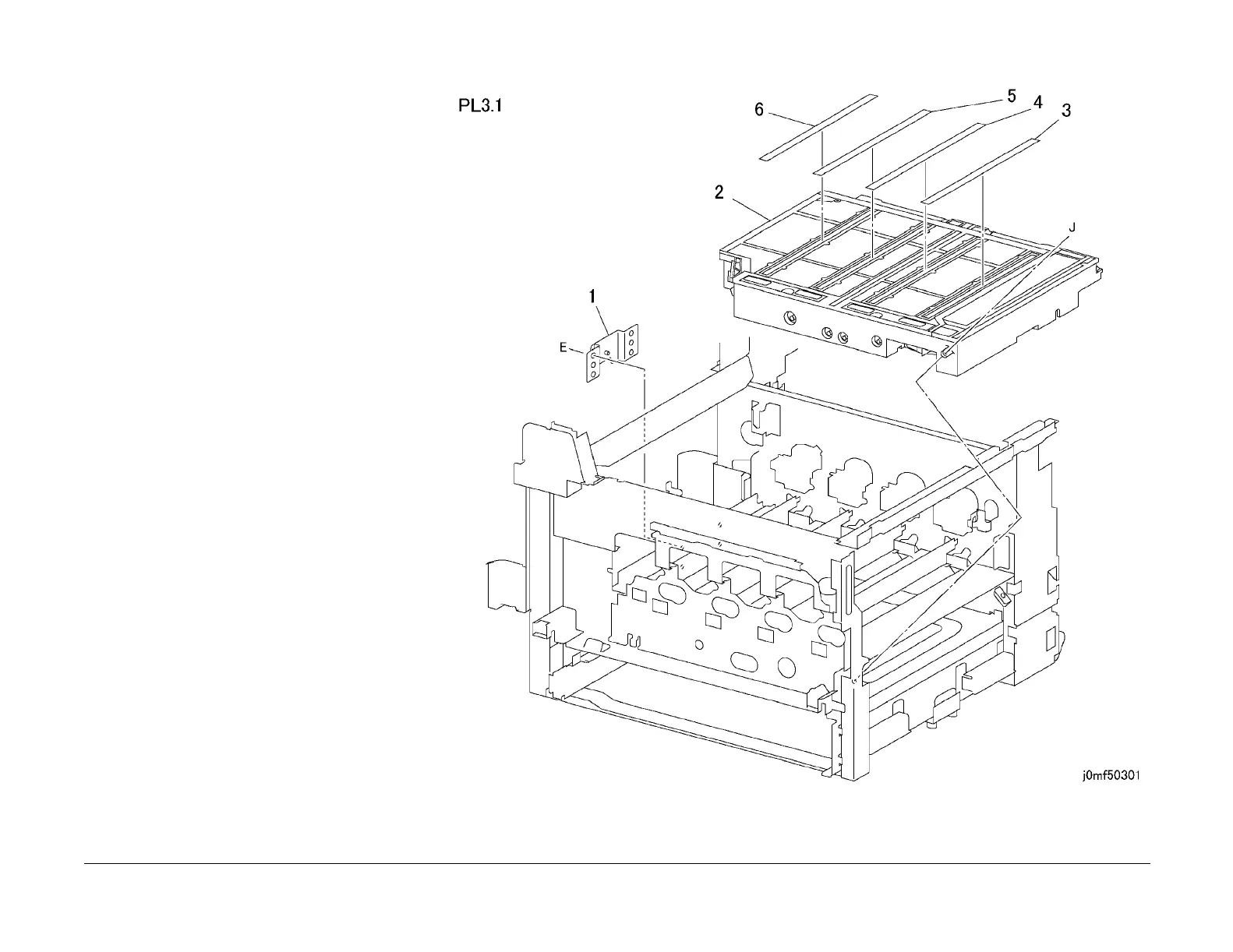

PL 3.1 ROS Assembly
Item Part Description
1 – Bracket (Not Spared)
2 062K10881 ROS (DC2240/1632/WC24) (REP
6.1,ADJ 9.6)
– 062K11421 ROS (DC3535) (REP 6.1,ADJ 9.6)
3 – Seal Glass (Y) (Not Spared)
4 – Seal Glass (M) (Not Spared)
5 – Seal Glass (C) (Not Spared)
6 – Seal Glass (K) (Not Spared)
