09/03
4-55
DC 3535/2240/1632, WC M24
REP 7.1
Repairs and Adjustments
Initial issue
REP 7.1 Tray 5
Parts List on PL 2.12
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Rear Cover (REP 14.2).
2. Remove the Rear Left Upper Cover (REP 14.5).
3. Remove the Rear Left Middle Cover (REP 14.4).
4. Close the Left Cover Assembly.
5. Remove Tray 5 (Figure 1).
a. Observe the position of harness for later reinstallation.
b. Disconnect Tray 5 connector.
c. Disconnect harness Clip from frame.
d. Remove Screws (2).
e. Pull out Tray 5 while applying a small amount of lifting force to right side.

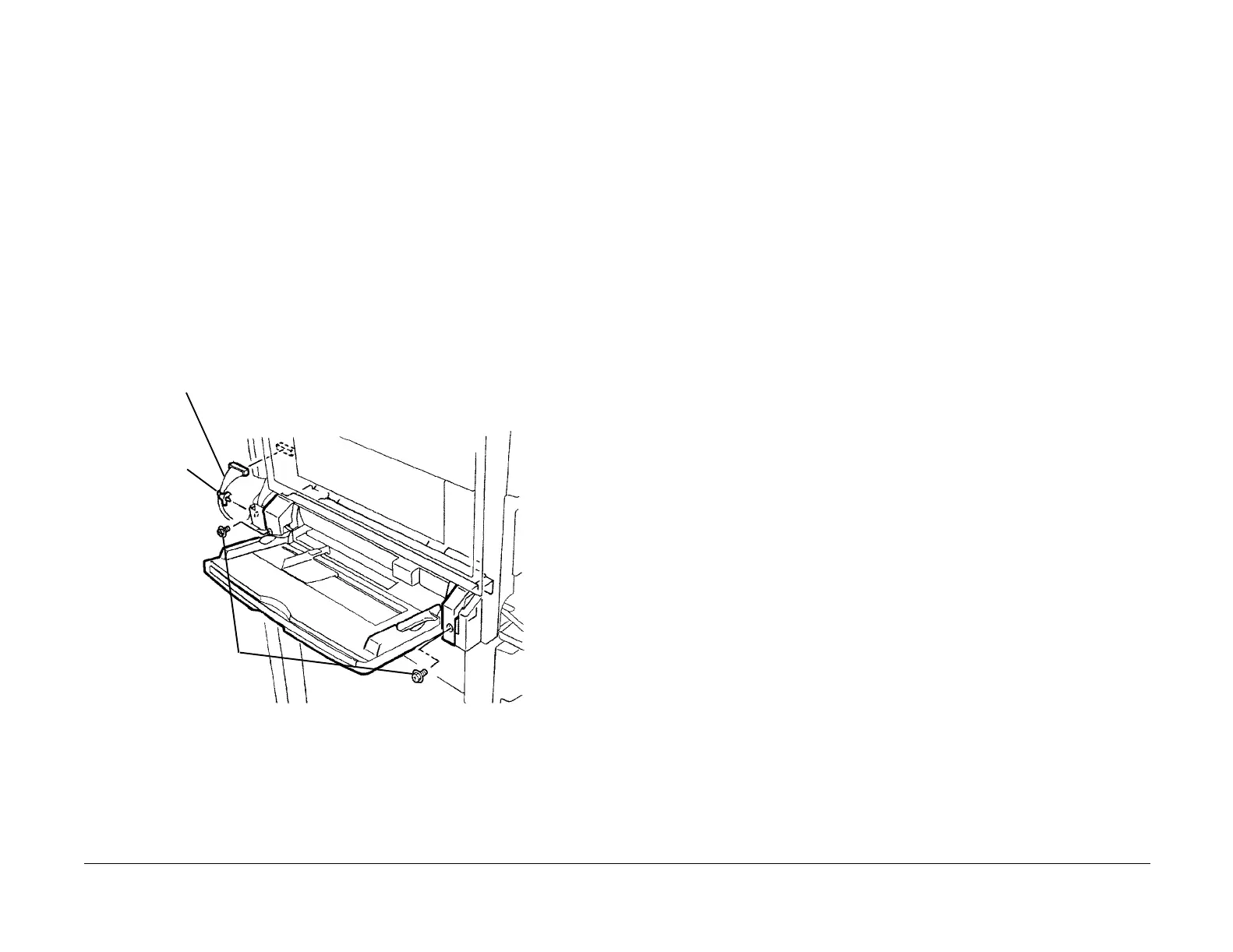

Figure 1 Removing Tray 5
Replacement
CAUTION
The Duplex Paper Guide must be in the up position before installing Tray 5.
1. Open the Left Cover Assembly. Pivot and hold the Duplex Paper Guide against the Left
Cover Assembly and then close the Left Cover Assembly.
2. Install Tray 5.
Harness
Clip
Screws (2)
To Next Page
