09/03
4-54
DC 3535/2240/1632, WC M24
REP 6.14
Initial issue
Repairs and Adjustments
6. Remove Lamp Wire Harness from Full Rate Carriage (Figure 3).
a. Turn the Full Rate Carriage upside down.

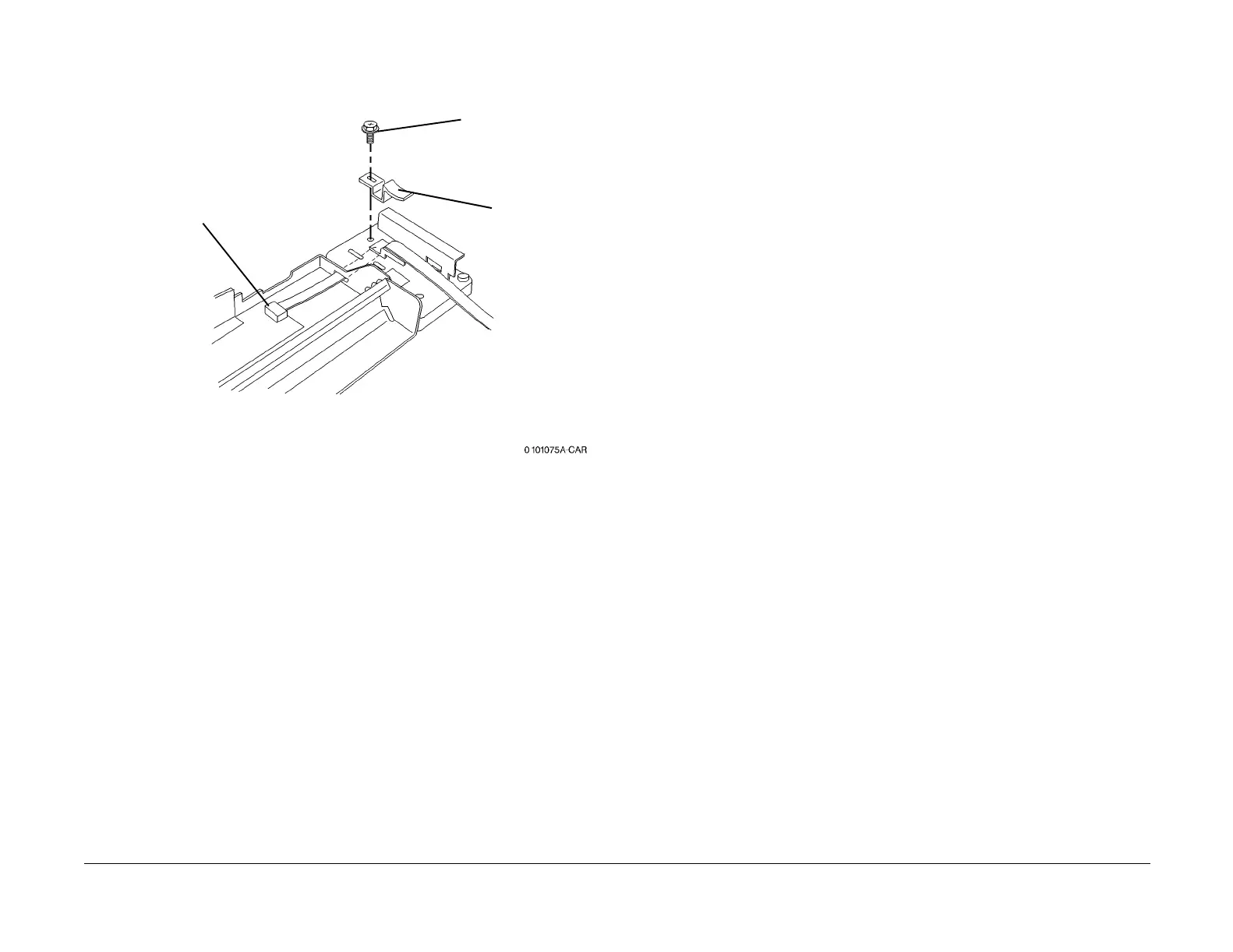

Figure 3 Removing Lamp Wire Harness
Replacement
After reinstalling parts, adjust positions of Full Rate/Half Rate Carriages (ADJ 6.1).
1
Disconnect
connector
2
Remove screw
3
Remove guide
and Lamp Wire
Harness
