REP 12.18 Cam Bracket Assembly
Parts List on PL 17.8
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Rear Cover (PL 17.5)
2. Position the Actuator (Figure 1).

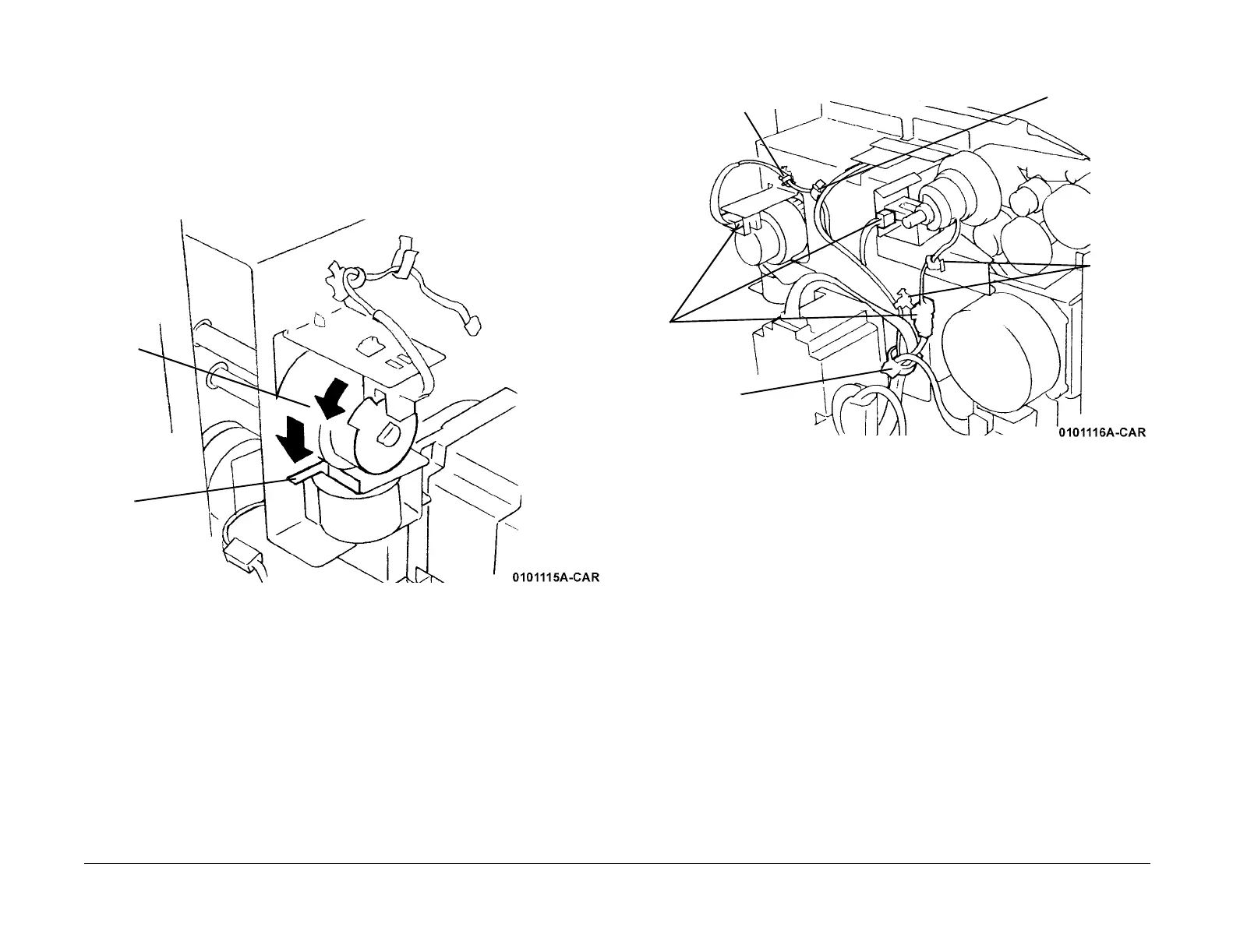

Figure 1 Rotating the Actuator
3. Release Harnesses (Figure 2).
Figure 2 Releasing Harnesses
1
Release
Solenoid
Pawl
2
Rotate
Cam 1/4
revolution
1
Disconnect
Connectors (3)
2
Remove Clamp
from Frame
4
Remove
Clamp
from
Frame
5
Remove wires
from Clip
3
Remove wires
from Clip
