Xerox DocuColor 2240 Service Manual

09/03
4-138
DC 3535/2240/1632, WC M24
REP 12.18
Initial issue
Repairs and Adjustments
4. Remove the Cam Bracket Assembly (Figure 3).

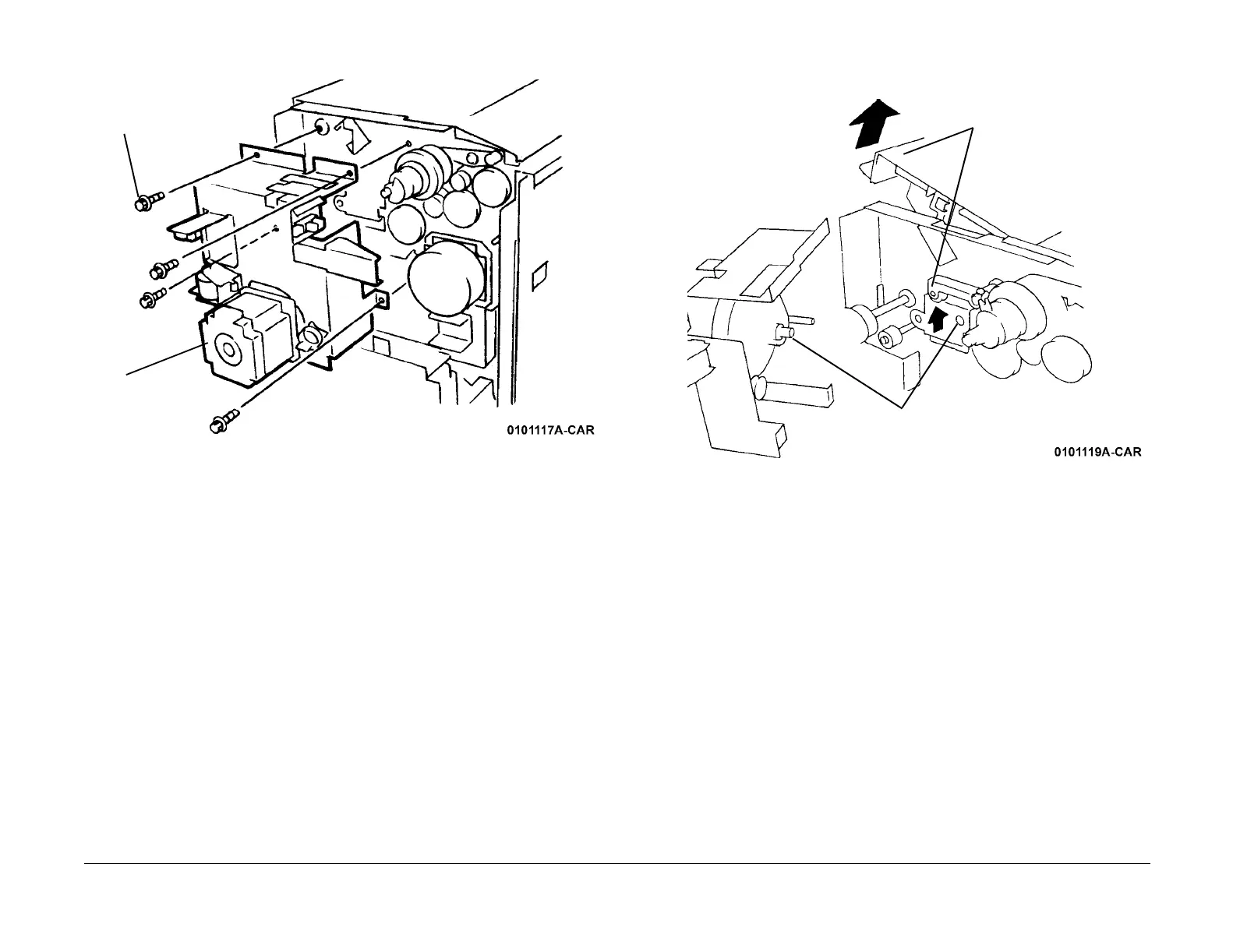

Figure 3 Removing the Cam Bracket Assembly
Replacement
1. Reinstall the Cam Bracket Assembly (Figure 4).
Figure 4 Inserting Axle of Cam Bracket Assembly into Hole
1
Remove
Screws (4)
2
Remove
Cam Bracket
Assembly
2
Align Axle
with Hole
1
Raise Top Cover to
raise Roller while
performing step 2
