09/03
4-39
DC 3535/2240/1632, WC M24
REP 5.19
Repairs and Adjustments
Initial issue
REP 5.19 Platen Belt
Parts List on PL 20.10
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Front Cover (PL 20.1).
2. Remove Document Transport (REP 5.17).
3. Remove Platen Belt (Figure 1).

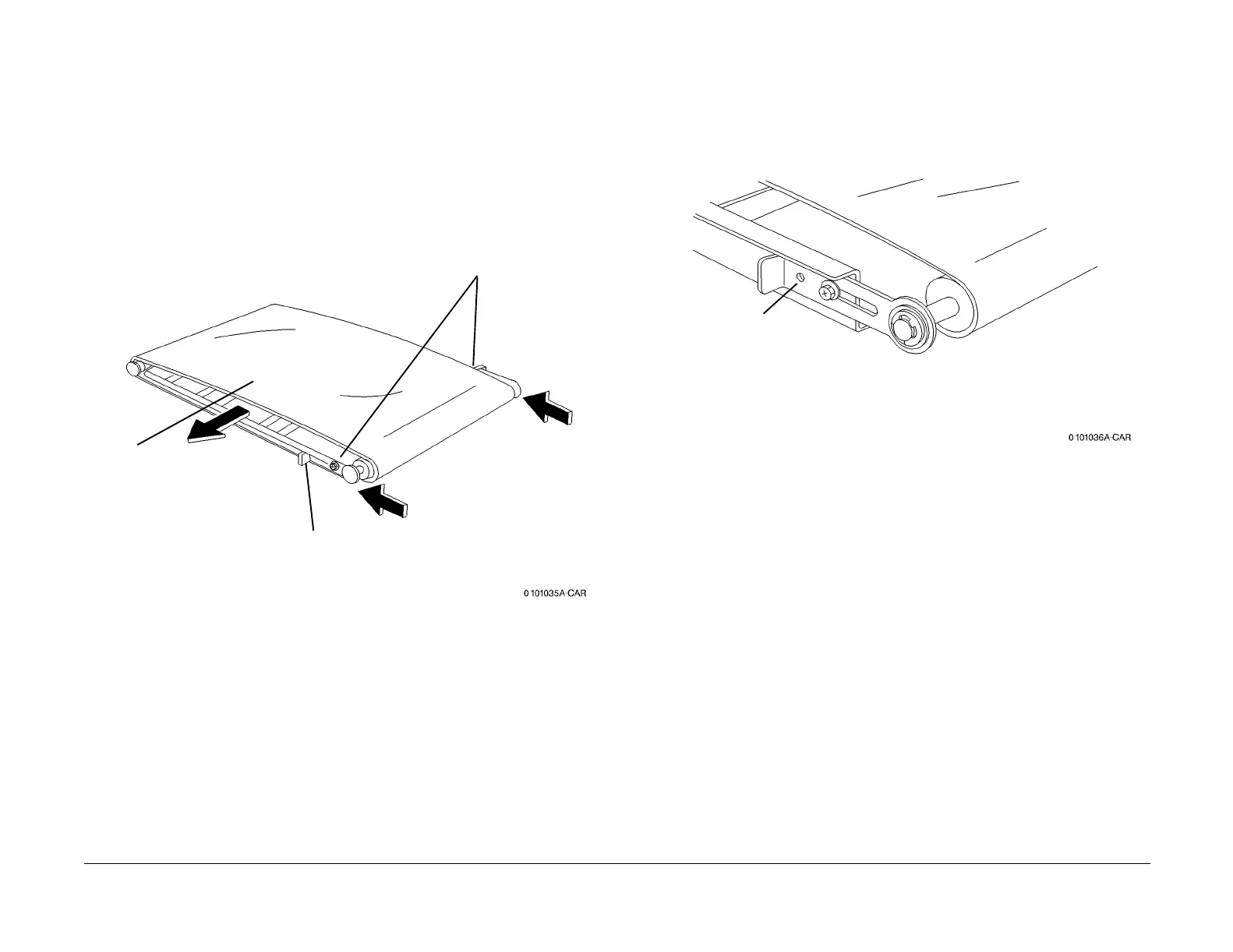

Figure 1 Removing Platen Belt
Replacement
1. Lock shaft support by matching hole with frame's detent (Figure 2).
Figure 2 Locking shaft support
2. Make sure that both sides of Platen Belt are correctly set in pulley (Figure 3).
1
Loosen screws (2)
2
Move shaft support in
direction of arrow
3
Remove Platen
Belt
Detent/Hole
To Next Page
