09/03
4-113
DC 3535/2240/1632, WC M24
REP 12.7
Repairs and Adjustments
Initial issue
REP 12.7 Decurler Roll
Parts List on PL 17.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the following parts:
a. Front Cover (PL 17.5)
b. Rear Cover (PL 17.5)
c. Top Cover (PL 17.5)

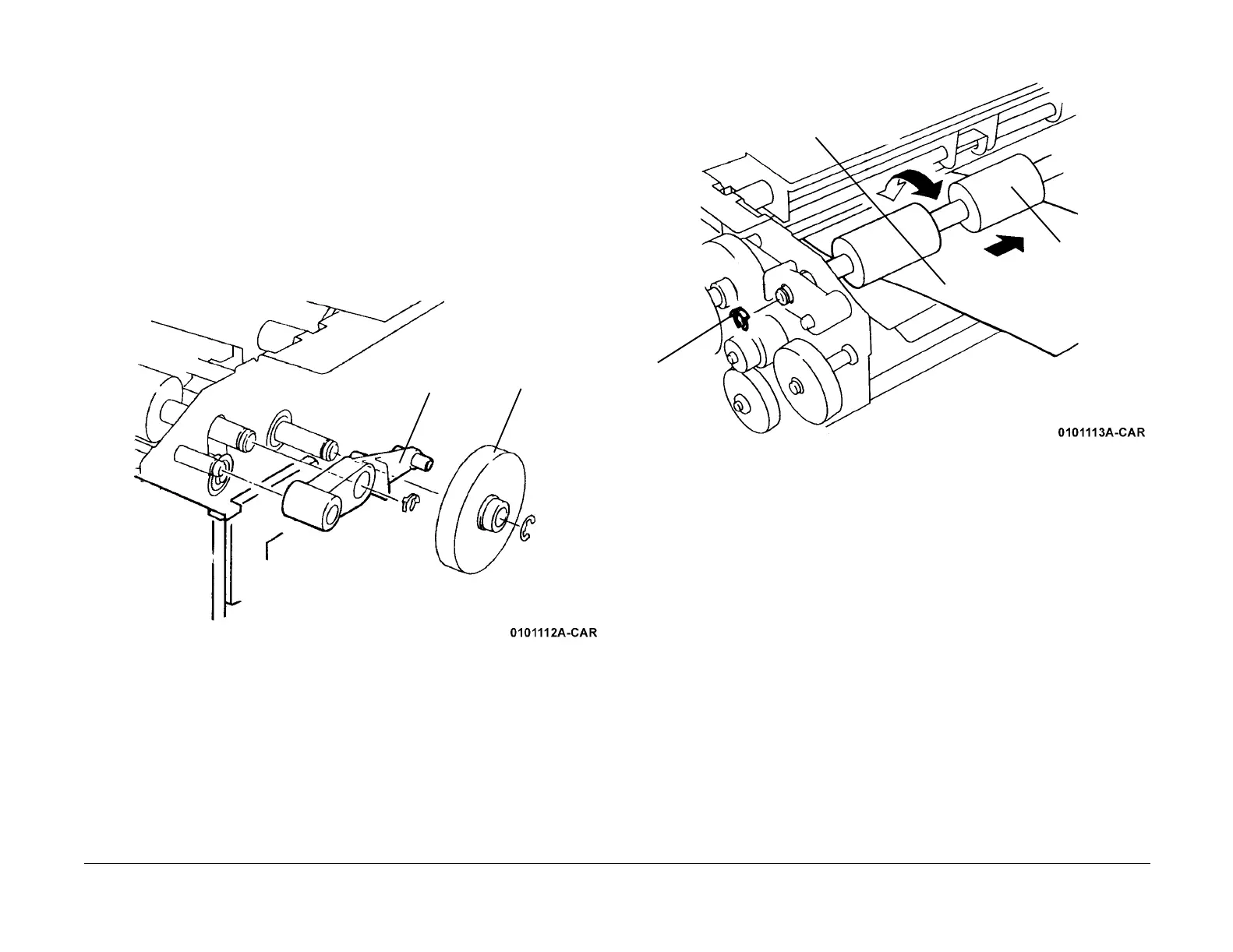

2. Remove the Arm (Figure 1).
Figure 1 Removing the Arm
3. Remove the Decurler Roll (Figure 2).
Figure 2 Removing the Decurler Roll
1
Remove
Clip and
Gear
2
Remove
Clip and
Arm
1
Remove Clip
2
Insert a sheet of paper to
keep rollers separated
3
Remove
Decurler Roll
To Next Page
