09/03
4-74
DC 3535/2240/1632, WC M24
REP 8.7
Initial issue
Repairs and Adjustments
REP 8.7 Exit Transport Assembly
Parts List on PL 2.11
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Cover (REP 14.8).
3. Remove Rear Cover (REP 14.2).
4. Remove Rear Left Upper Cover (REP 14.5).
5. Remove Exit Transport (Figure 1).
a. Disconnect connectors (2).
b. Remove Screws (3)
c. Rotate Exit Transport slightly to disengage Tab and then lift to remove Exit Trans-
port.

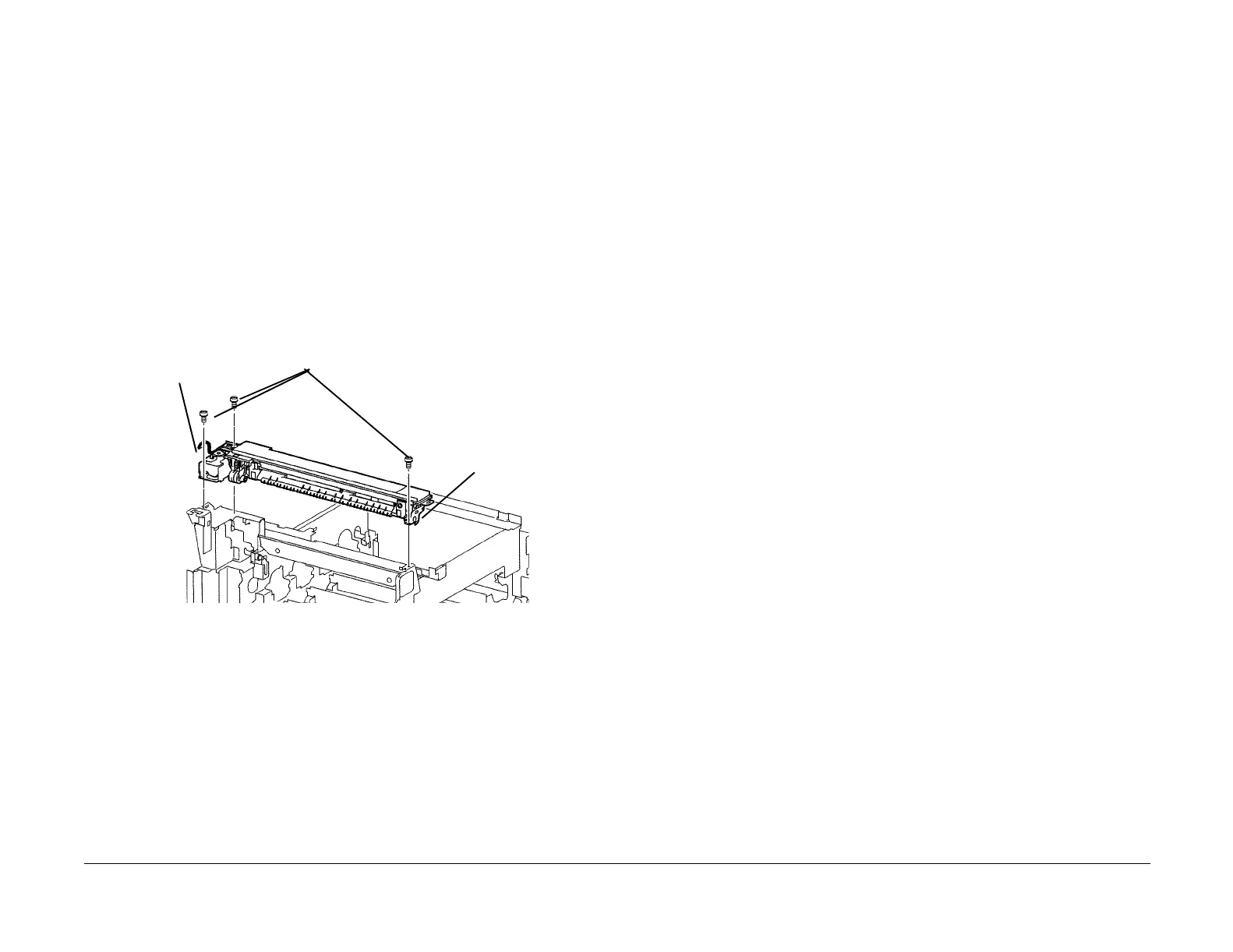

Figure 1 Removing Exit Transport
Connectors
(2)
Screws (3)
Tab
To Next Page
