Xerox DocuColor 2240 Service Manual

09/03
4-98
DC 3535/2240/1632, WC M24
REP 9.25, REP 9.26
Initial issue
Repairs and Adjustments
REP 9.25 Erase Lamp/Rail (K,Y,M,C)
Parts List on PL 4.2
Replacement
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Dispenser Cover (REP 9.6).
2. Raise the Lever.

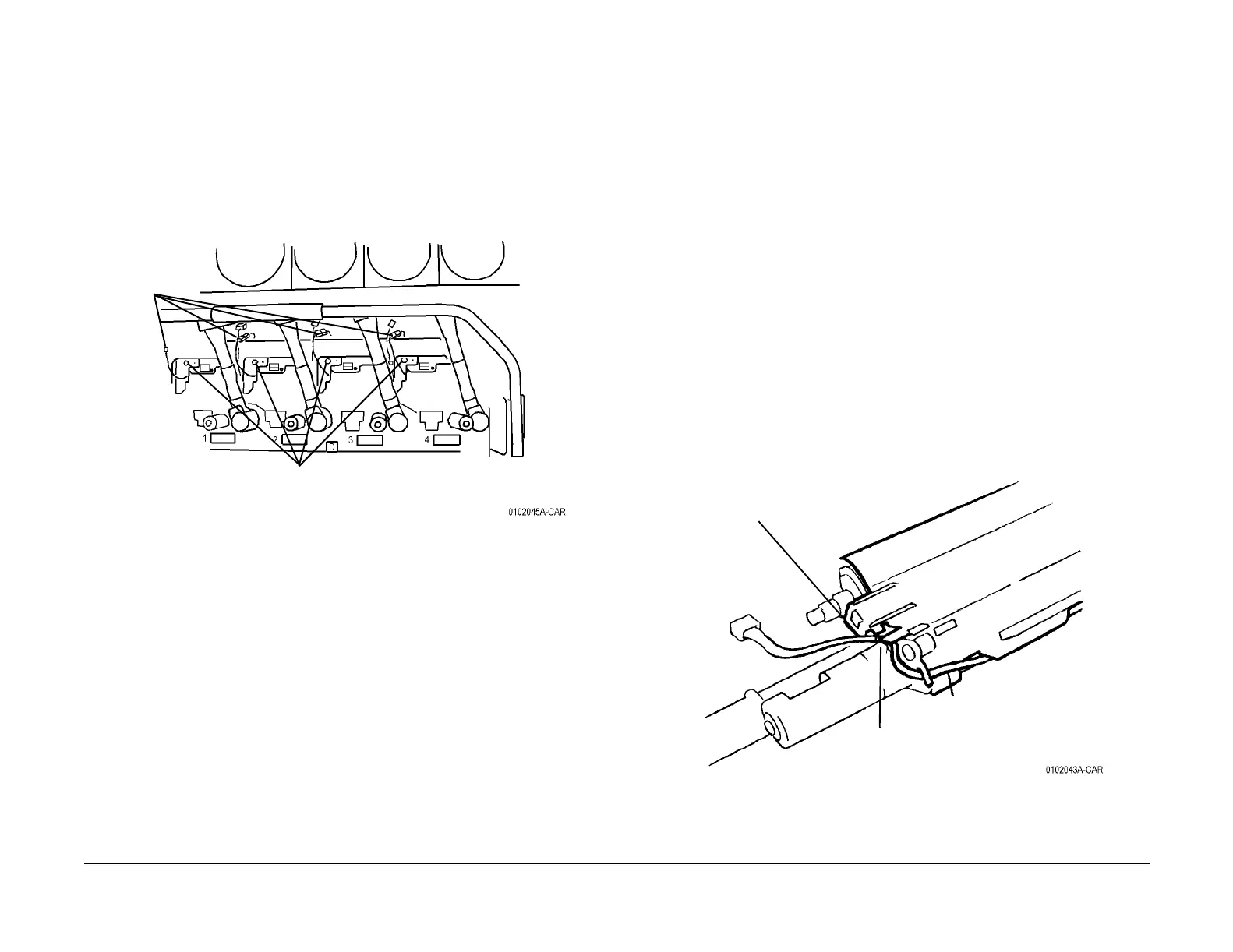

3. Remove the Bracket and Erase Lamp/Rail (Figure 1).
Figure 1 Removing the Erase Lam/Rail
REP 9.26 ATC Sensor
Parts List on PL 6.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Front Cover (REP 14.7).
2. Remove the Drum Cartridges (REP 9.1).
3. Remove the Waste Toner Cartridge (REP 9.4).
4. Remove the Waste Toner Cartridge Cover (REP 9.3).
5. Remove the Fuser Cover (REP 14.8).
6. Remove the Dispenser Cover (REP 9.6).
7. Remove all Toner Dispensers (REP 9.7).
NOTE: In next step, do not remove sensor.
8. Remove the housing for the Full Toner Sensor (REP 9.5).
NOTE: In next step, it may not be necessary to disconnect harnesses for Plate Assembly (PL
4.2) to remove a developer housing.
9. Remove Plate Assembly (REP 9.8).
10. Remove Developer Housing (REP 9.9).
11. Release Harness from Harness Clips (Figure 1).
Figure 1 Removing Harness from Clips
2
Remove screw (1), Bracket
and Erase Lamp/Rail
1
Disconnect
connector
2
Release Tab and
remove wires
3
Lift Tab and remove wires
1
Carefully note the
position of wires
