09/03
4-34
DC 3535/2240/1632, WC M24
REP 5.14
Initial issue
Repairs and Adjustments
REP 5.14 Duplex Sensor
Parts List on PL 20.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove following:
a. Front Cover (PL 20.1).
b. Rear Cover (REP 5.18).
c. Top Cover (PL 20.2).
2. Remove Feed Motor (REP 5.5).
3. Remove Duplex Sensor (Figure 1).
a. Remove screws (2).
b. Lift Duplex Chute to disengage lower mounts.
c. Lift rear end of Duplex Chute so that Duplex Sensor is visible. Harness remains
connected.
d. Remove screw and remove Duplex Sensor.

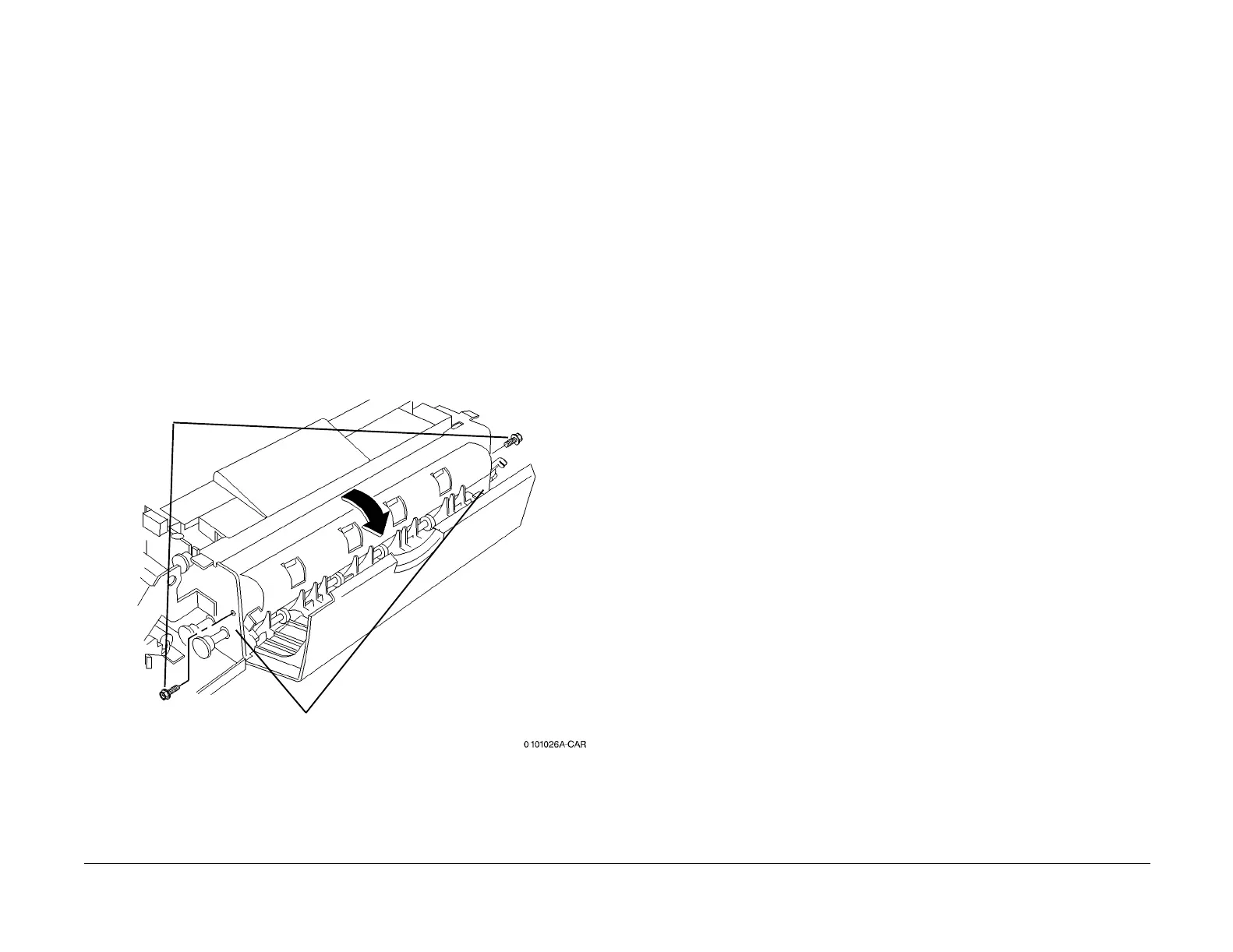

Figure 1 Removing Duplex Sensor
Screws (2)
Lower Mounts
To Next Page
