09/03
4-144
DC 3535/2240/1632, WC M24
REP 14.2, REP 14.3
Initial issue
Repairs and Adjustments
REP 14.2 Rear Cover (IOT)
Parts List on PL 10.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (Figure 1).
a. Open Harness Cover and disconnect Harnesses
b. Remove Screws (4).
c. Remove Rear Cover.

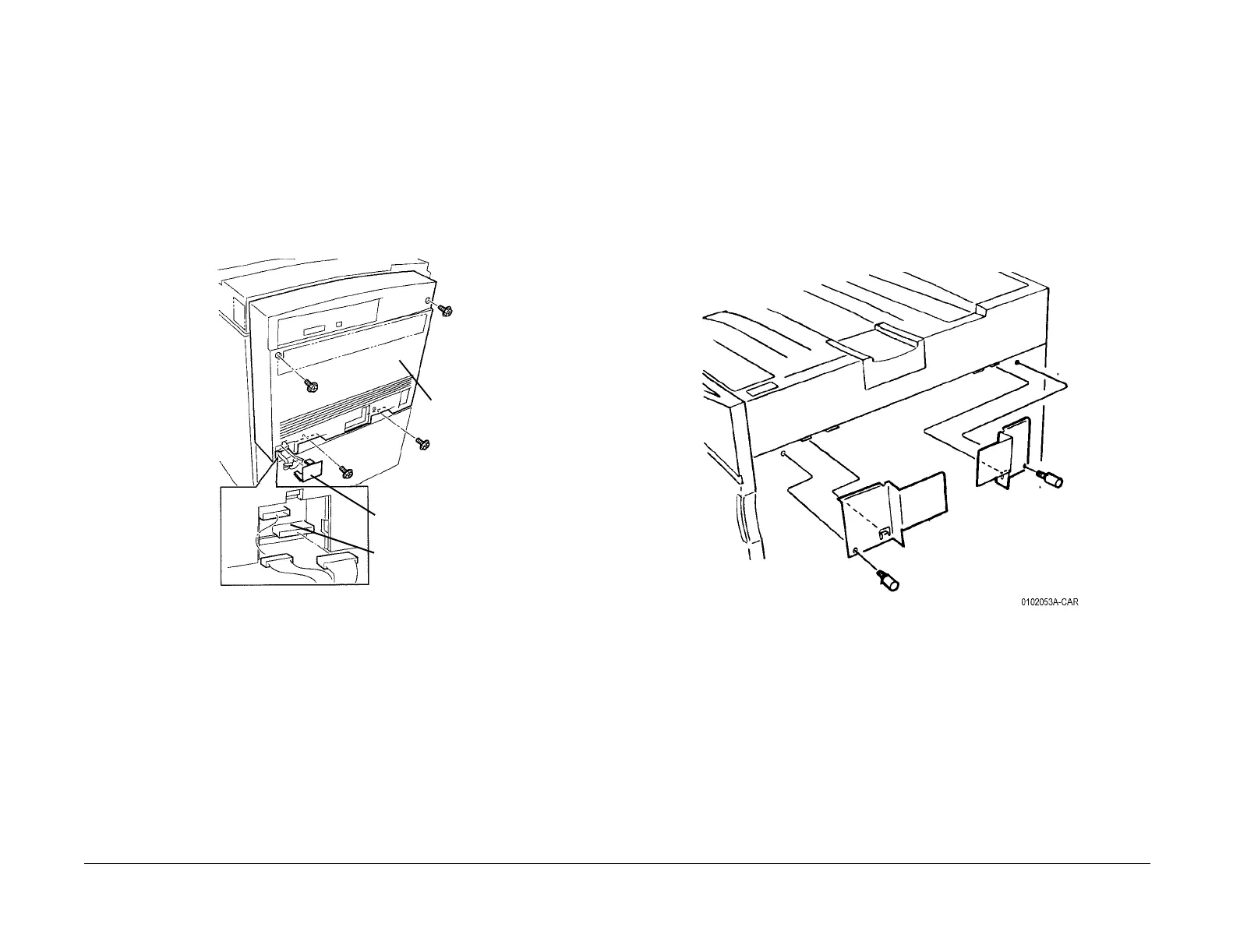

Figure 1 Removing Rear Cover (IOT)
REP 14.3 Right Cover
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Without Finisher, go to step 4.
With Finisher, Remove Finisher (REP 12.4) and remove Finisher Rack Assembly (REP
12.19).
3. Remove the Front and Rear Brackets (Figure 1).
Figure 1 Front and Rear Brackets
4. Remove Right Cover (Figure 2).
a. Open Right Door.
b. Remove Screws (3).
c. Push cover down, or allow cover to drop slightly to release Hidden Tabs, then pull
cover away and remove it.
Harness Cover
Harnesses
Screws (4)
Rear
Cover
To Next Page
