Xerox DocuColor 2240 Service Manual

09/03
4-72
DC 3535/2240/1632, WC M24
REP 8.3, REP 8.5
Initial issue
Repairs and Adjustments
REP 8.3 Duplex Transport Assembly
Parts List on PL 12.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Duplex Transport Assembly (Figure 1).
a. Remove Clip and Left Upper Cover.
b. Loosen Screws and remove Duplex Transport Assembly.

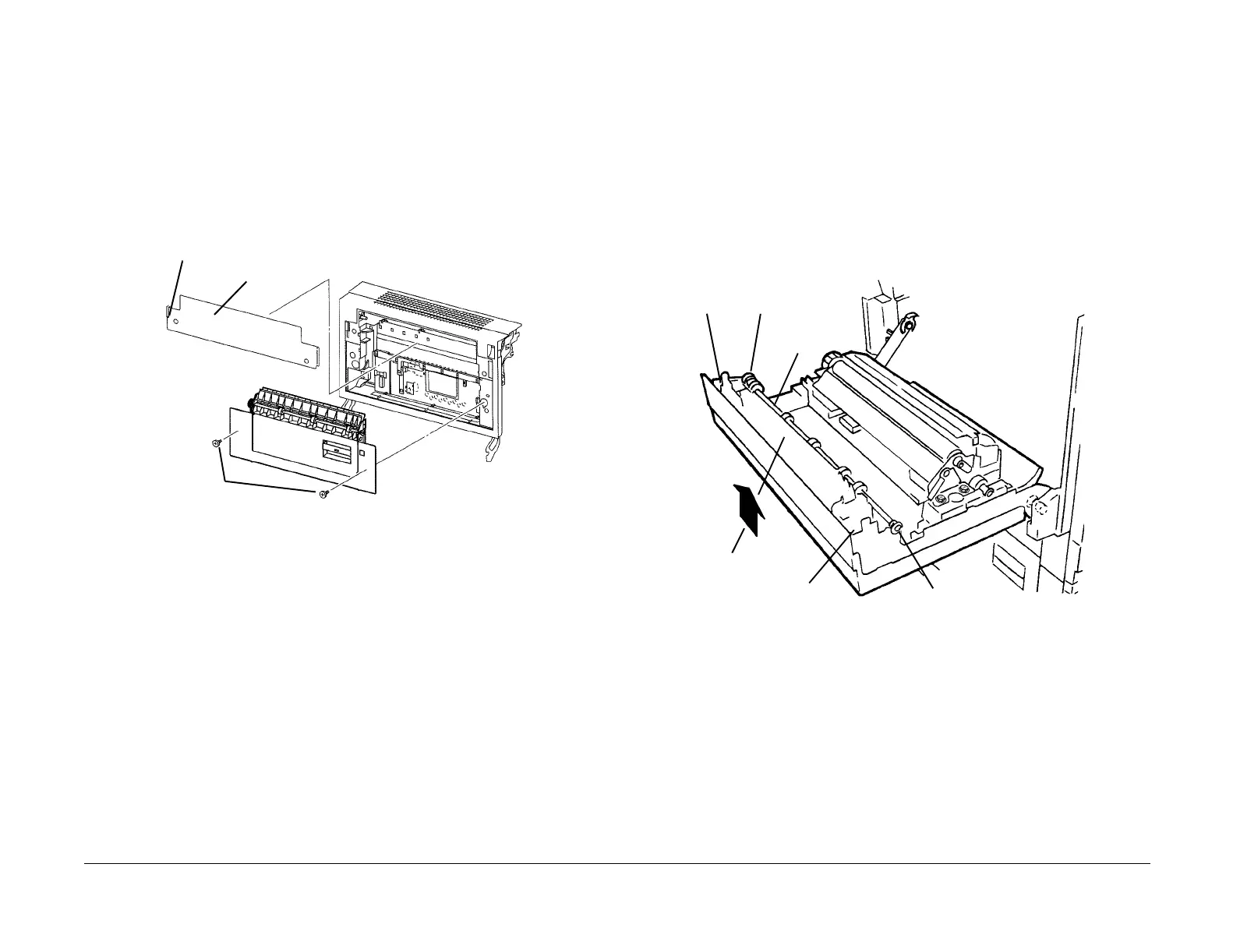

Figure 1 Removing Duplex Transport Assembly
REP 8.5 Inverter Transport
Parts List on PL 11.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Left Cover Assembly.
2. Remove Inverter Transport (Figure 1).
a. Remove E-rings (2), Bearings (2), and Transport Shaft.
b. Remove Screws (2).
c. Remove Inverter Transport.
Figure 1 Removing Inverter Transport
Screws
(2)
Le
f
t Upper
Cover
Clip
Screw
(1)
Screw
(1)
Inverter
Transport
E-Ring and
Bearing
E-Ring and
Bearing
Transport
Shaft
