09/03
4-28
DC 3535/2240/1632, WC M24
REP 5.7
Initial issue
Repairs and Adjustments
REP 5.7 Feed Roll Assembly
Parts List on PL 20.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.

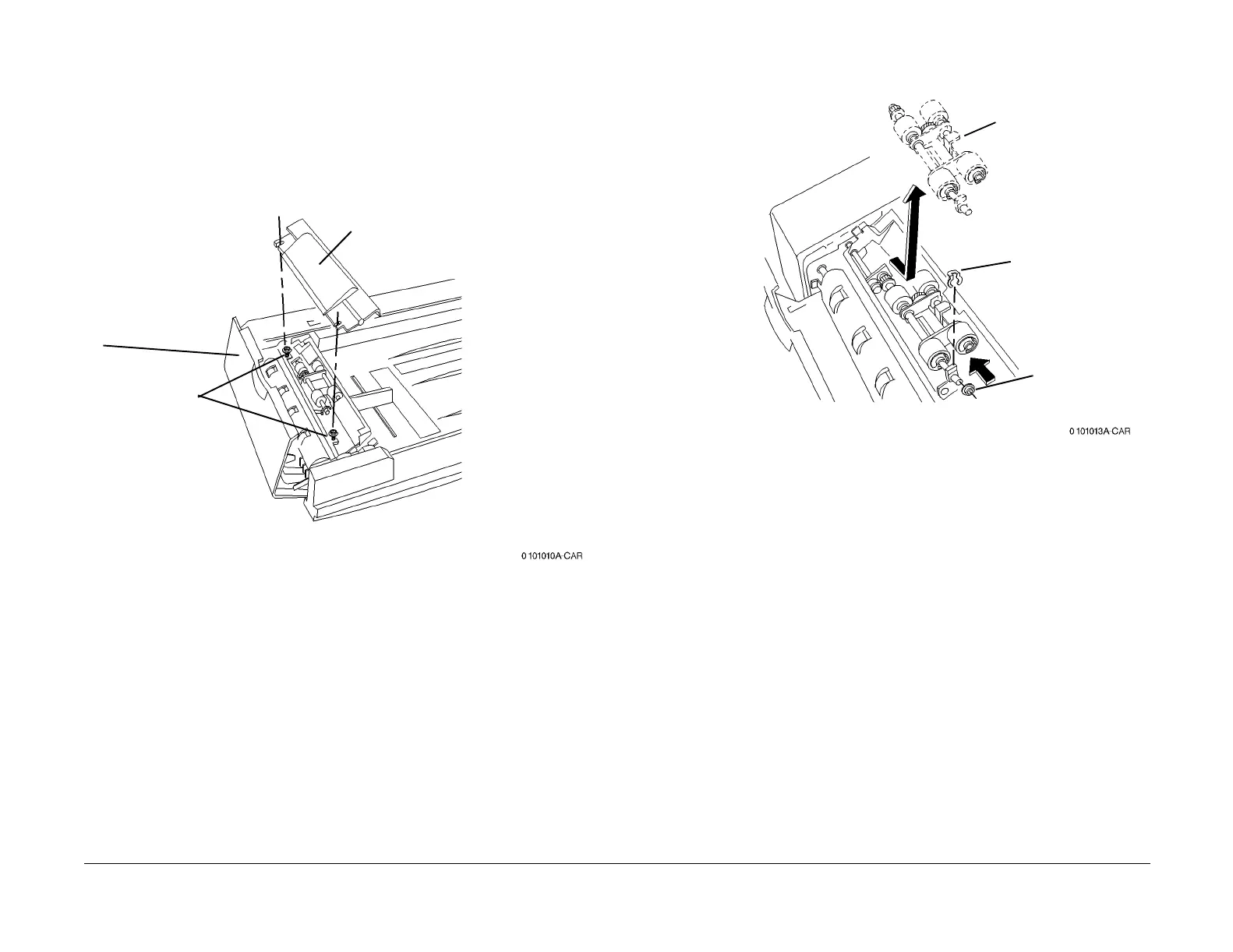

1. Remove Inner Cover (Figure 1).
Figure 1 Removing Inner Cover
2. Remove Feed Roll Assembly (Figure 2).
Figure 2 Removing Feed Roll Assembly
Replacement
Ensure Feed Rolls rotate freely in direction of document movement.
1
Open Top Cover
2
Loosen
screws
3
Remove Inner Cover
1
Remove clip
2
Slide bearing
3
Remove Feed Roll
Assembly
To Next Page
