09/03
4-143
DC 3535/2240/1632, WC M24
REP 14.1
Repairs and Adjustments
Initial issue
REP 14.1 Top Cover
Parts List on PL 10.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Without Finisher, go to step 6.
With Finisher, go to step 2.
2. Remove Finisher H Transport (REP 12.1).
3. Remove Finisher (REP 12.4).
4. Remove Finisher Rack Assembly (REP 12.19).

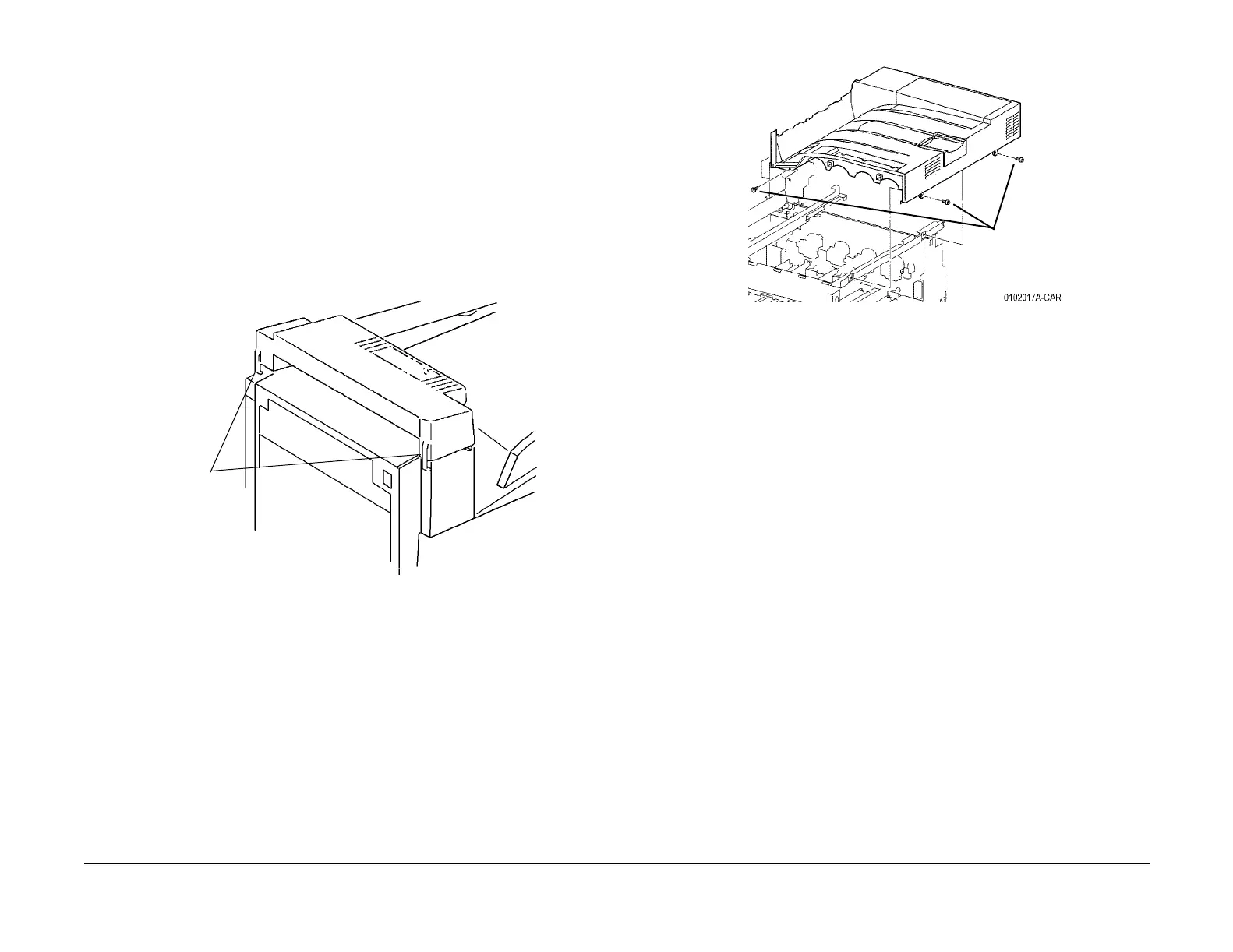

5. Remove Gate Cover (Figure 1).
Figure 1 Removing Gate Cover
6. Remove Right Cover (REP 14.3).
7. Remove Top Cover (Figure 2).
a. Open Front Cover.
b. Remove Screws (3).
c. Remove Top Cover.
Figure 2 Removing Top Cover
Release
Clips (2)
and
Remove
Gate
Cover
Screws (3)
To Next Page
