09/03
5-12
DC 3535/2240/1632, WC M24
PL 2.3
Initial issue
Parts List

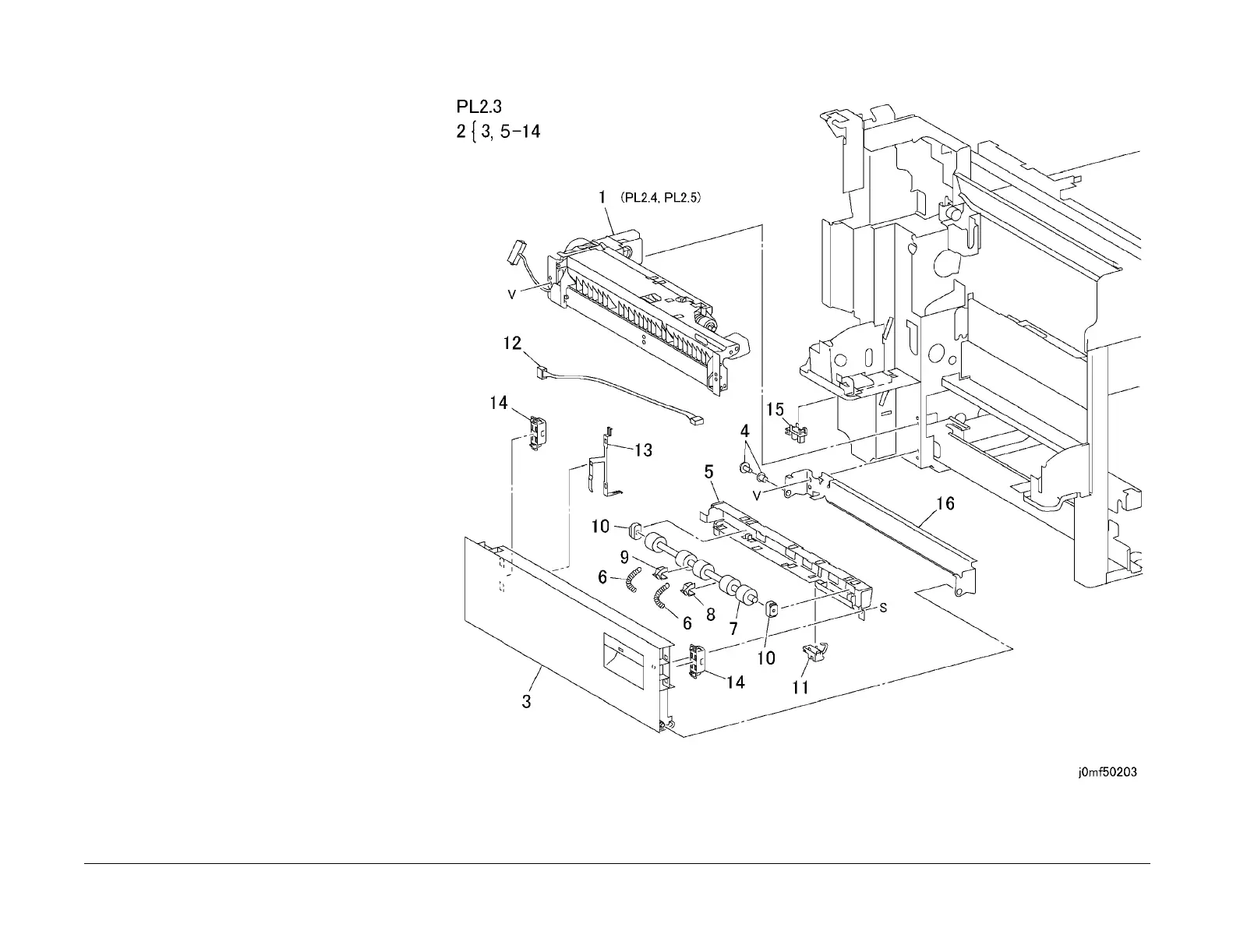

PL 2.3 Tray 1 Feeder and Left Lower
Cover Assembly
Item Part Description
1 059K15573 Tray 1 Feeder (REP 7.3)
2 802K13193 Left Lower Cover Assembly (REP
14.6)
3 – Left Lower Cover (P/O PL 2.3 Item
2)
4 029E31600 Rivet
5 – Bracket (P/O PL 2.3 Item 2)
6 – Spring (P/O PL 2.3 Item 2)
7 – Pinch Roll (P/O PL 2.3 Item 2)
8 – Bearing (P/O PL 2.3 Item 2)
9 – Bearing (P/O PL 2.3 Item 2)
10 – Bearing (P/O PL 2.3 Item 2)
11 130K60851 Tray 1 Feedout Sensor
12 – Wire Harness (P/O PL 2.3 Item 2)
13 – Ground Plate (P/O PL 2.3 Item 2)
14 – Magnet (P/O PL 2.3 Item 2)
15 130E82190 LH Lower Cover Interlock Switch
16 – Bracket (Not Spared)
To Next Page
